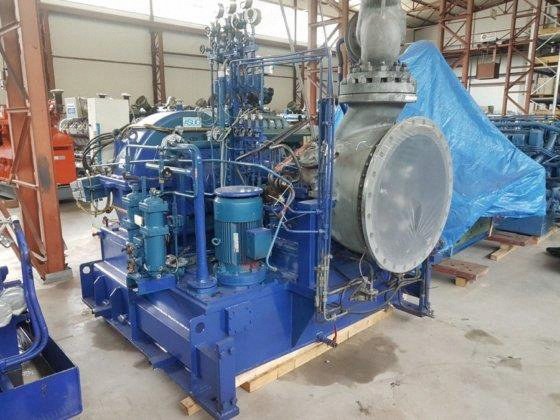

Siemens, AFA 6, 1997, 3000 kW, 20 Bar, Condensing Steam Turbine

Description

Overview
1. Category: Turbines
2. Subcategory: Used steam turbines
3. Weight: 25 tons
4. Measurements: 4500 mm w x 8800 mm l x 3300 mm h
5. The turbine has only 19200 running hours after a major overhaul in 2005
6. The turbine was reduced in power by Siemens from 4.4 mw down to 3 mw in 2005
Specifications
1. Electrical power: 3000 kw
2. Thermal power: 19490 kw
3. Steam flow: max 32 t/h
4. Steam consumption: 23.1 t/h at 3 mw
5. Steam inlet pressure: 21.5 bar gauge
6. Inlet steam temperature: 275 °c
7. Exhaust steam pressure: 0.23 bar gauge
8. Condensing pressure: 0.23 bar gauge
9. Cooling water flow: 1200 m³/h
10. Heat exchanger surface: 274 m²
11. Turning speed turbine/generator r/min: 11543 / 1500
Generator
1. Generator end: Leroy Somer LSA 56 BL7-4P, 5200 kva, 50 hz, 10 kv
2. Alternators with other voltages are also available on request
Condenser
1. Vacuum condenser, water cooled: Serck Como
Condition and Overhaul
1. Year of major overhaul: 2005
2. The turbine has only 19200 running hours after a major overhaul in 2005
3. The turbine was reduced in power by Siemens from 4.4 mw down to 3 mw in 2005
Scope of Supply
1. The scope of supply is absolutely complete: turbine, generator, water cooled vacuum condenser, canopy, panel boards for lv, the 10 kv-system and everything else
2. The turbine with all its accessories fits in two trucks or two 40-ft-ot-containers
3. Only the vacuum condenser needs one extra flat rack

HS code	8406.82

Capacity	3000 kW
Condensing Pressure	0.23 bar gauge
Heat Exchanger Surface	274 m²
Running Hours After Overhaul	19,200
Vacuum Condenser	Serck Como

Steam Inlet Pressure	21.5 BAR G
Voltage	10,000 V
