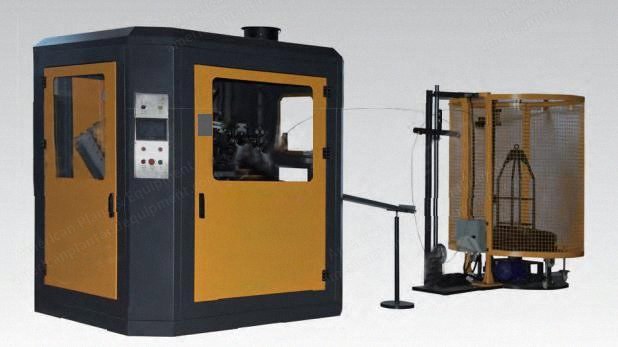

NovaStar, SB260, Automatic Spring Coiler, Assembler and Wire Straightener Line, 80 Coils/Min, 2000mm Max Width (New)

NovaStar, SB260, Automatic Spring Coiler, Assembler and Wire Straightener Line, 80 Coils/Min, 2000mm Max Width

Description

  1. Item 001: Digital Control Automatic Coiler
    1. Overview: Digital control automatic coiler is totally digital controlled to produce spring with advanced controlling software. You can adjust spring diameter, spring height, number of turns and feeding wire length. Cancel the traditional cam group. Can produce different specification spring more conveniently and adjust the spring shape precisely, so high quality required spring can.
    2. Technical Data:
      1. Coil type: Bonnell
      2. Output: 80 pcs/min
      3. Steel wire diameter: 1.9 to 2.4 mm
      4. Coil outside diameter: 62 to 95 mm
      5. Spring height: 80 to 190 mm
      6. Spring coils (turn): 4 to 7
      7. Main driver power: 5.3 kW
      8. Swift frame power: 2.2 kW
      9. Heat treatment: 15 kVA
      10. Power requirements: 3xAC380/50-60 Hz (or as per client)
      11. Weight: 2650 kg
  2. Item 002: Automatic Spring Units Assembler
    1. Overview: Features: It can account the spring rows automatically. It can pull out the inner-spring units automatically after finishing the enactment of the rows. The spring rows can be enacted by the computer. Economy: The machine operates without compressed air. Maintenance and spare parts wear is kept to a minimum. Production speed can be adapted to the quality of wire. High flexibility: The assembly machine produces various types of spring units using springs with different diameter, wire thickness and height. The number of lines can be varied without moving the unused holdfasts. Quality: The helix closing rings on both ends are very near to the springs, extremely precise. Electronic controlled helix stop guarantees a perfect closing.
    2. Technical Data:
      1. Output: 24000 springs/8 hours (depends on the operator)
      2. Coil type: Bonnell
      3. Steel wire diameter: 1.9 to 2.4 mm
      4. Spring height: 80 to 190 mm
      5. Helical wire diameter: 1.3 to 1.5 mm
      6. Max spring unit width: 2000 mm
      7. Total power: 4 kW
      8. Power requirement: 3xAC380/50-60 Hz
      9. Weight: 980 kg
  3. Item 003: Wire Straight Machine
    1. Overview: The machine is mainly used for straightening all kinds of coil wire of cold drawing wires and other nonferrous metal wire.
    2. Technical Data:
      1. Diameter of straightenable wire: 3.5 to 6 mm
      2. Straightening speed: 25 m/min
      3. Cutting type: Mechanism cutting
      4. Available length for cutting: 80 to 8000 mm (can be customized)
      5. Motor power: 3 kW
      6. Cutting motor power: 3 kW
      7. Power: 480 V, 3P, 60 Hz
