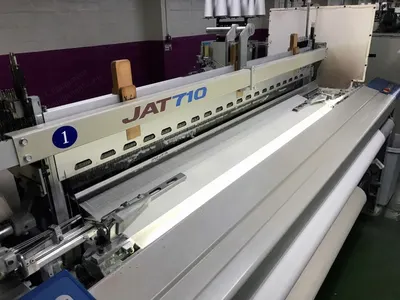

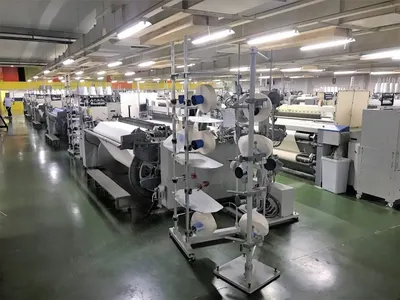

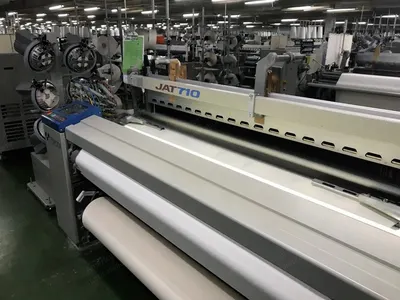

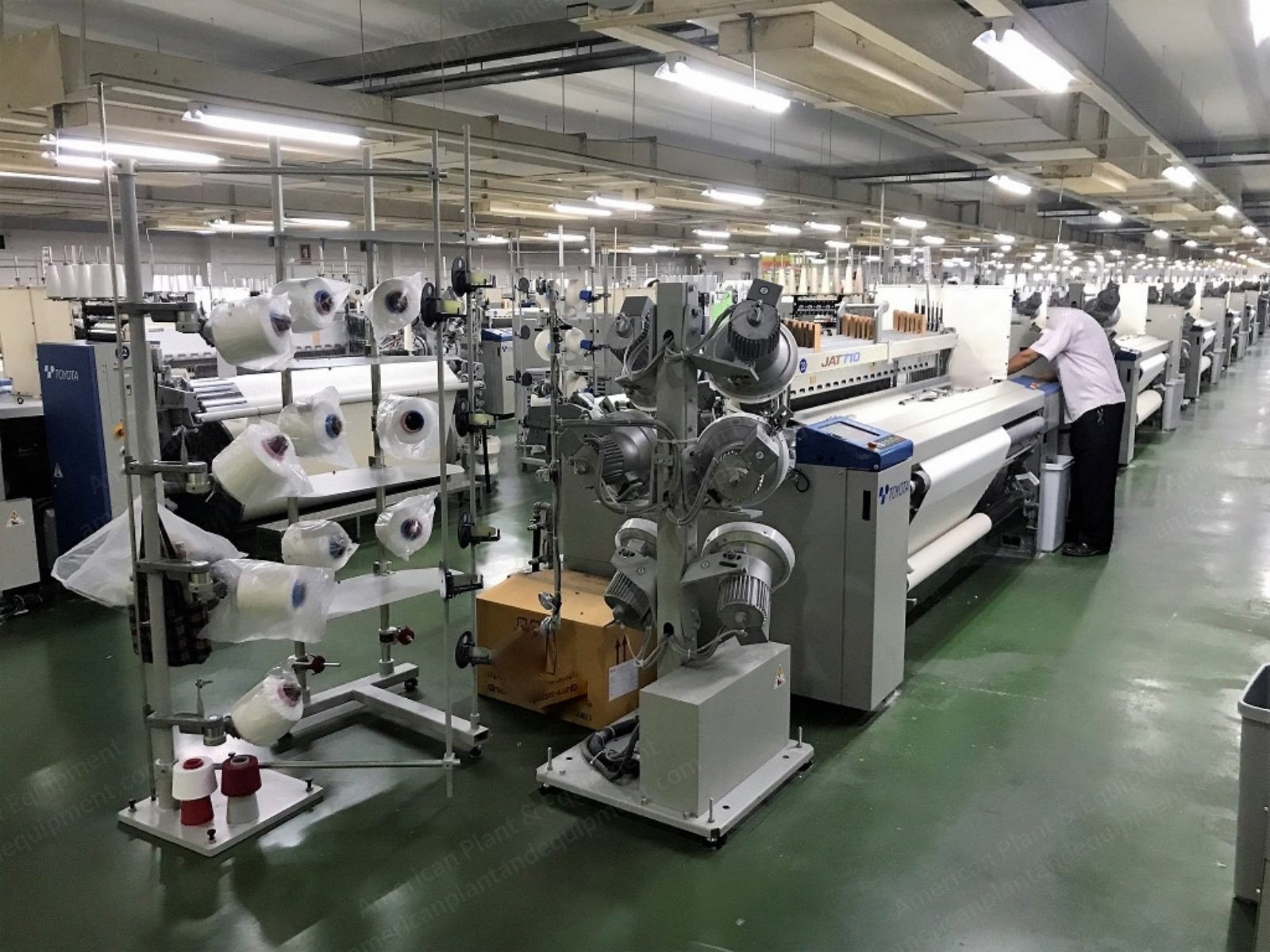

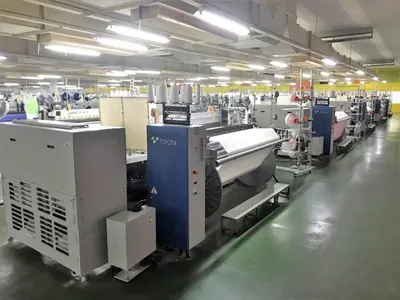

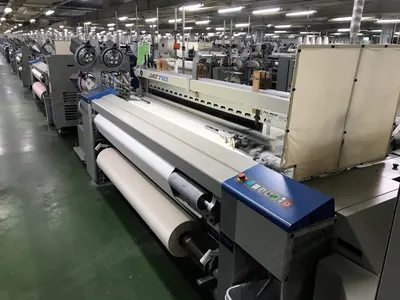

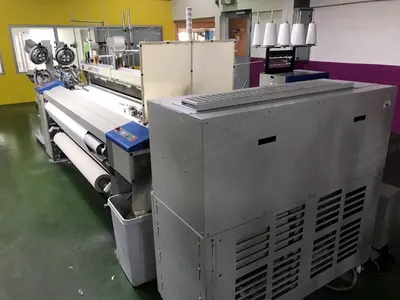

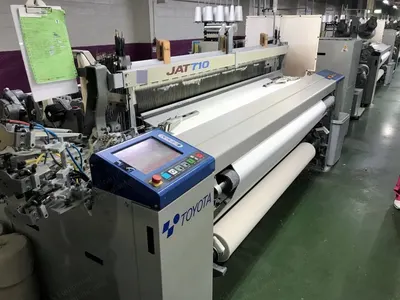

Toyota, T810, 2011, Air Jet Looms, 1900mm Working Width, 6 Colors, E-Shedding

Toyota, T810, 2011, Air Jet Looms, 1900mm Working Width, 6 Colors, E-Shedding Sold

Description

  1. Overview
    1. Maker: Toyota
    2. Name plate: JA6S-190TE-EF-T710 (with T810 e-shedding)
    3. Modified to T810 model at year 2014
    4. Year: 2011 (modified to T810 at year 2014)
    5. Working width: 1900 mm
    6. Max. speed: 1000 rpm
    7. Electricity: 380 V / 50 Hz

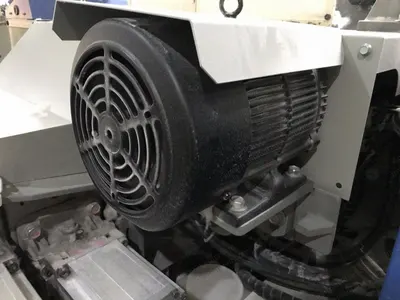

    8. Main motor: 1.8 kW
  2. E-Shedding System

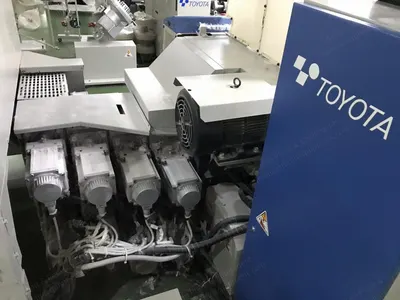

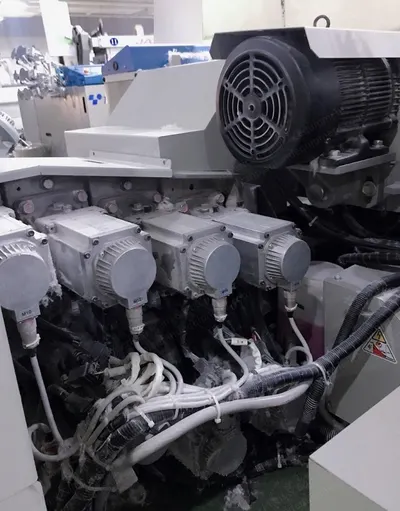

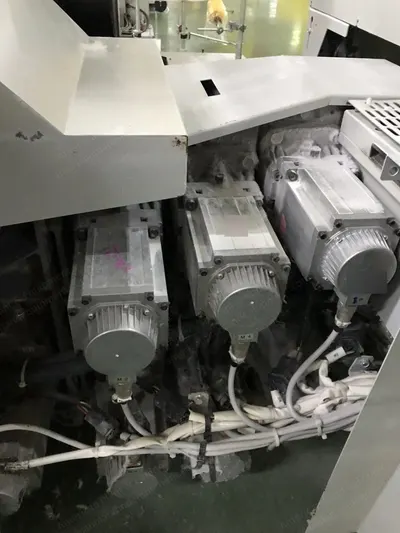

    1. T810 e-shedding motion: 16 shafts (all sets)

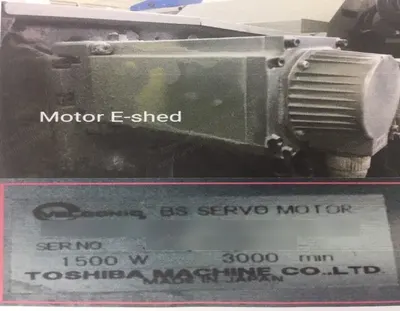

    2. T810 e-shedding motors: 16 pcs
  3. Weft and Color System

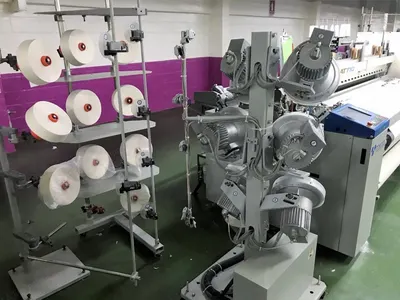

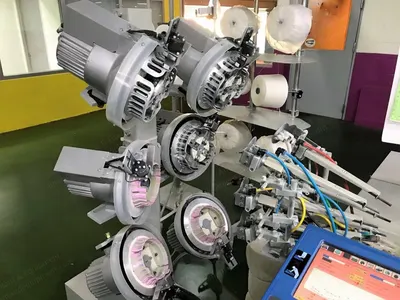

    1. 6 electric drum feeders
    2. 6 colors
    3. 6 weft feeders

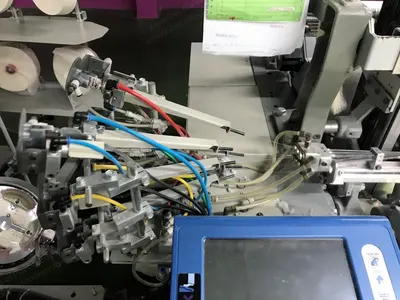

    4. T810 main nozzles and sub nozzles
    5. Weft insertion system: upgraded to T810 air saving system
    6. Solenoid valve: upgraded to T810 long life time version
  4. Drive and Control
    1. T810 inverter
    2. Speed controller inverter: upgraded to T810 full time version

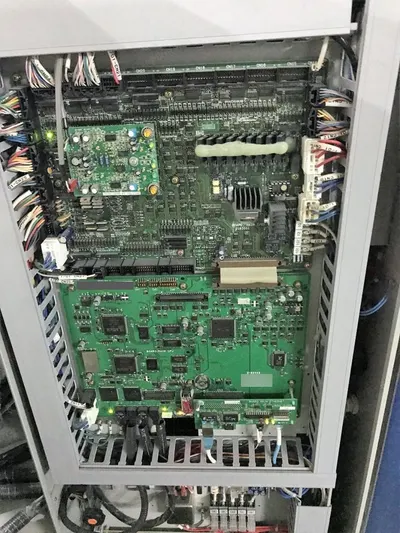

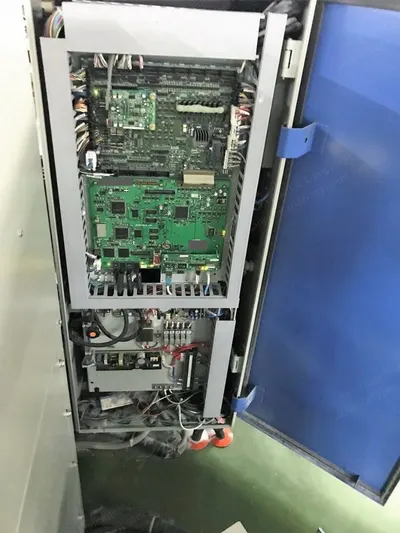

    3. TMS: upgraded to T810 real time control system
    4. Electric let off
    5. Electric take up
    6. Easing motion: upgraded to T810 reinforced rod end
    7. Motor timing belt: upgraded to T810 reinforced type
    8. Motor bearing: upgraded to T810 reinforced type
  5. Yarn and Temperature Control
    1. T810 yarn stand
    2. T810 temperature control fans
    3. T810 under motion and bearing and gearing
  6. Accessories per Set
    1. 1.5 warp beam (diameter 800 mm)
    2. 1.0 cloth roll
    3. 16 heald frames
    4. 7000 droppers
    5. 7000 heddles (c-type 331 mm)
    6. 1 e-reed (lower no. 100)
  7. Condition and Suitability
    1. Condition: running excellent
    2. Suiting fabrics can be run on these looms
    3. There are no side tucking or name writing attachment on the looms as it was not required by the mill to run their product
