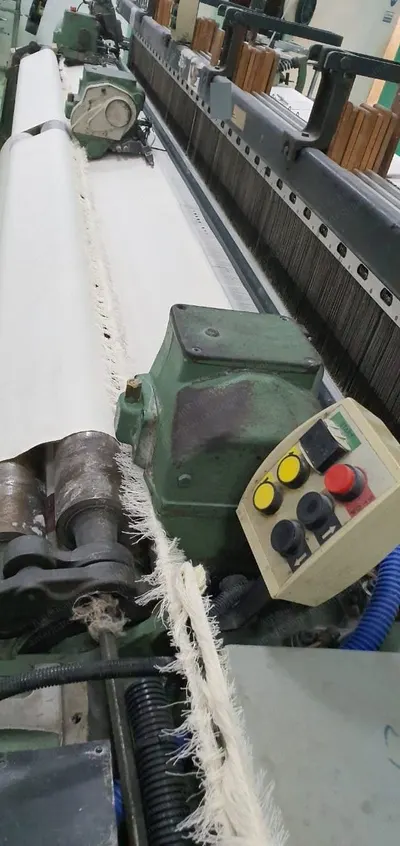

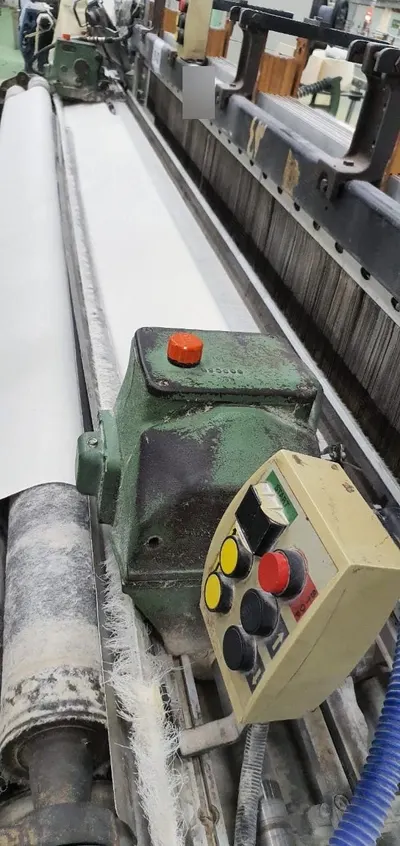

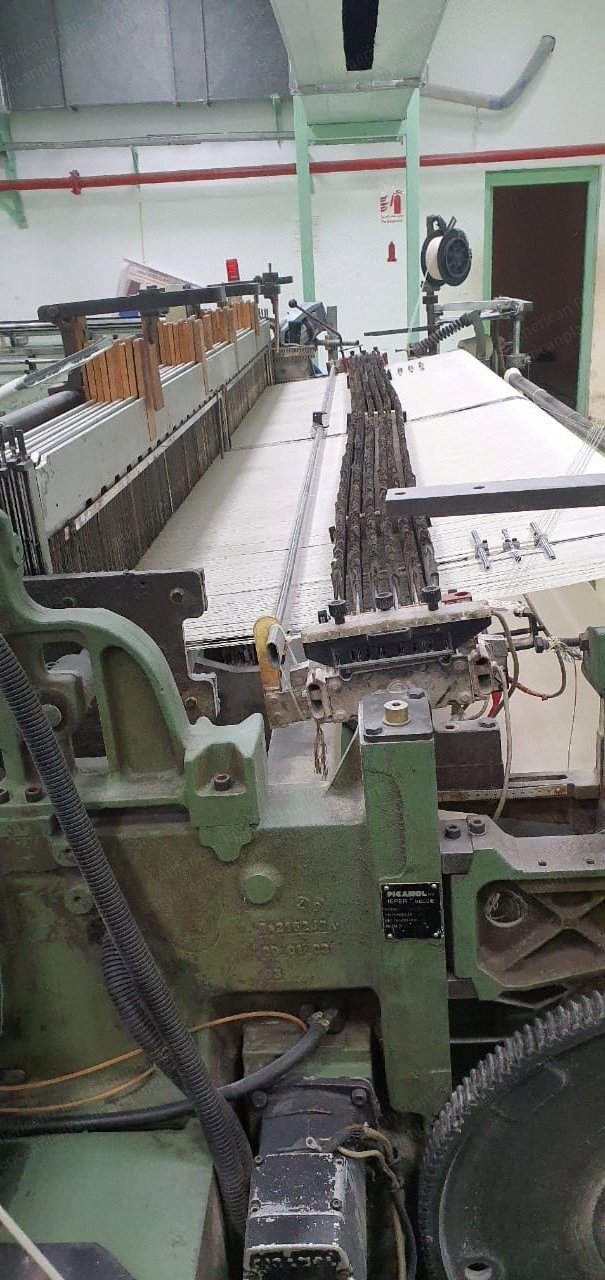

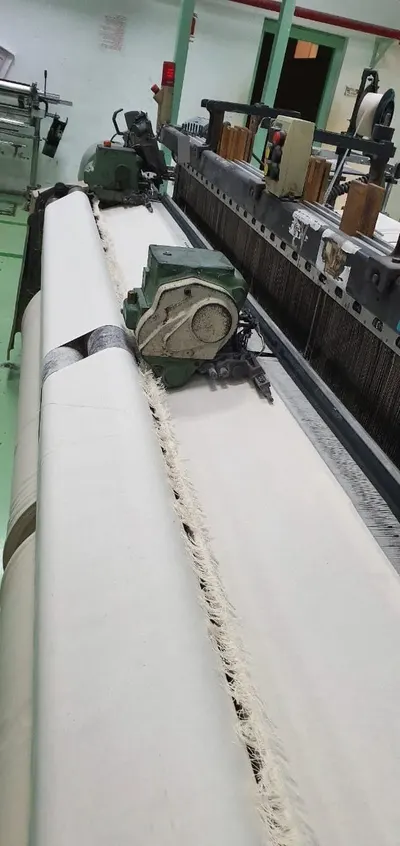

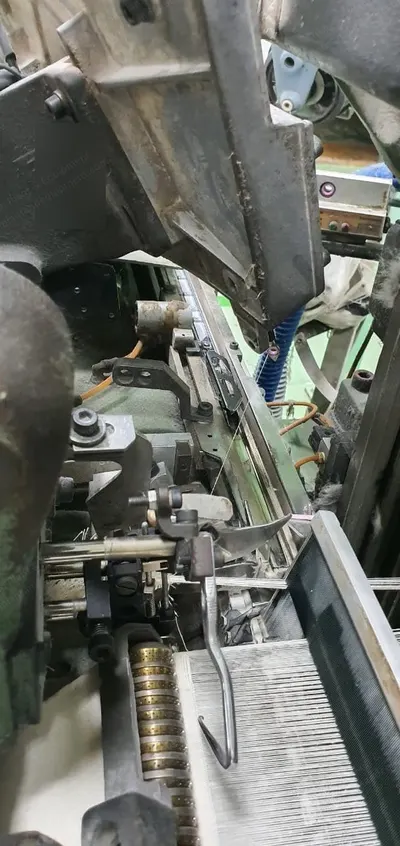

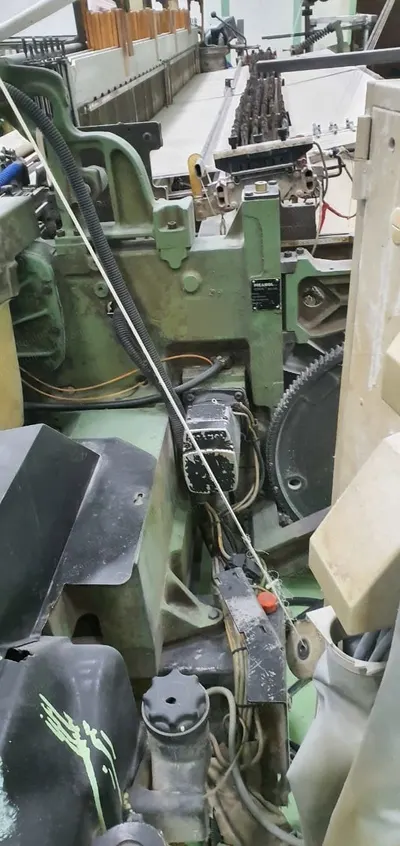

Picanol, Gamma 2-P, 3000mm to 3400mm Width, Dobby, 2 Colors

Picanol, Gamma 2-P, 3000mm to 3400mm Width, Dobby, 2 Colors

Description

  1. Overview
    1. Picanol Gamma 2-P

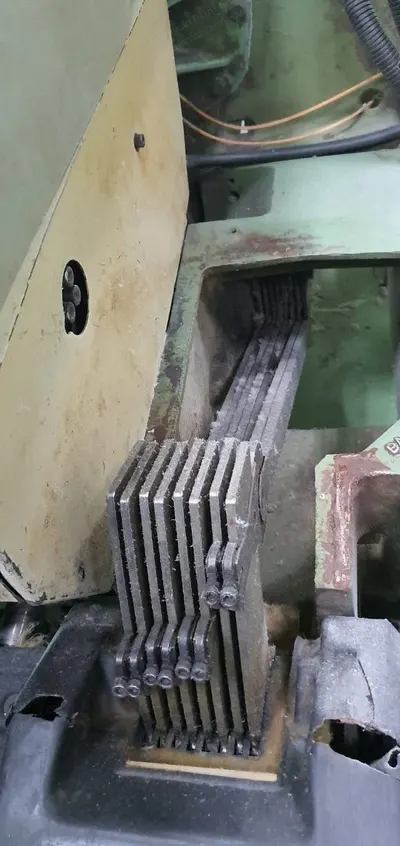

    2. Staubli Dobby 2622 with 12/16 levers installed
    3. 8 looms width 3400 mm
    4. 6 looms width 3000 mm
  2. Specifications
    1. Sumo motor
    2. Elo, etu
    3. 2 weft colors
    4. Eltex weft detection
    5. 2 weft feeders Roj Chrono
    6. With bobbin stand and electrical command box Roj
    7. 8 heald frames
    8. 6000 heddles
    9. 6000 droppers

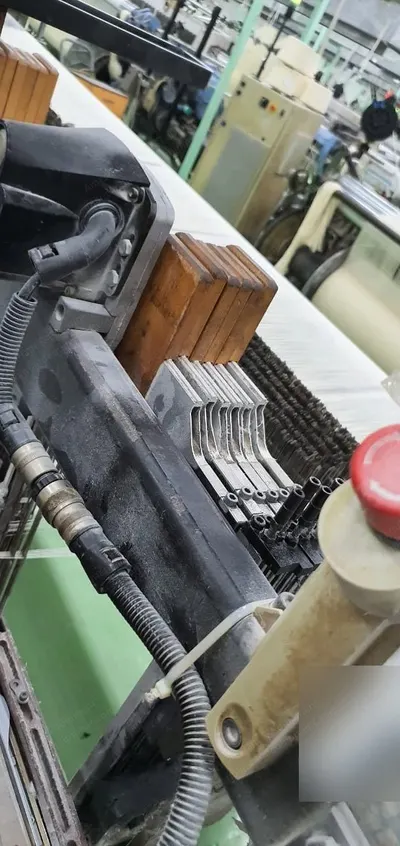

    10. Grob warp detection with 6 warp stop motion bars
    11. 2 warp tension rolls with spring-system right and left
    12. 1.5 warp beams / cloth roll
    13. 1 batching motion PBM-1 with weavers’ walking floor
    14. Electrical waste cutters right and left
    15. 2 tuck in right and left each loom
