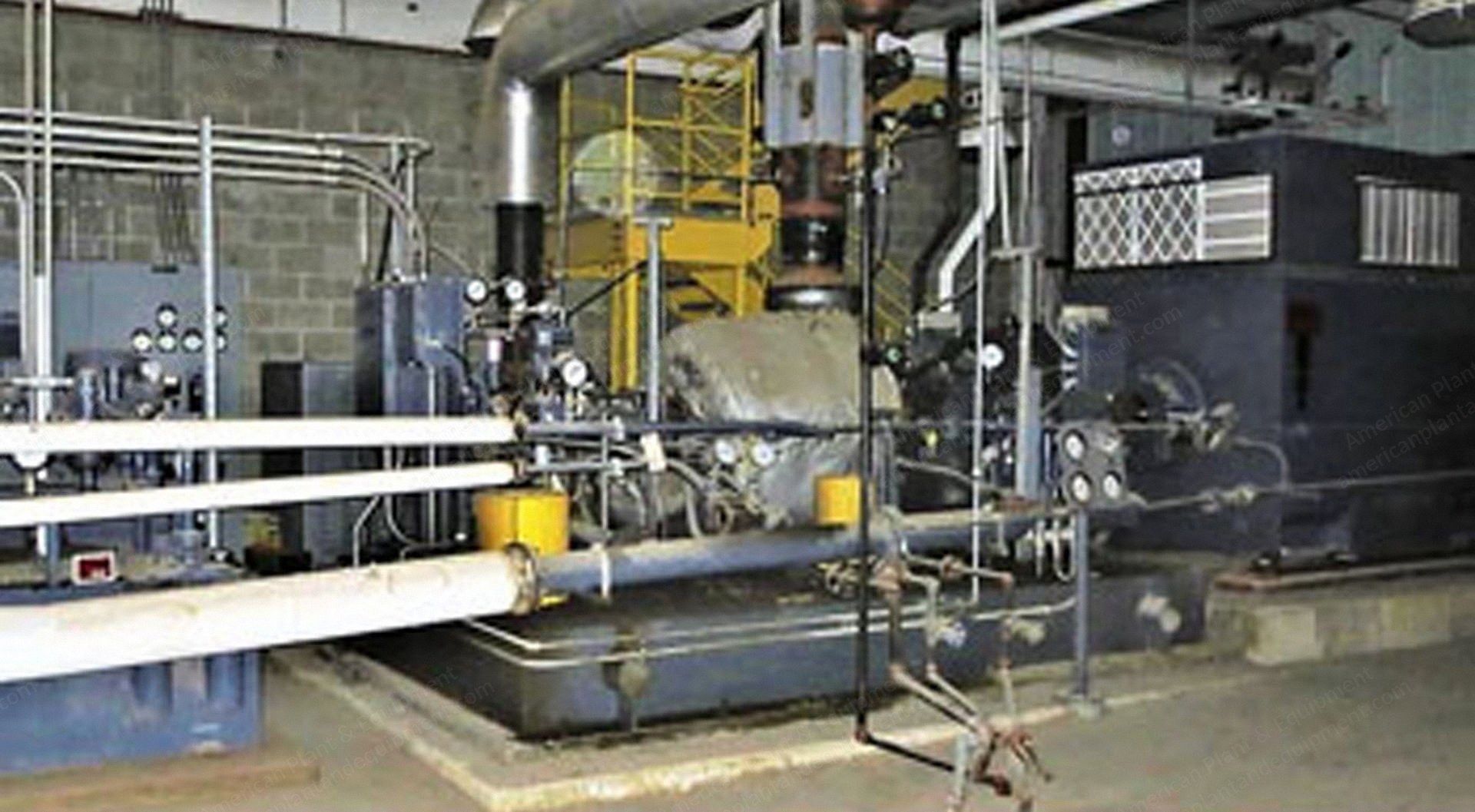

Murray, 4.0 MW, 2008, 60 Hz, 12,400V, Back Pressure Steam Turbine Generator

Murray, 4.0 MW, 2008, 60 Hz, 12,400V, Back Pressure Steam Turbine Generator

Description

  1. Overview
    1. Elliott steam turbine generator
    2. 4.0 mw steam turbine cogen-set package
    3. Equipment class: steam turbine generator
    4. Year: 2008
    5. Type: back pressure - 150 psi
    6. Fuel: 130k pph / 650 psig steam
  2. Specifications
    1. Size: 4000 kw
    2. Frequency: 60 hz
    3. Inlet pressure: 650 psig
    4. Inlet temperature: 750 f
    5. Exhaust pressure: 150 psig
    6. Max inlet flow: 130,000 lbs./hour
    7. Turbine speed: 7500 rpm
  3. Components
    1. Murray turbine with 4010 kw ideal generator, complete with lube system and control panel
    2. Ideal generator rated for 5000 kva / 12,400 v / 60 hz / 3 phase power, includes (2) radiators
    3. Lufkin gear reducer model n1602c, single reduction, double helical
    4. Rpm in: 7500, rpm out: 1800
    5. Turbine and gearbox on common steel frame skid; lube oil tank and generator are separate
    6. Lube oil system by lube power inc.
    7. Lube oil pump rated 70 gpm @ 120 psig, 12.5 bhp
    8. Rotation cw shaft
  4. Condition
    1. No hours - very good
  5. Dimensions
    1. Approximate dimensions: 26'-7" length x 10'-1" width
