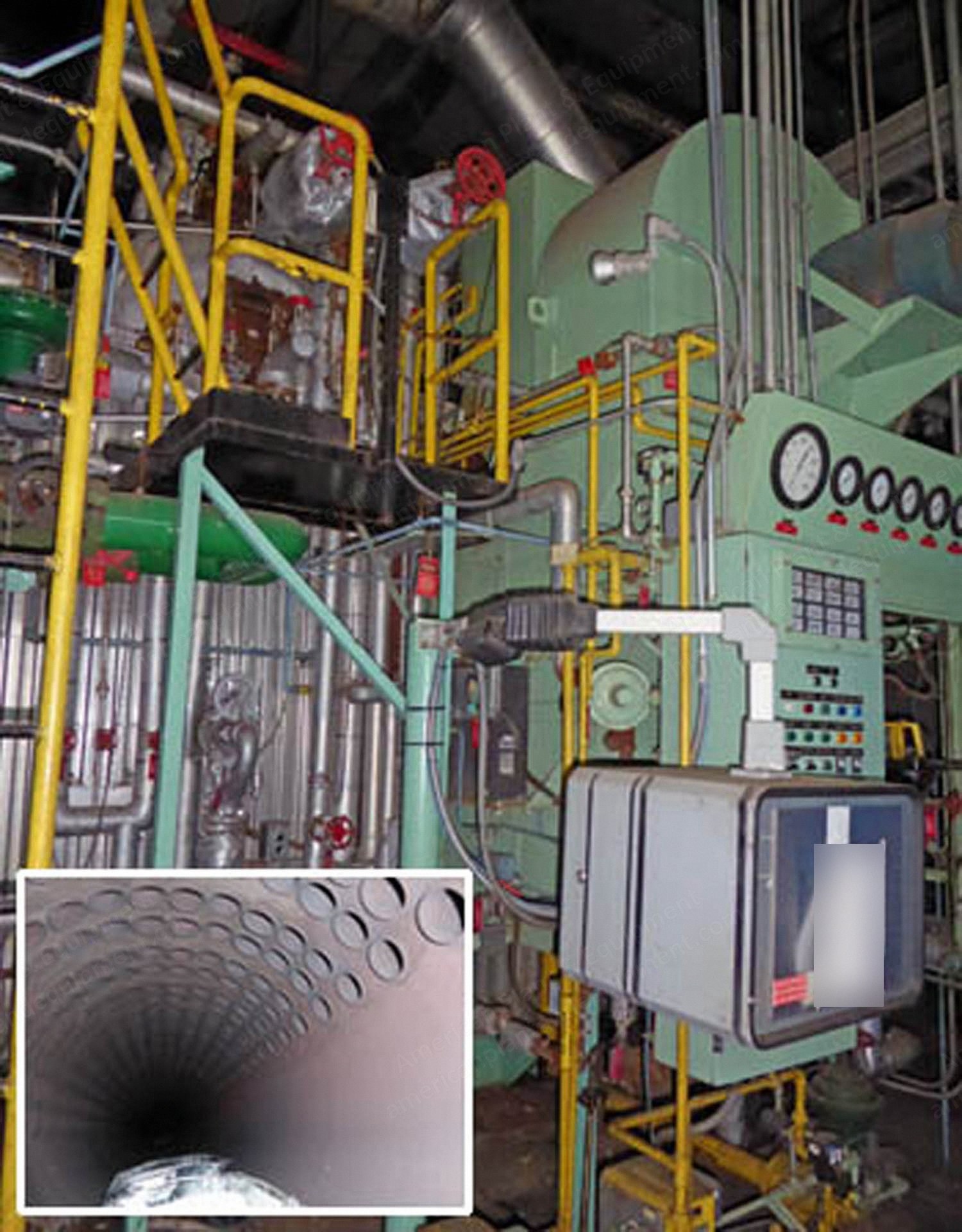

Babcock & Wilcox, Water Tube Boiler Plant, 250 PSI, 100,000 PPH, Natural Gas / #6 Oil

Babcock & Wilcox, Water Tube Boiler Plant, 250 PSI, 100,000 PPH, Natural Gas / #6 Oil

Description

  1. Overview
    1. Fuel type: natural gas / #6 oil
    2. Manufacturer: Babcock & Wilcox
    3. Type: water tube boilers
    4. Equipment class: complete steam plant
    5. 100,000 lb/hour total steam plant capacity
  2. Specifications
    1. Design pressure: 250 psig
    2. Capacity: 50,000 pph each
    3. 250 psi @ 406 degrees f temperature
    4. Heat side 3763 sqft, water wall 647 sqft
    5. Water tube d-type design
  3. Condition
    1. Boiler has been re-tubed with low hours
    2. Entire plant is in good condition
  4. Included Components
    1. Two (2) 50,000 pph Babcock & Wilcox package steam boiler, 250 psi, water tube d-type design
    2. Upgraded with Coen burners model BMS 2000 20D-12440-1, with flame safety system, #6 oil or natural gas fired with 10% flue gas recirculation
    3. Coen 2000 burner control system, with PLC operators station
    4. Control system standard features include dual flame safe guard, first out annunciator, NEMA 4 rating, U.L. approved components, CSA approved components, water column relays, scanner meters, dual fuel capability with low fire fuel changeover
    5. Boiler is skid mounted design
    6. DA tank, #6 fuel oil heater, water treatment, boiler feed pumps, PLC controls and more
    1. One (1) boiler of two (2) available
