Rostoni, T 70 A, 2000, Fractional Warping Line, 1850mm Width, 1274/1206 Positions

Rostoni, T 70 A, 2000, Fractional Warping Line, 1850mm Width, 1274/1206 Positions

Description

  1. Elf 1 fractional warping line
    1. For all artificial and synthetic multifilament yarns.
    2. Year 2000.

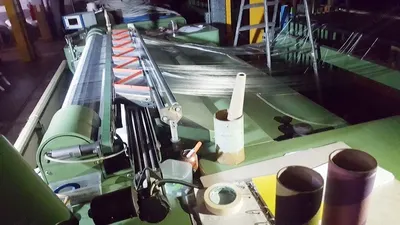

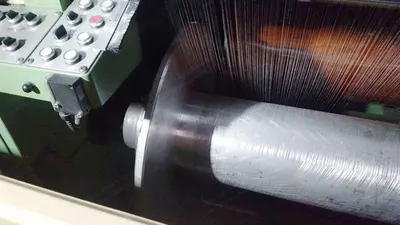

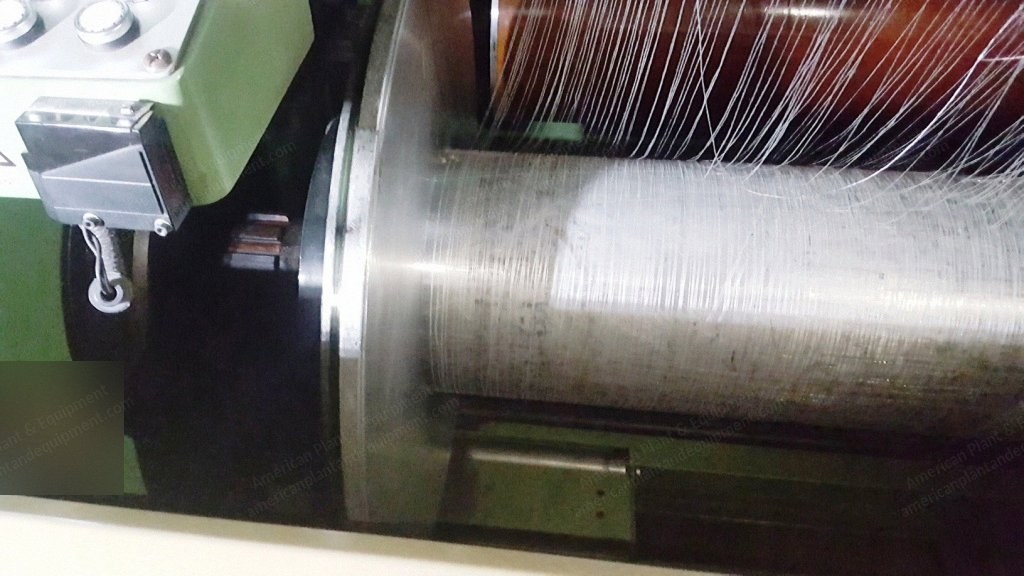

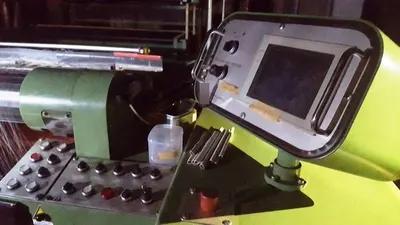

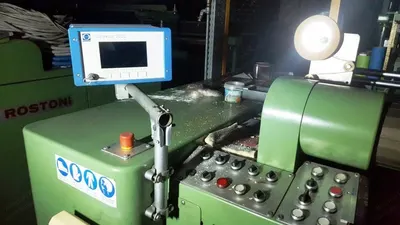

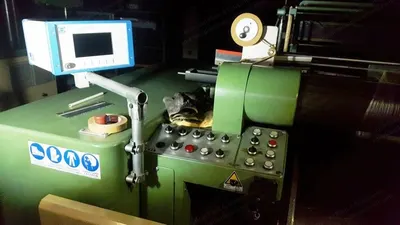

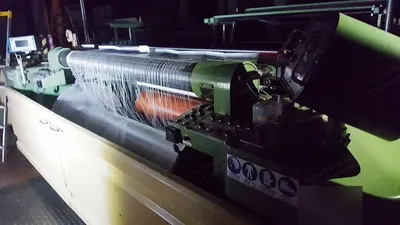

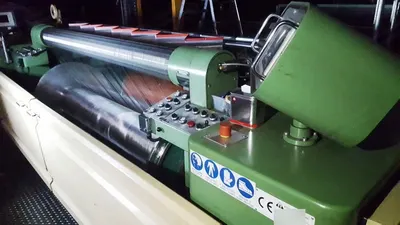

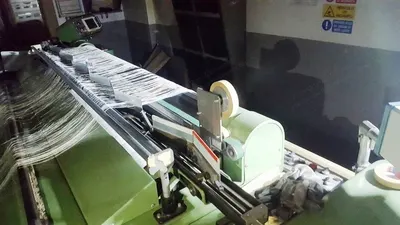

    3. One Rostoni fractional warper, model T 70 A, year 2000, beam width 1850 mm, flange diameter 765 mm (maximum 900 mm).

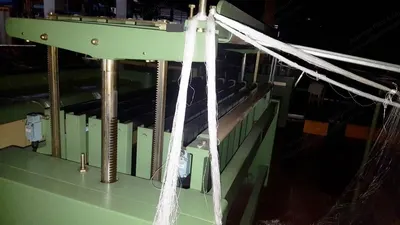

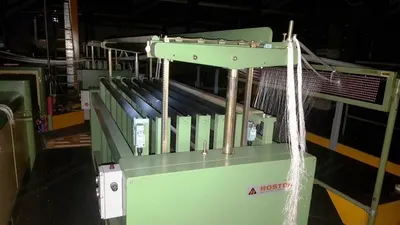

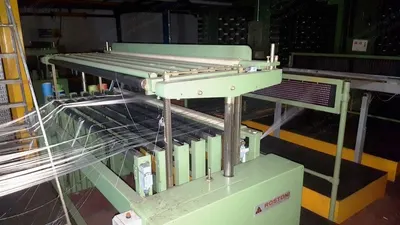

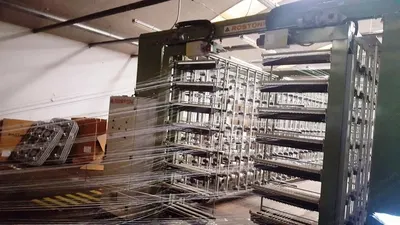

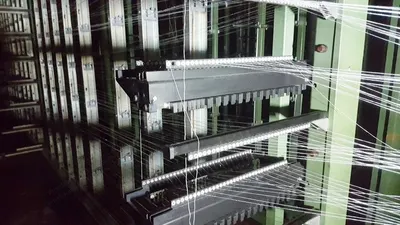

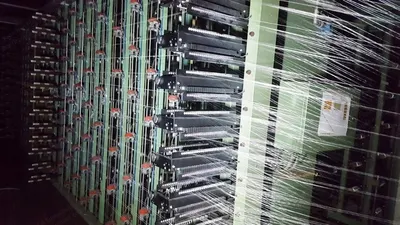

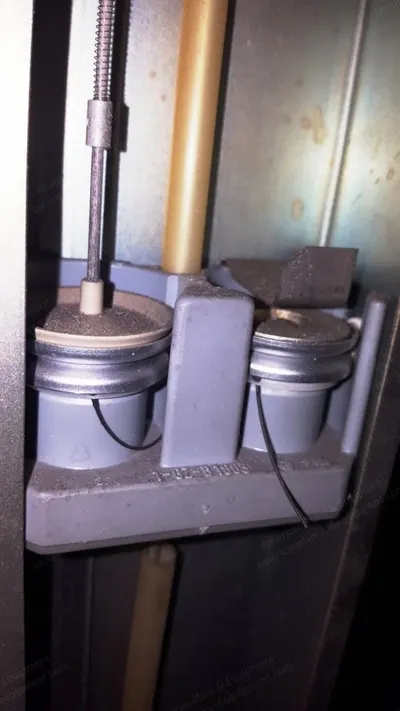

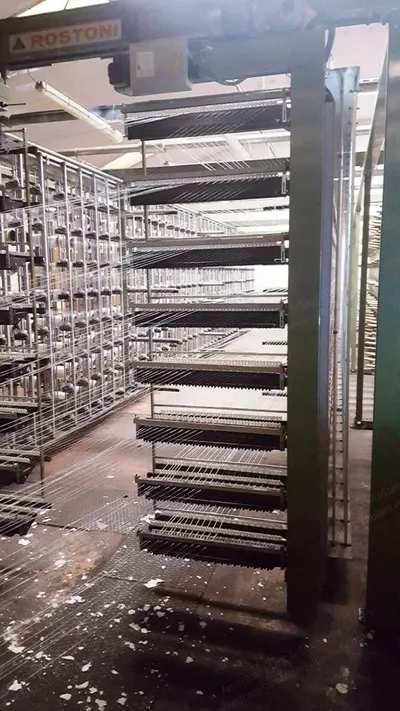

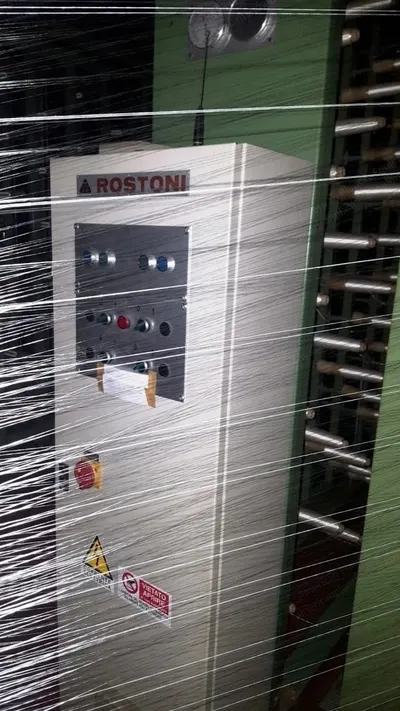

    4. One Rostoni creel with 1274 positions, complete with all accessories, vertical gauge 320 mm, horizontal gauge 280 mm, 13 + 13 horizontal floors with electric warp stop motion, vertical motors and control pneumatic breaking 2 disks for yarn.
    5. One Protecna 3000 4 electronic sensor photoelectric.
    6. One Rostoni ADF yarn feeder - accumulator yarn.
    7. Two tables guide wire-yarn.
    8. Total line length 40000 mm (30000 mm creel length + 2000 mm head warper), total width 4600 mm.
  2. Elf 2 fractional warping line
    1. For all artificial and synthetic multifilament yarns.
    2. Year 2000.
    3. One Rostoni fractional warper, model T 70 A, year 2000, beam width 1850 mm, flange diameter 765 mm (maximum 900 mm).
    4. One Rostoni creel with 1206 positions, complete with all accessories, vertical gauge 360 mm, horizontal gauge 270 mm, 9 + 9 horizontal floors with electric warp stop motion, vertical motors for control breaking 2 disks for yarn.
    5. One Protecna 3000 4 electronic sensor photoelectric.
    6. One Rostoni ADF 16 yarn feeder - accumulator yarn.
    7. Two tables guide wire-yarn.
    8. Total line length 40000 mm (30000 mm creel length + 2000 mm head warper), total width 4600 mm.
