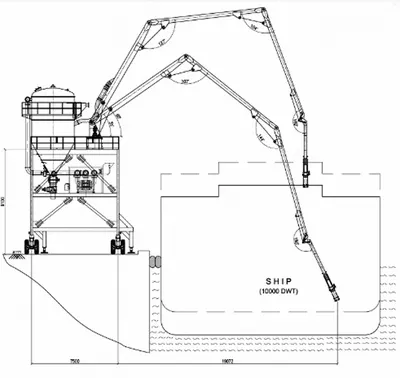

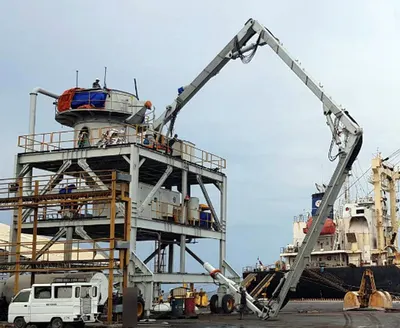

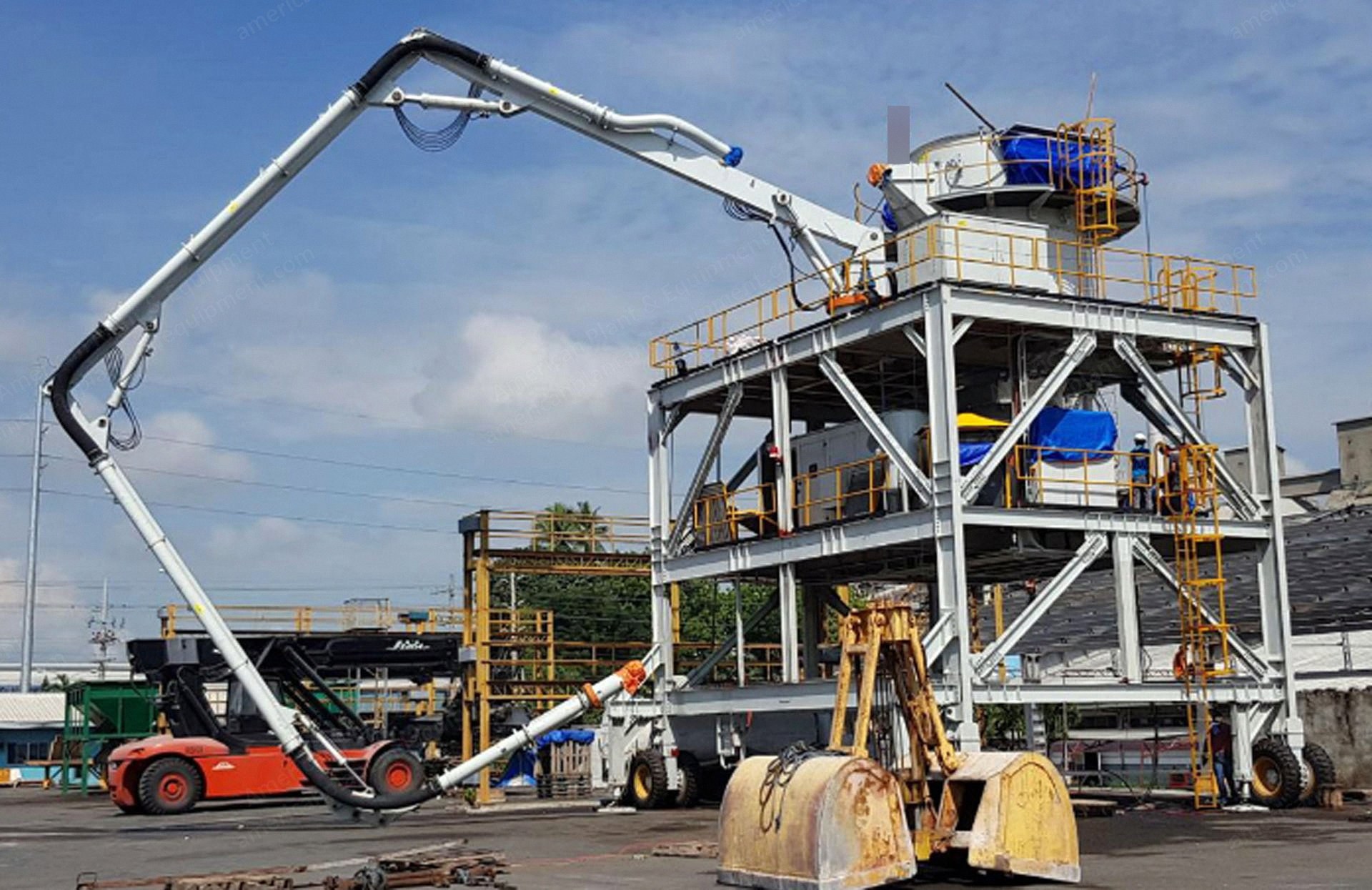

Description Overview 100 tph pneumatic ship unloader Suitable for up to 10,000 dwt vessels (can extend to 20,000 dwt) Designed for cement, fly ash, and GGBFS Capacity: 75-100 tph Gantry type on rubber tires, non-steerable, non-driven gantry structure Boom length: 36 m in 4 sections 75-100 tph design capacity for cement Tire mounted Specifications Roots blower: power rating 160 kW / 215 hp, 440 V, 60 Hz, rated current 243 amps Filter receiver: total cloth area 200 m², number of bags 250 Suction pipe: size 250 NB, pipe O/D 273 mm, pipe I/D 265 mm Power pack for boom operation: tank capacity 500 litres Piston pump for boom assembly cylinders: pump flow 26 lpm, working pressure 210 bar, power rating 18.5 kW / 20 hp, 440 V, 60 Hz, rated current 28 amps approx Vane pump for turn table and stirrer: pump flow 40+40 lpm, working pressure 60 bar, power rating 7.5 kW / 10 hp, 440 V, 60 Hz, rated current 11 amps approx Compressor for filter cleaning: screw compressor with integrated refrigeration drier, FAD 70 cfm at 7 bar pressure, power rating 11 kW / 15 hp, 460 V, 60 Hz, rated current 16.7 amps Rotary air lock: size 500 diameter, capacity 75 tph, power rating 4 kW, 440 V, 60 Hz, rated current 6.0 amps approx Reversible screw conveyor: size 450 diameter, length 5000 c/c, U-trough type, speed 85 to 90 rpm, capacity 75 tph, power rating 11 kW, 440 V, 60 Hz, rated current 16.7 amps approx Total weight of equipment (ship unloader assembly): 60.0 mt Condition Used industrial equipment Included Components Roots blower: 1 no Filter receiver: 1 no Suction pipe: 1 no Power pack for boom operation: 1 no Piston pump for boom assembly cylinders: 1 no + 1 standby Vane pump for turn table and stirrer: 1 no + 1 standby Compressor for filter cleaning: 1 no Rotary air lock: 1 no Reversible screw conveyor: 1 no Not specified
