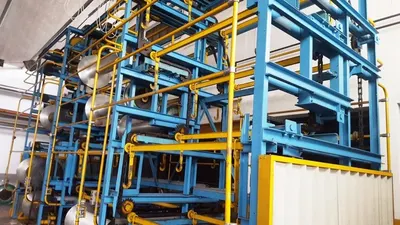

Rostoni, F80C, 2005, Traditional Sizing Line FSA, Beam Width 2600/2800mm, 11 Dryer Cylinders

Description

Overview
1. Traditional sizing line FSA
2. Year 2005
3. For all rayon viscose and rayon acetate artificial multifilaments yarns

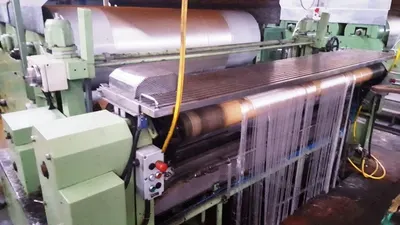

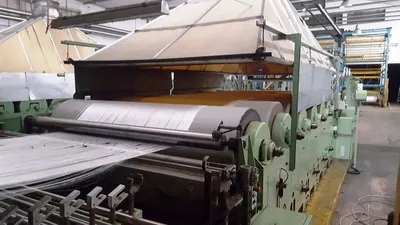

Rostoni Sizing Machine
1. Model F80C

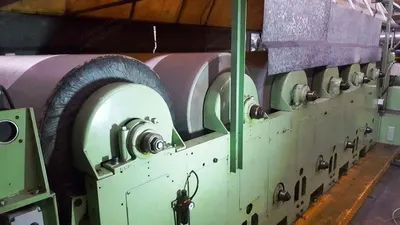

2. 11 dryer tefloned cylinders

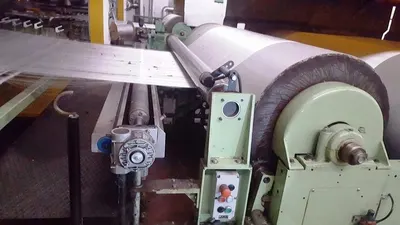

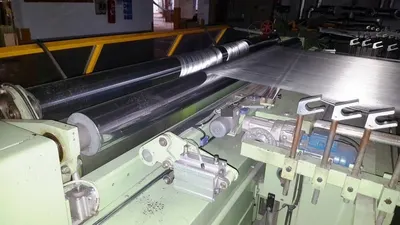

3. Size box with 2 cylinders (1 rubber + 1 steel chromed, plus 3 cylinders for pretension yarn)
4. Width beam 2600 / 2800 mm
5. Year 2005

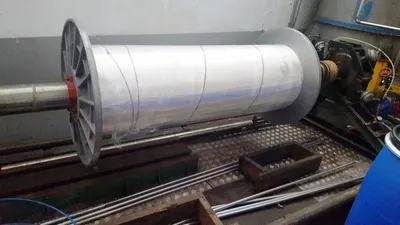

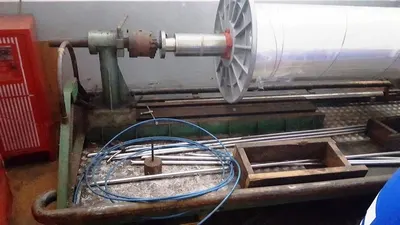

6. Warp beams width 2000 x flange diameter 1000 mm
7. Dispersor electrostatic tension device

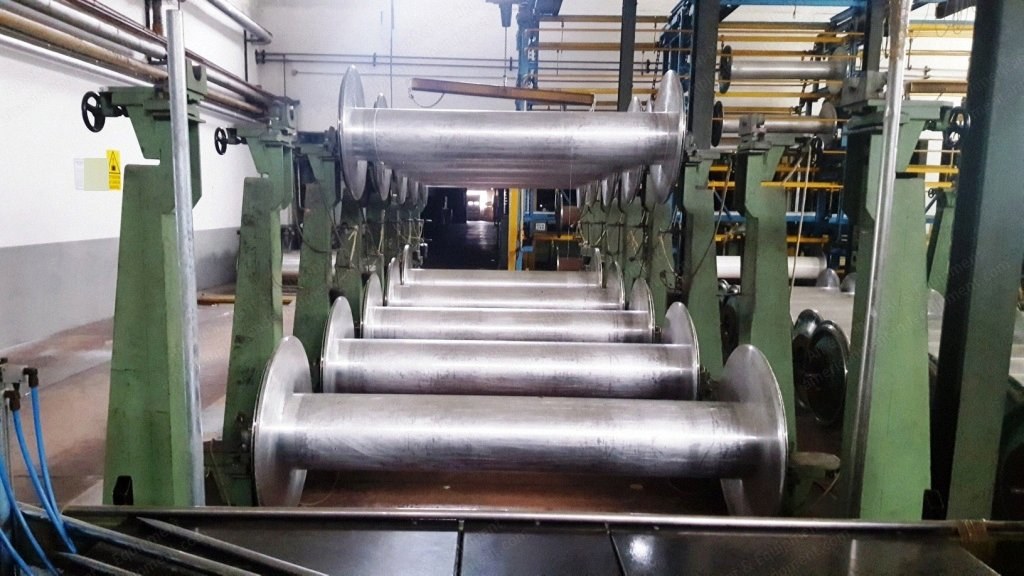

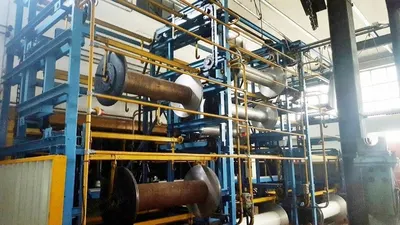

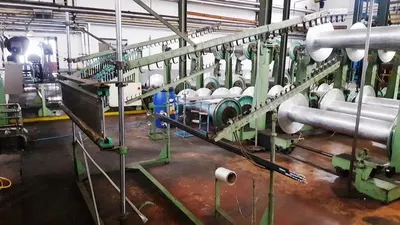

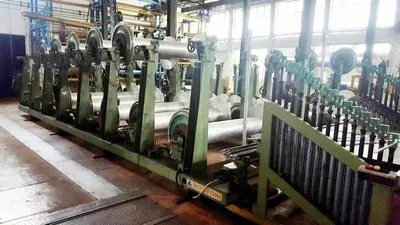

Rostoni Beams Creel
1. 16 positions beams width 1380 / 2000 mm x flange diameter 1000 mm
2. Complete of breaking system gravity weight

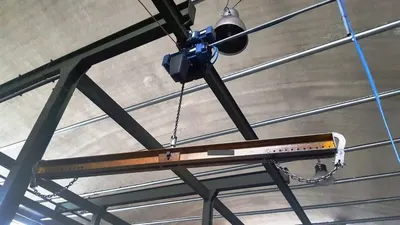

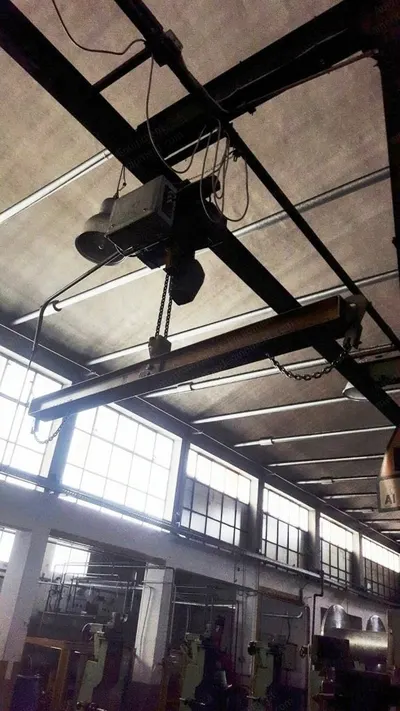

3. Electric crane for beams capacity 1000 kg

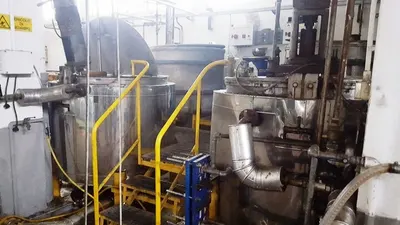

Included Accessories
1. Oiling tank for yarn

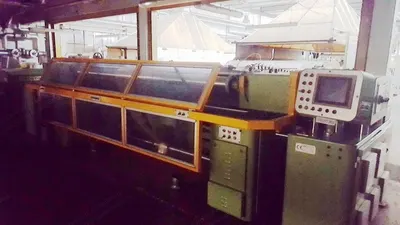

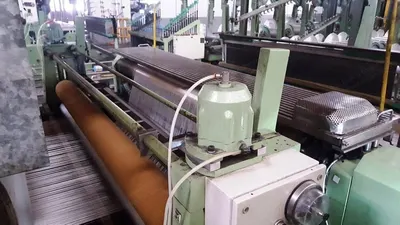

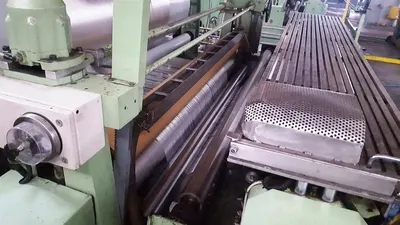

2. Automatic leasing reed with tables guide wire-yarn, bars 16x2
3. Set preparation sizing

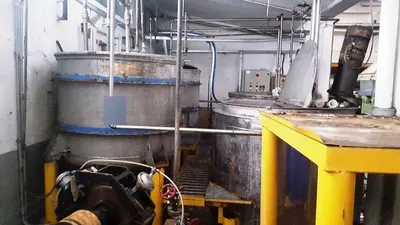

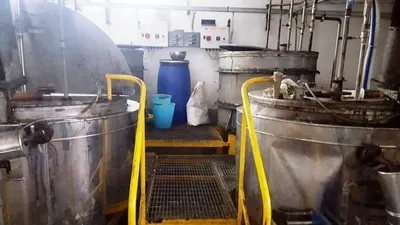

4. Tank mixing products acrylic resin or vinilic resin

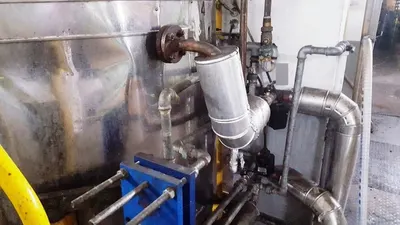

5. 2 tanks preheating / steam heating
6. 2 storage tanks
Dimensions
1. Total length line 11000 mm, width 5300 mm + length 4000 mm
2. Leasing reed plus length creel 8500 mm

Capacity	1000kg crane capacity

Dimensions	11000x5300mm line length/width, 4000mm leasing reed, 8500mm creel length
Length	11,000 mm
Width	1,000 mm
