Sany, SY16C, Mini Excavator, 2026, 4,024 lb Operating Weight (New)

Sany, SY16C, Mini Excavator, 2026, 4,024 lb Operating Weight

Description

  1. Overview
    1. New, unused mini excavator, build year 2026.
    2. 1 hour on the meter.
    3. Rubber tracked undercarriage with an open rollover protective structure (OROPS).
    4. Operating weight 4,024 lb (1,825 kg).
    5. Conventional tail swing, radius 3 ft.
    6. Quantity: 1 machine.
  2. Engine and Drive
    1. Yanmar diesel engine, model 3TNV74F, rated 15 HP.
    2. Emissions rating USA Tier 4 Final.
    3. Heavy duty battery.
    4. Fuel tank capacity 5.3 gal (20.1 L).
    5. Two travel speeds, maximum travel speed 2.3 mph (3.7 km/h).
    6. Control pattern changer.
  3. Working Equipment and Hydraulics
    1. One piece swing boom, 5 ft (1,524 mm).
    2. Standard stick, arm length 3 ft (914 mm).
    3. Maximum reach 156 in (3,962 mm).
    4. Maximum dump height 8 ft (2,438 mm).
    5. Digging depth 7 ft (2,134 mm).
    6. Hydraulic non angle backfill blade.
    7. Auxiliary hydraulics.

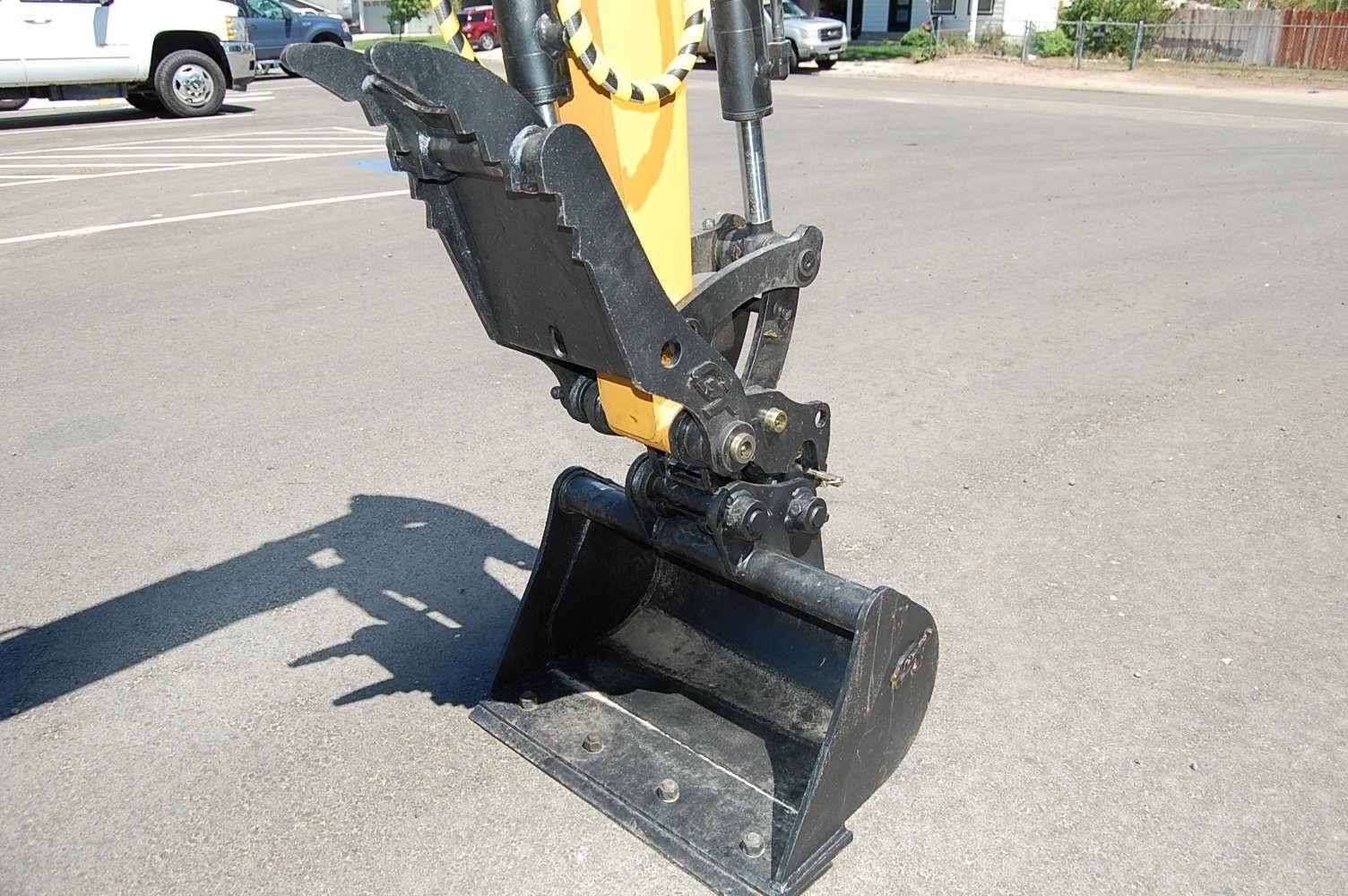

    8. Heavy duty digging bucket, 24 in (610 mm), choice of size.
    9. Hydraulic thumb and manual quick coupler available at additional cost.

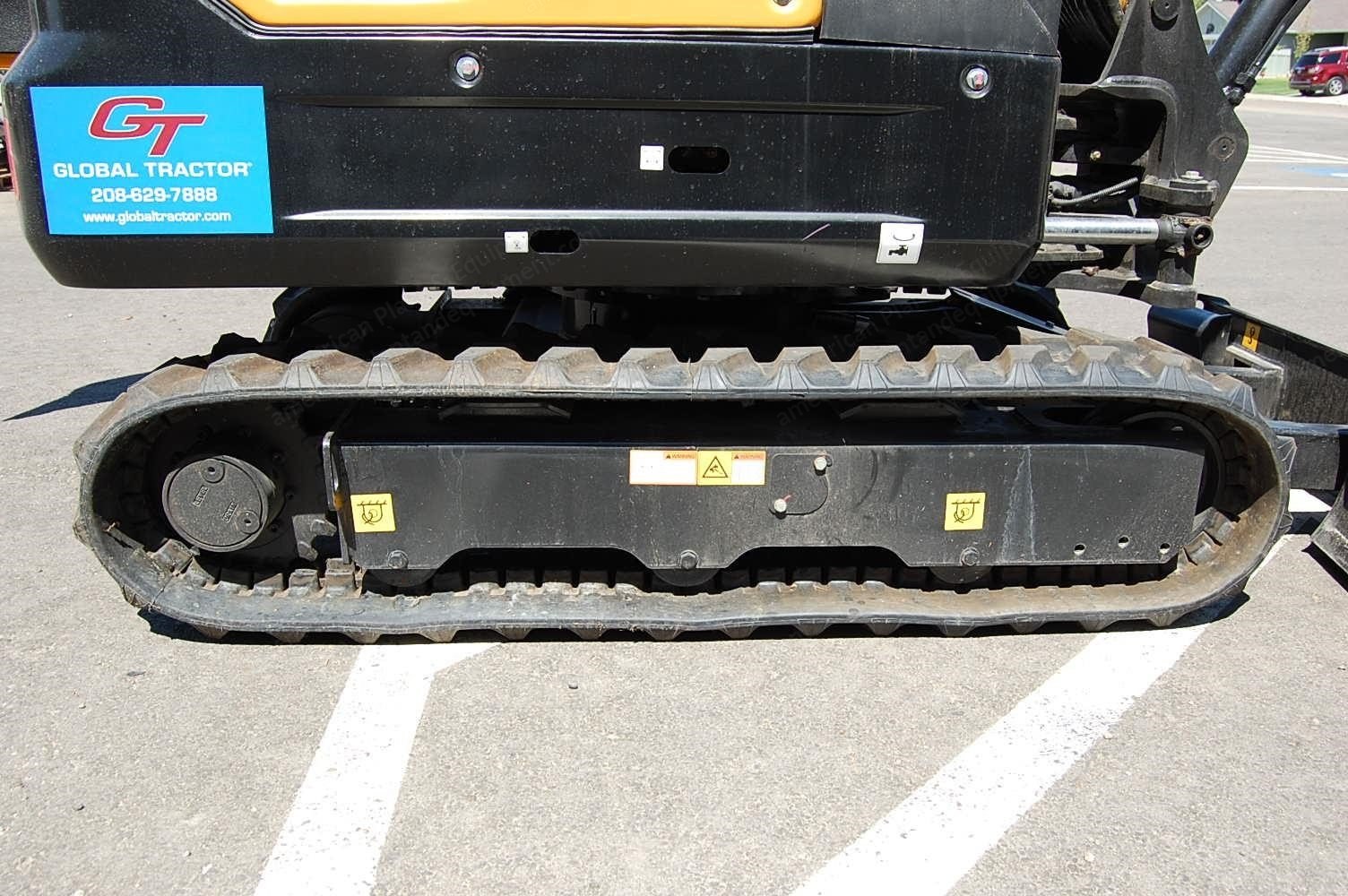

  4. Undercarriage
    1. Rubber tracks, track shoe width 9 in (229 mm).
    2. Fixed undercarriage, length 5 ft (1,524 mm).
    3. Undercarriage, tracks, idlers, sprockets and rollers at 100 percent remaining.

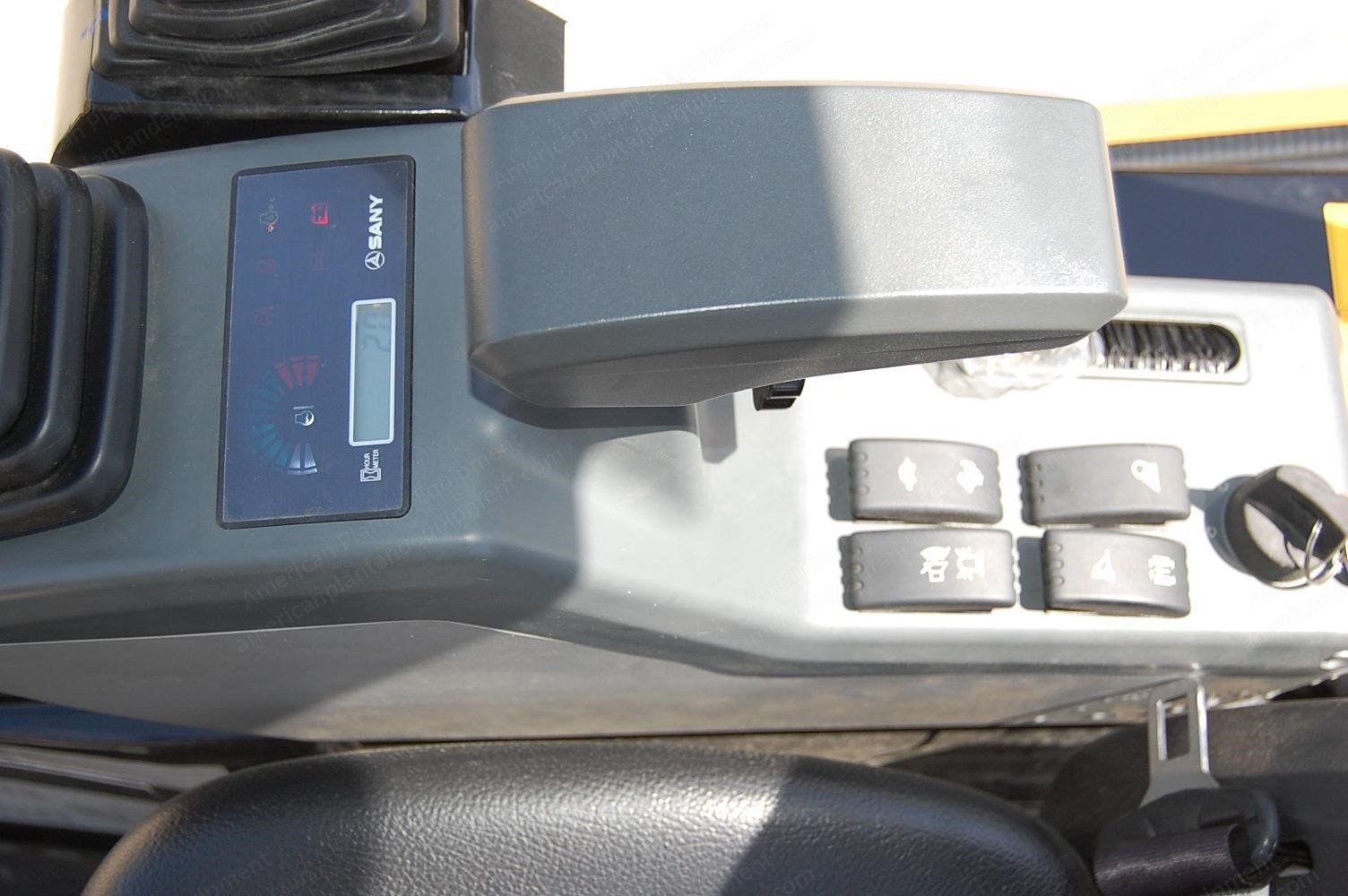

  5. Cab and Operator Station
    1. Open rollover protective structure (OROPS).
    2. Vinyl seat.
    3. Halogen exterior lighting.
  6. Shipping Dimensions and Weight
    1. Length 11 ft 7 in (3,531 mm).
    2. Width 3 ft 3 in (991 mm).
    3. Height 7 ft 9 in (2,362 mm).
    4. Weight 4,024 lb (1,825 kg).
