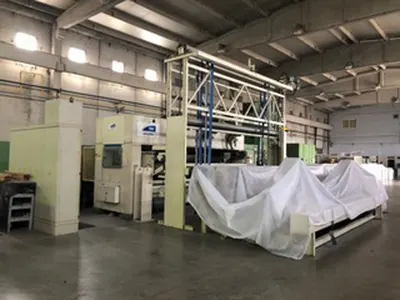

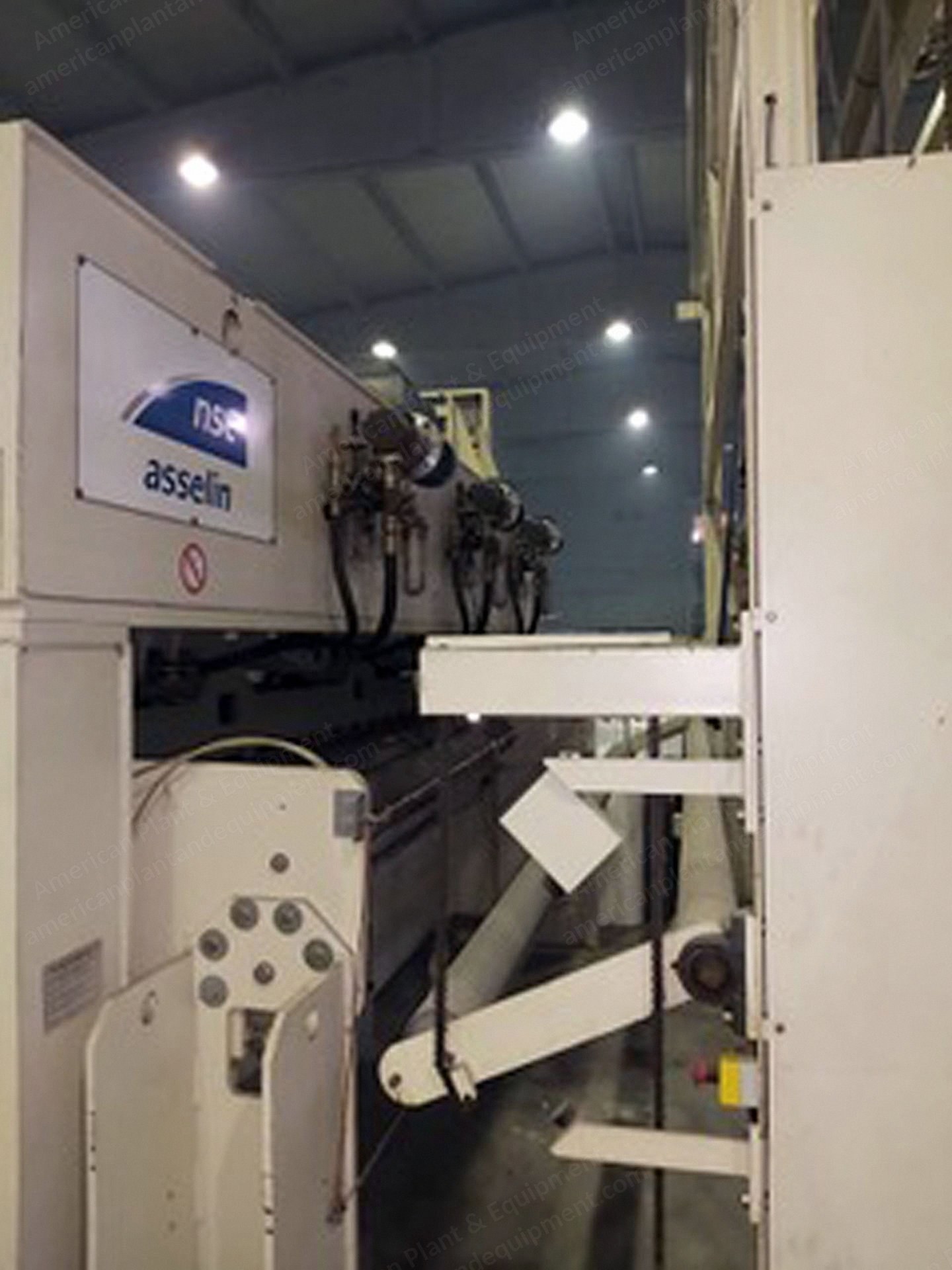

Asselin, A50R-SD1, Needle Loom, Working Width 3950mm, Stroke 60mm, 1200 rpm

Asselin, A50R-SD1, Needle Loom, Working Width 3950mm, Stroke 60mm, 1200 rpm

Description

  1. Overview
    1. Single downstroke needle loom
    2. One feeder
    3. No edge trimmers; final width 3800 mm max
    4. Maximum product roll diameter: 1500 mm
    5. Voltage: 380/50
  2. Specifications
    1. Working width: 3950 mm
    2. Stroke: 60 mm
    3. Maximum rotation speed: 1200 tr/mn
    4. Maximum advance: 5 m/mn
  3. Main Drive
    1. Electrical motor
    2. Standard type: MA 180 MFA
    3. Power: 71 kW
    4. Maximum speed: 1750 tr/mn
  4. Stripper Plate
    1. Motor-reducer
    2. Type: C38 M90 L4 L8
    3. Motor power: 1.5 kW
    4. Motor speed: 1500 tr/mn
  5. Bed Plate
    1. Motor-reducer
    2. Type: CM M90 L4 L8
    3. Motor power: 1.5 kW
    4. Motor speed: 1500 tr/mn
  6. Condition
    1. Machine is in perfect condition, like new
  7. Included
    1. 7 containers including fibers pipings will this line take to ship
