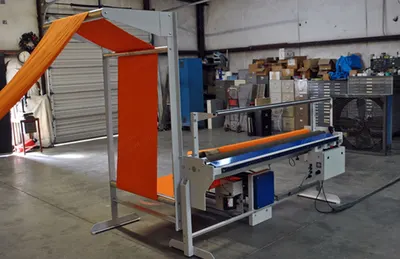

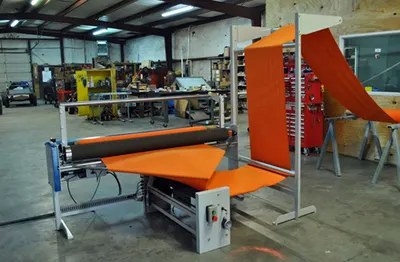

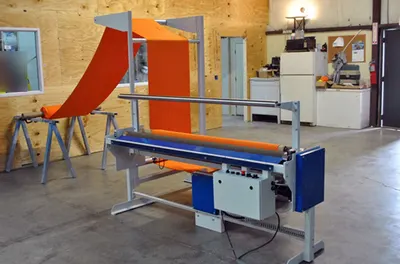

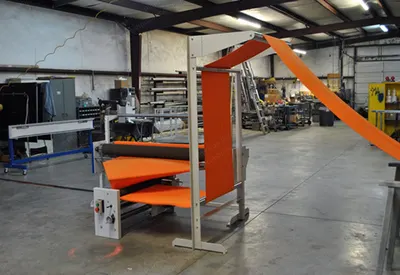

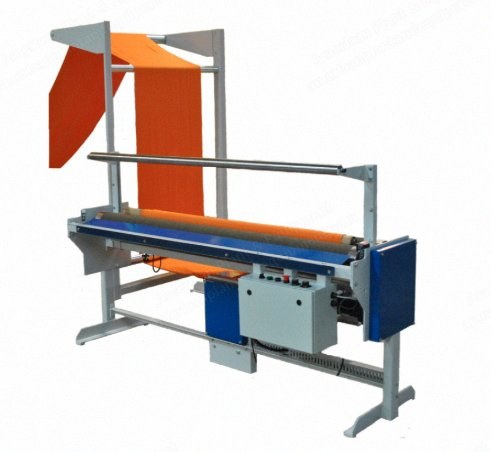

TEC, TEC-4080, Tube Slitter, 40-inch Tubular Knit Capacity, 80-inch Maximum Open Width

TEC, TEC-4080, Tube Slitter, 40-inch Tubular Knit Capacity, 80-inch Maximum Open Width

Description

  1. Overview
    1. Runs tubular knit material through a “delta wing”, slitting one side of the fabric and then re-winding the material onto a single wide roll.
    2. The material can then be slit to required binding width.
    3. Takes rolls or pallets of flat folded tubular fabric up to 40 inches of tubular knit, opens it, slits one side, unfolds and rolls up the single layer material up to 80 inches wide.
    4. Engineered to assure simple operation with minimal maintenance requirement.
  2. Specifications
    1. Maximum open width: 80 inches.
    2. Power requirements: 115 vac or 230 vac single phase 50/60 cycle.
    3. Turn key adjustable tube guide (variable from 18 inches to 40 inches).
    4. Driven push button slitter with 0.25 inch blade.
    5. Pneumatic dual bevel blade sharpener.
    6. Air blast de-curling device.
  3. Operation
    1. In-feed rollers pull the tubular fabric over an adjustable spreading device to open the tube properly before slitting.
    2. One side of the openers is equipped with a cutter blade to slit the tube.
    3. Equipped with a 4.25 inch diameter blade that cuts the tube open.

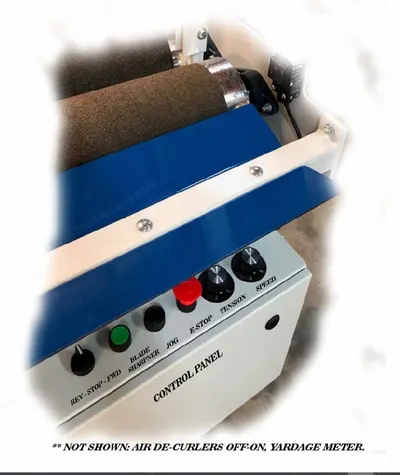

    4. Cutter blade is equipped with a push button blade sharpener on the operator’s control panel.
    5. After the tube is slit on one side it travels over a delta wing device to open the slit tube so it can be rolled up in a single layer manner.
    6. An air operated selvedge de-curlers keeps the slit fabric flat on the edges as it is being wound; these de-curlers are adjustable for various widths.
    7. Driven take up rollers (independent adjustment for tension control).
    8. The take up rollers and the air blast de-curlers assures very accurate edge-alignment.
    9. Driven pre-feed roller carries material into the “delta wing” spreader.
    10. Idler roller overhang guide for flat folded tubular material.
