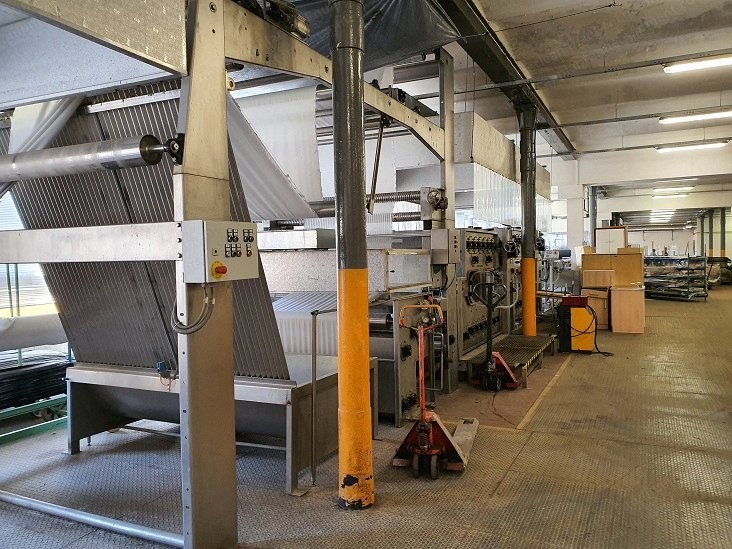

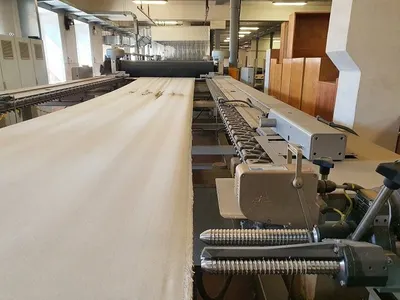

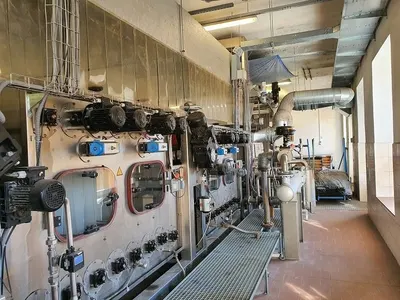

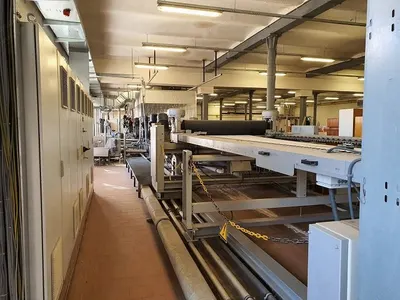

Description Overview Menzel mercerization machine Year: 2010 Material: cotton fabric Operator side: in the direction of goods running to the right Steel: 316 for chemie, other 304 Specifications Width of goods: 800 to 1600 mm finish, 1580 to 1750 mm coarse Width of cylinder wob: 2000 mm Weight of goods: 80 to 200 g/m2, average 140 g/m2 Production speed: 37 m/min Technical speed: 55 m/min Production capacity: 10 million meters/year (250 days, 3 shift) Compressed air: 6 bars Steam pressure: 6 bars Electrical connection values: 400 V, 50 Hz, 3 ph Electrical Power Installed electrical power of the mercer device: 111 kW cca. Installed electrical power of the cooling liquor: 25 kW Installed electrical power of the lay recovery: 18 kW Installed electrical power of the expansion field: 10 kW Consumption Water consumption desizing: cca. 2 - 4 liters/kg goods = 2 m3/h Water consumption finishing washing: cca. 6 - 8 liters/kg goods = 4 m3/h Water consumption for lay cooling: cca. 6 m3/h at 10-15 °C Water consumption for lay recovery: cca. 7 m3/h at 18 °C Steam consumption for water heating in the washing areas: cca. 1000 kg/h (z 20 °C na 95 °C) Steam consumption for the lay recovery: cca. 1.100 kg/h Consumption the compressed air: average cca. 500 l/h, shortly 2500 l/h Condition and Features Rubberizing the device between squeezing: hard rubber 100 °shore against soft rubber 80 °shore Rubberizing squeezing device rowatex: hard rubber 100 °shore against rowatex 95 °shore Squeeze effect the device rowatex: 60 % - 65 %, depending on the weight of the goods and speed
