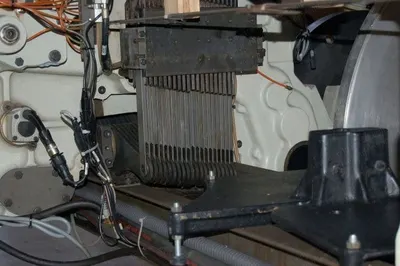

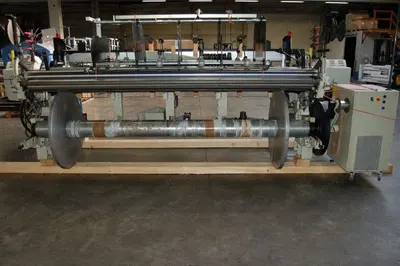

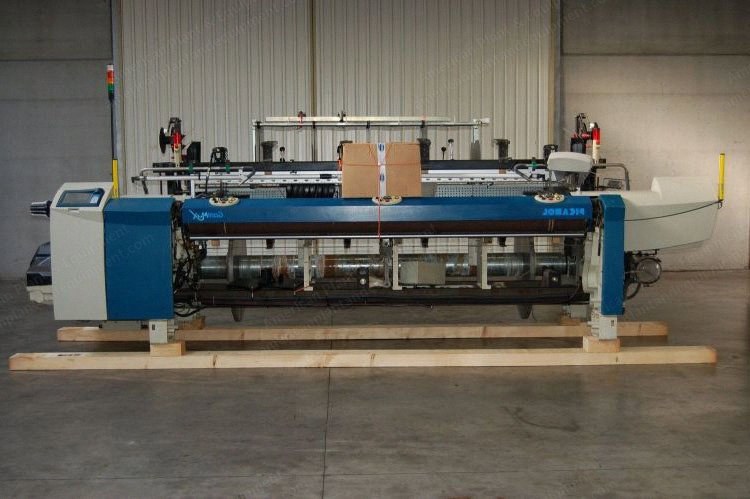

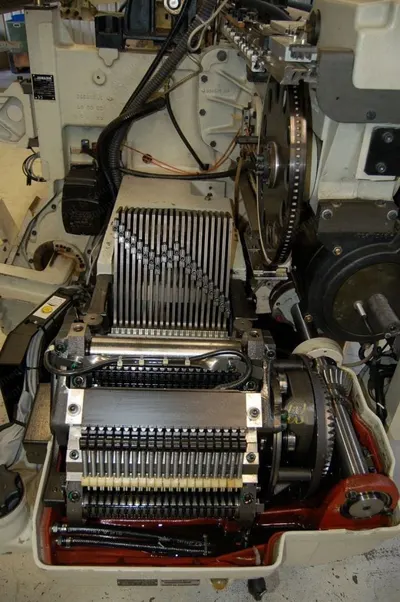

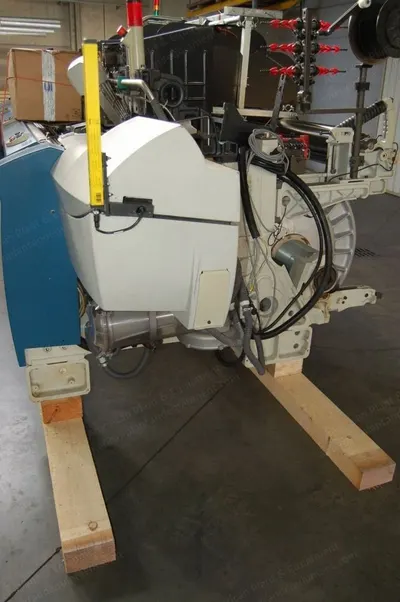

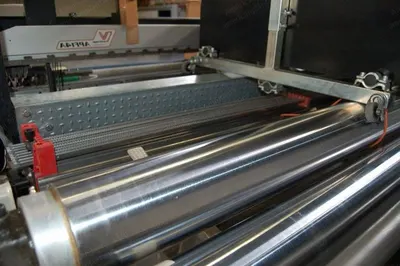

Description Overview Picanol rapier looms Type Gammax-4-R-300 Year of construction: 2004 Working width: 3000 mm Free flight system with flat gripper 4 weft colors Electronic Staubli dobby type 2670 up to max. 20 shafts 20 levers installed Specifications Sumo, Elo, Etu 4 weft accumulators Vsg Luna X2 or Lgl Progress Vector Can Bus Picanol with support Creel for 4 bobbins and 4 bobbin switches 4 heald frames Verbrugge Apf14a Drc 3 type 13" c 5000 heddles 5000 droppers Grob warp detection Double warp tension rolls diameter 120 mm With springs R+L, Elsy R+L, electric waste cutter R+L Waste system + dustbin Loepfe Thermocut installed (but without melt cutters) 1 din. warp beam Ø 1000 mm Q4 Touchscreen Equipped for external batching motion but without batching motion
