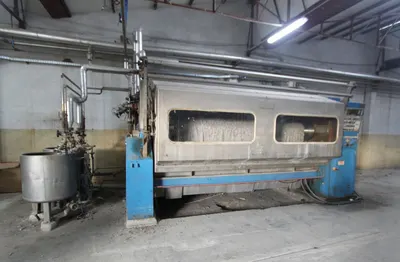

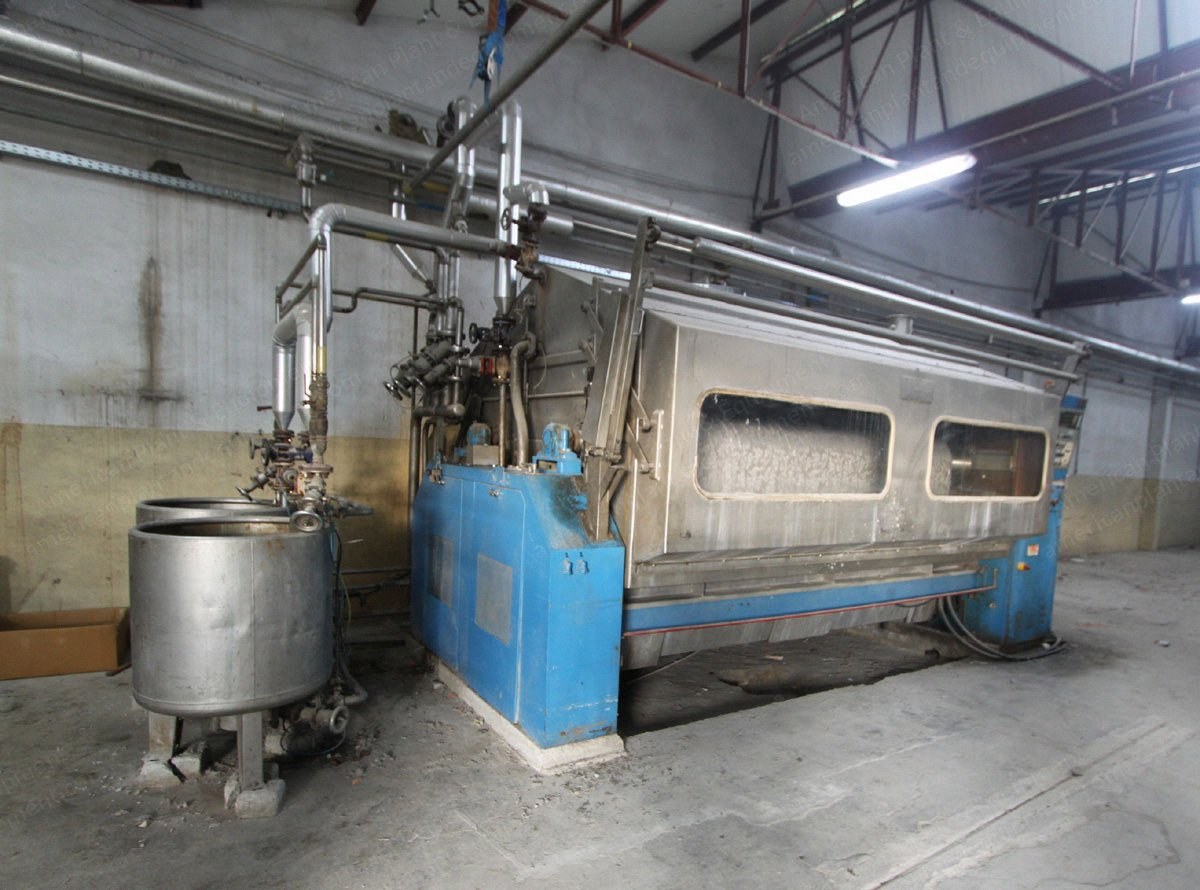

MCS, Maxi Jigger 3400, 1989, Working Width 3200mm, Roller Width 3400mm, Max Temp 98C

MCS, Maxi Jigger 3400, 1989, Working Width 3200mm, Roller Width 3400mm, Max Temp 98C

Description

  1. Overview

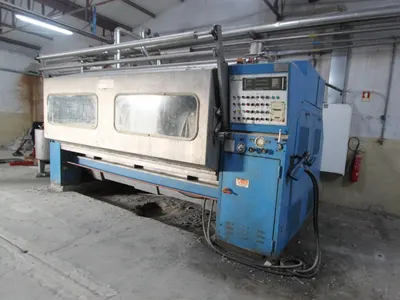

    1. Mcs hydraulic dyeing jigger type maxi jigger 3400
    2. Year 1989
  2. Specifications
    1. Roller width 3400 mm
    2. Working width 3200 mm
    3. Maximal winding diameter 1400 mm
    4. Maximal dyeing temperature 98 ºC
    5. Loading capacity in linear meters is calculated with the following formula: 1400 / fabric thickness in mm
    6. Constant fabric speed for the whole batch adjustable from 15 to 150 m/min
    7. Constant fabric tension for the whole batch adjustable from 10 to 60 kg
    8. Through entirely built in stainless steel Aisi 316
  3. Controls

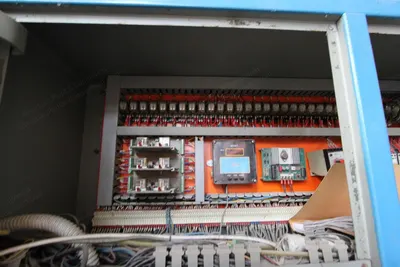

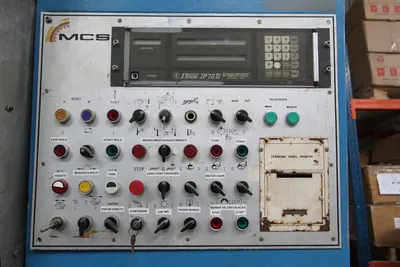

    1. Dye cycle controller termoelettronica type jtronix jp70tc
  4. Features

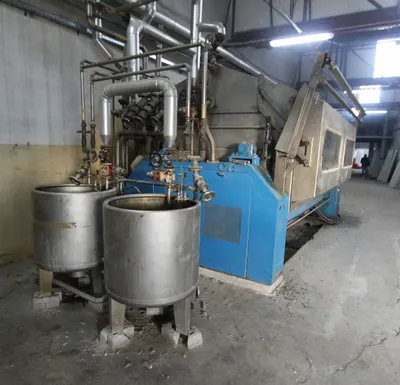

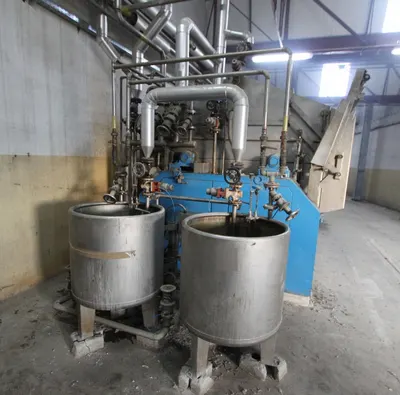

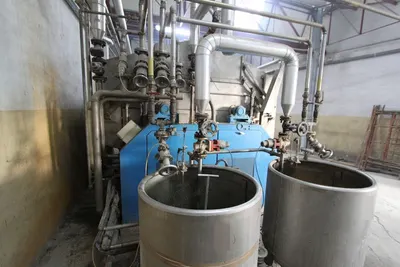

    1. 2 addition vats

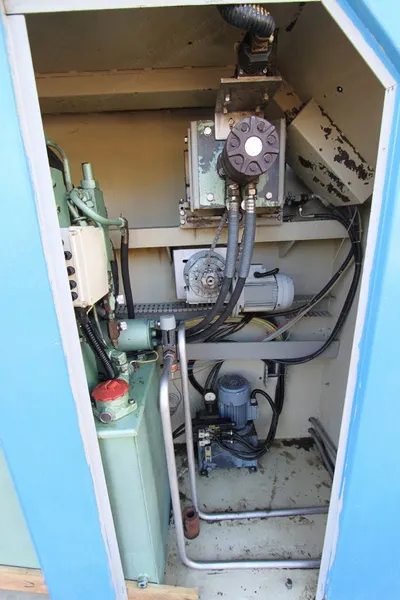

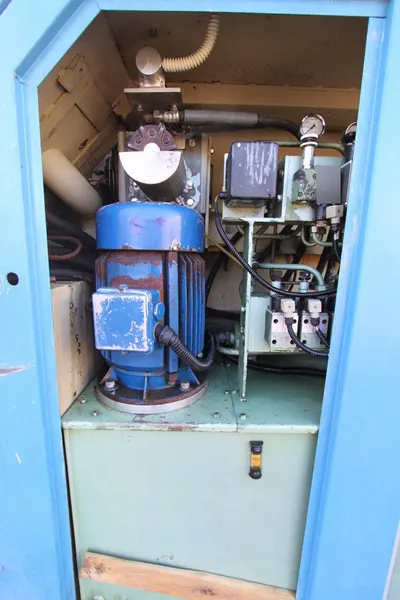

    2. Doors with hydraulic lifting

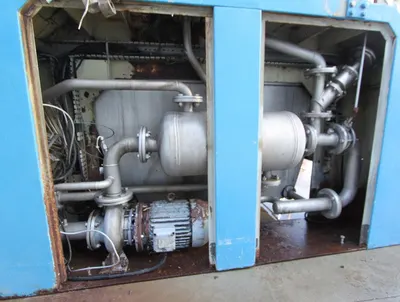

    3. Indirect heating via external heat exchanger
    4. Direct or indirect cooling
    5. Hood with steam coils to prevent condensate dropping
