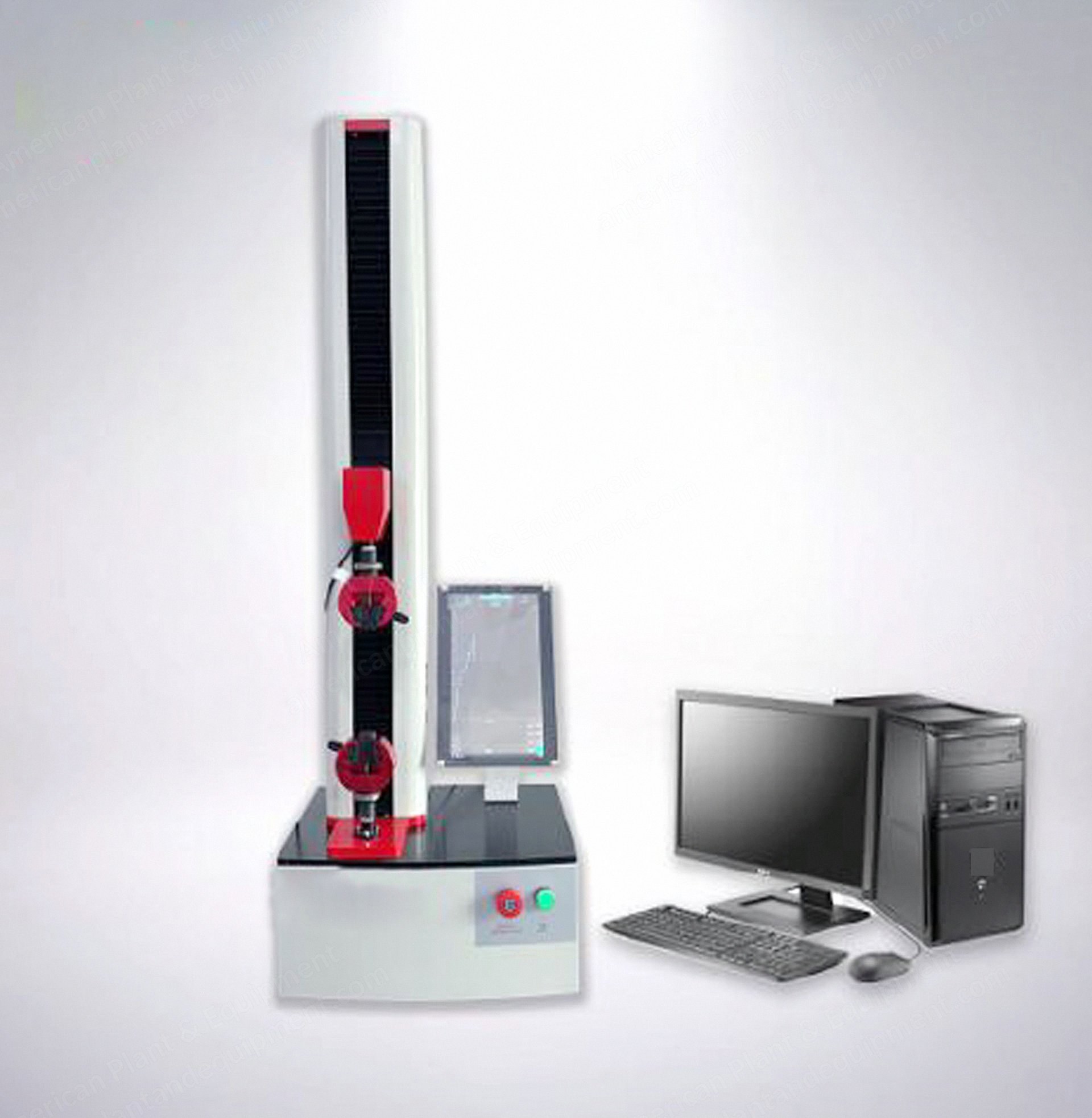

NovaStar, MC240, Medical Universal Tensile Testing Equipment, 200N Capacity, Servo Motor Drive (New)

NovaStar, MC240, Medical Universal Tensile Testing Equipment, 200N Capacity, Servo Motor Drive

Description

  1. Test Standards
    1. GB 19082-2009 technical requirements for disposable protective clothing for medical use (4.5 breaking strength - the breaking strength of materials in key parts of protective clothing should not be less than 45N)
    2. GB 19082-2009 (4.6 elongation at break - the elongation at break of key parts of protective clothing should not be less than 15%)
    3. Self-priming filter respirator for respiratory protection articles (5.6.2 breathing bonnet - breathing bonnet shall be subject to axial tension: disposable mask 10N for 10s, replaceable mask 50N for 10s)
    4. Self-priming filter respirator (5.9 headband - headband should bear the tension: disposable mask 10N for 10s, replaceable half mask 50N for 10s, full mask 150N for 10s)
    5. Self-priming filter respirator (5.10 joints and connecting parts - joints and connecting parts shall be subject to axial tension: replaceable half mask 50N for 10s, full cover 250N for 10s)
    6. GB/T 32610-2016 technical specification for daily protective masks (6.9 breaking strength of the mask belt and the connection between the mask belt and the mask body ≥ 20N)
    7. GB/T 32610-2016 (6.10 fastness to breathing bonnet: no slippage, breakage or deformation shall occur)
    8. YY/T 0699-2013 disposable surgical mask (4.4 mask belt - the breaking force at the connection point between each mask belt and the mask body is not less than 10N)
    9. YY 0469-2011 surgical mask for medical use (5.4.2 mask belt)
    10. GB/T 3923.1-1997 determination of breaking strength and elongation at break of fabrics (strip method)
    11. Disposable rubber inspection gloves (6.3 tensile properties)
  2. Instrument Technical Parameters
    1. Specification: 200N (standard), 50N, 100N, 500N, 1000N (optional)
    2. Accuracy: better than 0.5
    3. Resolution of force value: 0.1N
    4. Deformation resolution: 0.001mm
    5. Test speed: 0.01mm/min ~ 2000mm/min (stepless speed regulation)
    6. Width of sample: 30mm (standard fixture), 50mm (optional fixture)
    7. Clamping of samples: manual (pneumatic clamping can be changed)
    8. Stroke: 700mm (standard), 400mm, 1000mm (optional)
