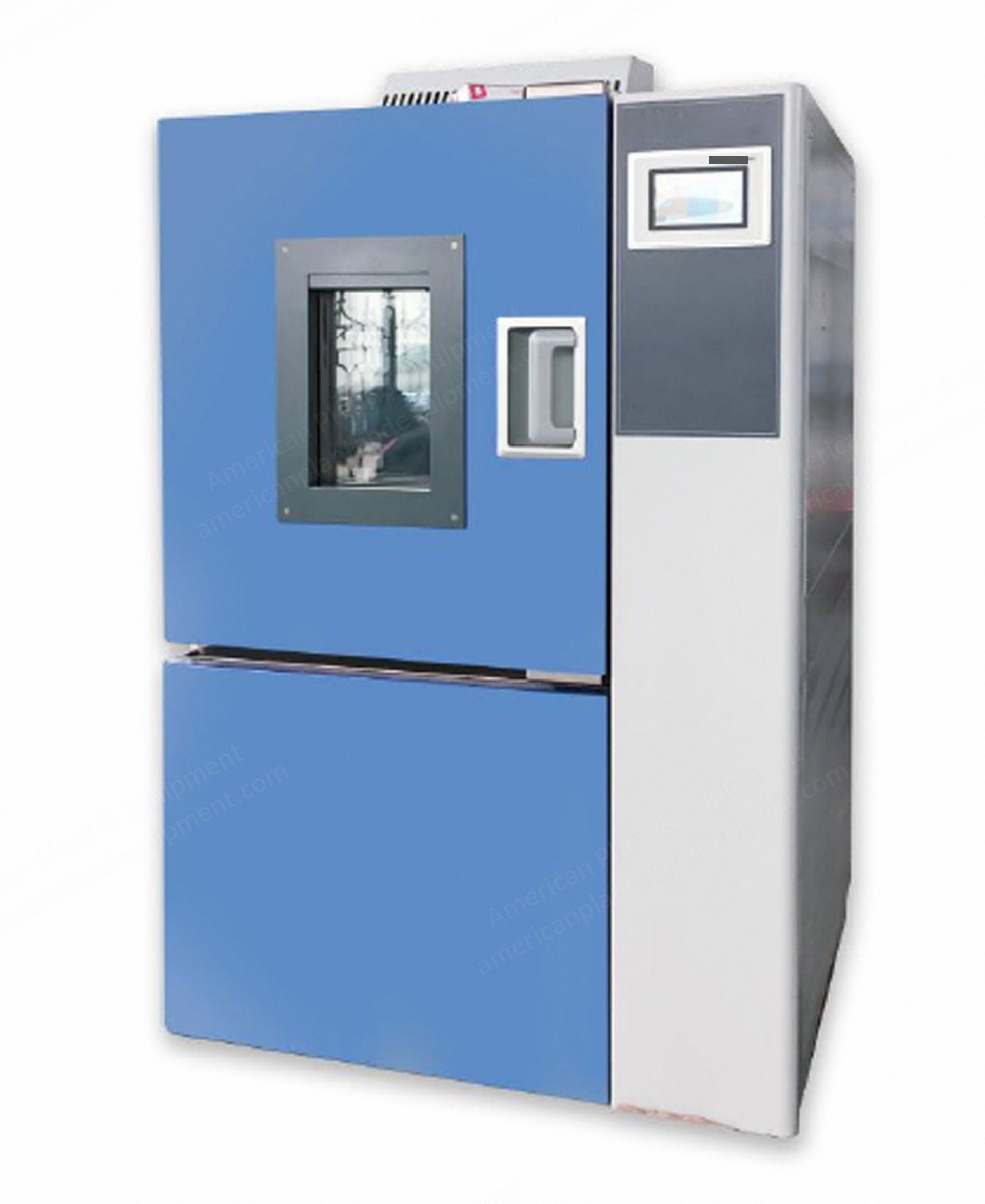

NovaStar, EC121, Constant Temperature and Humidity Chamber, -40°C to 150°C, 50% to 95% RH, 6 Permeable Cups (New)

NovaStar, EC121, Constant Temperature and Humidity Chamber, -40°C to 150°C, 50% to 95% RH, 6 Permeable Cups

Description

  1. Overview
    1. Testing meter with moisture permeable cup
    2. Mainly used to measure the moisture permeability of all kinds of fabrics, including permeable coated fabrics
    3. Structure principle: adopts computer control, creating a constant temperature and humidity test environment
    4. In the constant temperature and humidity test environment, moisture vapor transmission cup places 6 samples into the glass and the rubber gasket seal
    5. The containing hygroscopic agent or water seal is specified by the wet cup placed in the fabric sample temperature and humidity of the environment
    6. The seal moisture vapor transmission cup according to a certain time (including sample and hygroscopic agent or water) to calculate the moisture transmission quality change
  2. Testing Standards
    1. Gb19082-2009 medical primary protective clothing technical requirements guidelines for the selection of yy-t1498-2016 medical protective clothing
    2. Gb/t12704.1 determination of moisture permeability of fabrics – hygroscopic method
  3. Technical Specifications
    1. Temperature control range: -40°C ~ 150°C; resolution: 0.1 °C
    2. Humidity control range: 50% rh ~ 95% rh ±5%
    3. Speed range: 2 mm ~ 60 mm/min
    4. Control precision: temperature <0.1°C; humidity +/-1% rh or less
    5. Cyclic wind speed: 0.02 ~ 0.5 m/s, 0.3 ~ 0.5 m/s
    6. Time control: 1 ~ 9999 h
    7. Moisture permeable area: 2827 mm² (diameter is 60 mm – national standard)
    8. Quantity of permeable cups: 6 gb
    9. Drying box control temperature: room temperature ~ 199 °C
    10. Test time: 1 ~ 999 h
    11. Drying box studio size: 490 x 400 x 215 mm
  4. Included
    1. One main machine
