Rolando, RL14, 2000, Rotary Cutters and 2N Pre-Needle Loom Line

Rolando, RL14, 2000, Rotary Cutters and 2N Pre-Needle Loom Line

Description

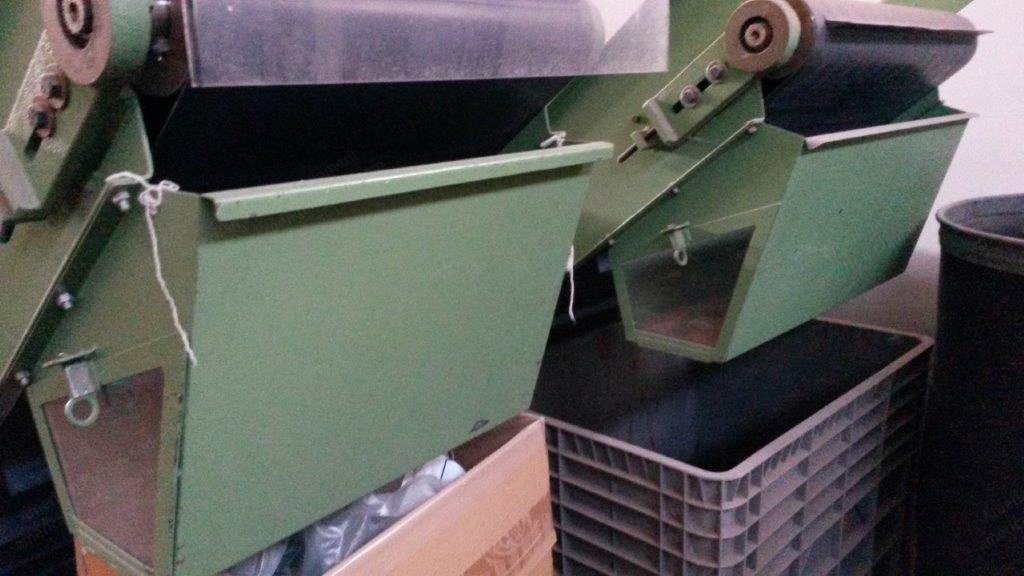

  1. Item 001 - Rolando Model RL14 Rotary Cutter
    1. Code: NW123
    2. Working width: 520 mm
    3. Year: 2000
    4. Inlet with PVC conveyor belt length: 2200 mm
    5. Inlet grooved pressure cylinder with hydraulic pressure adjustment
    6. Blade holder disc diameter: 600 mm
    7. 2 rotating helical blades
    8. 1 fixed counterblade
    9. 2 rotation speeds: 150 and 300 rpm
    10. Cutting length from 10 to 160 mm, variation of the length of the cut in relation to the feeding speed (variable) with motovariator
    11. Exit of the cut material on an inclined PVC conveyor belt driven separately by independent motor
    12. Electrical control panel: 380 V, 50 Hz, 3 phase
    13. Installed motors:
      1. HP 1.0 feeding conveyor belt
      2. HP 6 / 7.5 motor drive blades
      3. HP 1.0 exit conveyor belt
      4. HP 0.5 hydraulic power unit
  2. Item 002 - Rolando Model RL14 Rotary Cutter
    1. Code: NW124
    2. Working width: 820 mm
    3. Year: 2000
    4. Inlet with PVC conveyor belt length: 2200 mm
    5. Inlet grooved pressure cylinder with hydraulic pressure adjustment
    6. Blade holder disc diameter: 600 mm
    7. 3 rotating helical blades
    8. 1 fixed counterblade
    9. 2 rotation speeds: 210 and 420 rpm
    10. Cutting length from 10 to 160 mm, variation of the length of the cut in relation to the feeding speed (variable) with motovariator
    11. Exit of the cut material on an inclined PVC belt driven separately by independent motor
    12. Electrical control panel: 380 V, 50 Hz, 3 phase
    13. Installed motors:
      1. HP 1.0 feeding conveyor belt
      2. HP 12.5 / 15 motor drive blades
      3. HP 1.0 exit conveyor exit belt
      4. HP 0.5 hydraulic power unit

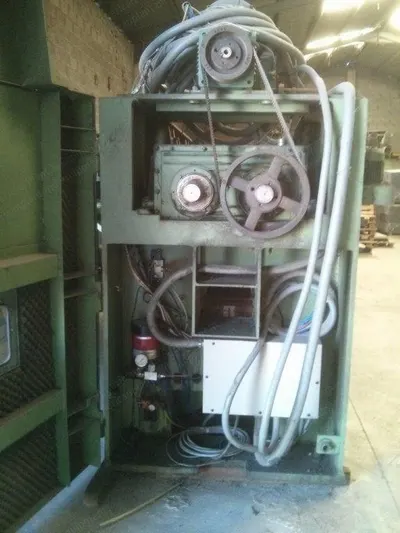

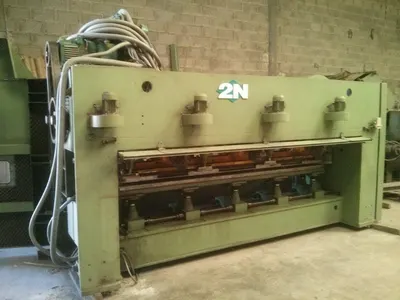

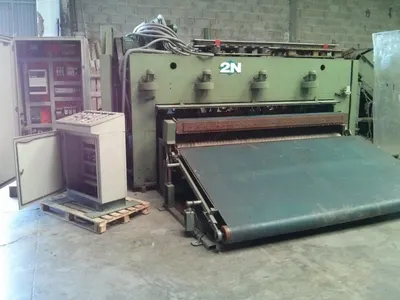

  3. Item 003 - 2n Pre-Needle Loom
    1. Code: NW125
    2. made
    3. Model: NS3000 / 33
    4. Year: 1995
    5. Working width: 2700 mm
    6. Needle density: 3,333 needles / linear m
    7. 60 mm stroke
    8. Speed: 800 rpm
    9. DC motor of 40 kW (strokes)
    10. Motor input: 1.3 kW
    11. Motor output: 1.1 kW
    12. Batt infeed system type 2BS

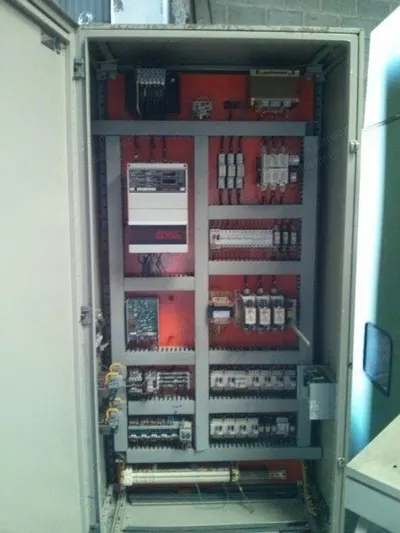

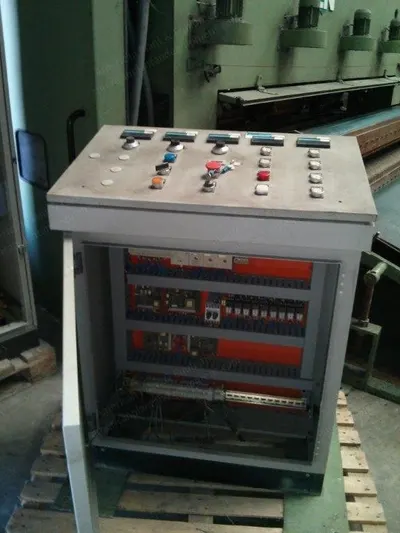

    13. Original electrical control panel

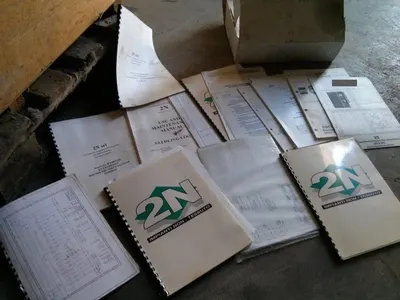

    14. Technical documentation

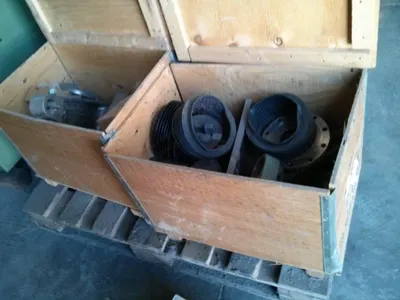

    15. Some spare parts available
    16. 3 sets of needle-boards
