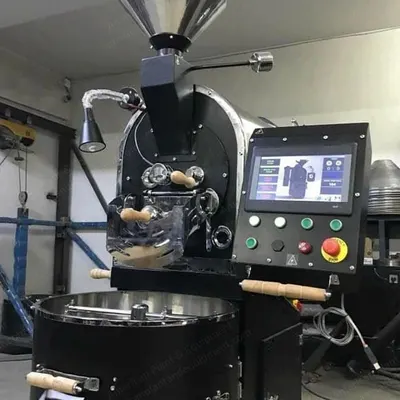

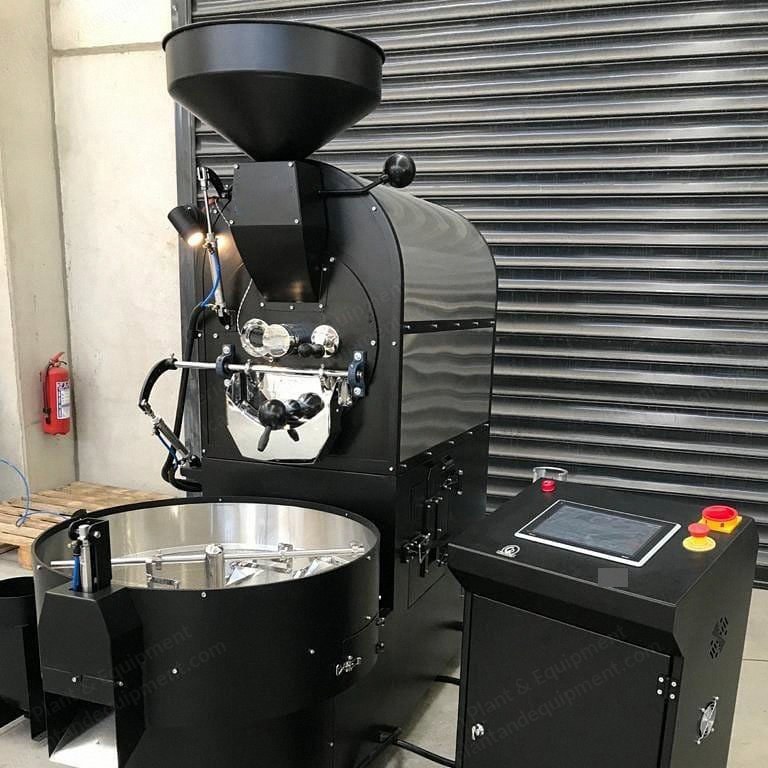

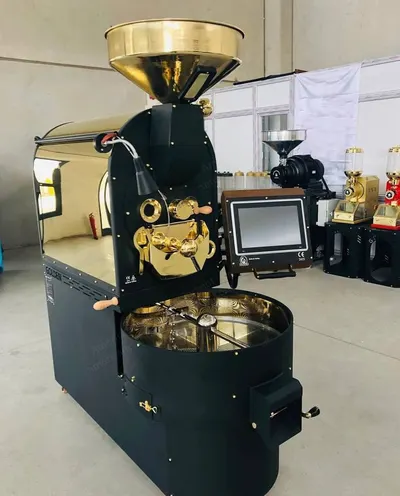

Golden Coffee Roaster, GR 20, 20 kg Batch Capacity, Gas Heated (New)

Golden Coffee Roaster, GR 20, 20 kg Batch Capacity, Gas Heated

Description

  1. Overview
    1. Coffee roaster
    2. Batch capacity: 20 kg green bean
    3. Typical roasting time: 12-16 min
    4. Voltage: 110/220/380 V
    5. Gas type: natural gas / LPG / propane
    6. Dimensions (W x L x H): 1000 x 1400 x 1500 mm
  2. Motor Specifications
    1. Drum motor: 2.3 kW, 1500 rpm
    2. Drum fan motor: 0.37 kW, 1500 rpm
    3. Mixer motor: 0.37 kW, 1500 rpm
    4. Mixer cooler fan motor: 0.75 kW, 1500 rpm
  3. Design and Construction
    1. Specifically designed for specialty coffee roasting, allowing greater flexibility to roast a wider range of profiles for varying methods
    2. Compact design for maximum space usage while creating visual impact
    3. High quality construction using modern manufacturing processes with minimal tolerances
    4. Advanced CAD design of all parts
    5. Carbol steel high quality slippery drum design for optimal heat transfer
    6. Whole body heat insulation with glass wool keeps the heat and increases roasting quality
    7. Stainless steel cooling tray where the beans touch
    8. Sight glass and special design sampling tube and digital temperature make coffee roasting process easy
    9. Slide out draw for capturing and emptying any chaff falling between the front of the drum
    10. Chaff driver for collecting chaff falling through drum
  4. Performance and Technology
    1. Inverter equipped system for safety of motors and quiet operation, allowing to listen to beans crack, not motors
    2. High quality Italian made 3-phase motors and gearboxes with long life bearings
    3. Electrical parts from most famous brands with best quality (Schneider, Siemens, etc.)
    4. Easy airflow control, flame control and drum speed control
    5. Cooling is the most important process of roasting; roasters provide fast cooling
    6. Hot air technology: well isolated combustion chamber below the drum generates hot air by atmospheric large capacity gas burner
    7. Hot air system roasting machine provides same color roasted beans with same consistency and flavor because the drum does not get heat directly from the same point; hot air contacts beans inside the drum equally
    8. PC connection via USB cable and wireless
    9. Suitable for Artisan and Cropster
    10. At the same time cooling and roasting for maximum product output
    11. Audible warning when it reaches set temperature
    12. Heat efficiency
    13. Cost saving by gas blocker
  5. Safety
    1. CE certified gas blocker and UL certified electric components
    2. Gas security system: stops all system in case of any abnormality in gas pressure
    3. Emergency button to turn off all roasting process
    4. All main serviceable areas and components accessible for easy maintenance
    5. Independent thermocouples with digital indicator
  6. Warranty
    1. 2 years (spare parts and service)
    2. Lifetime service warranty
