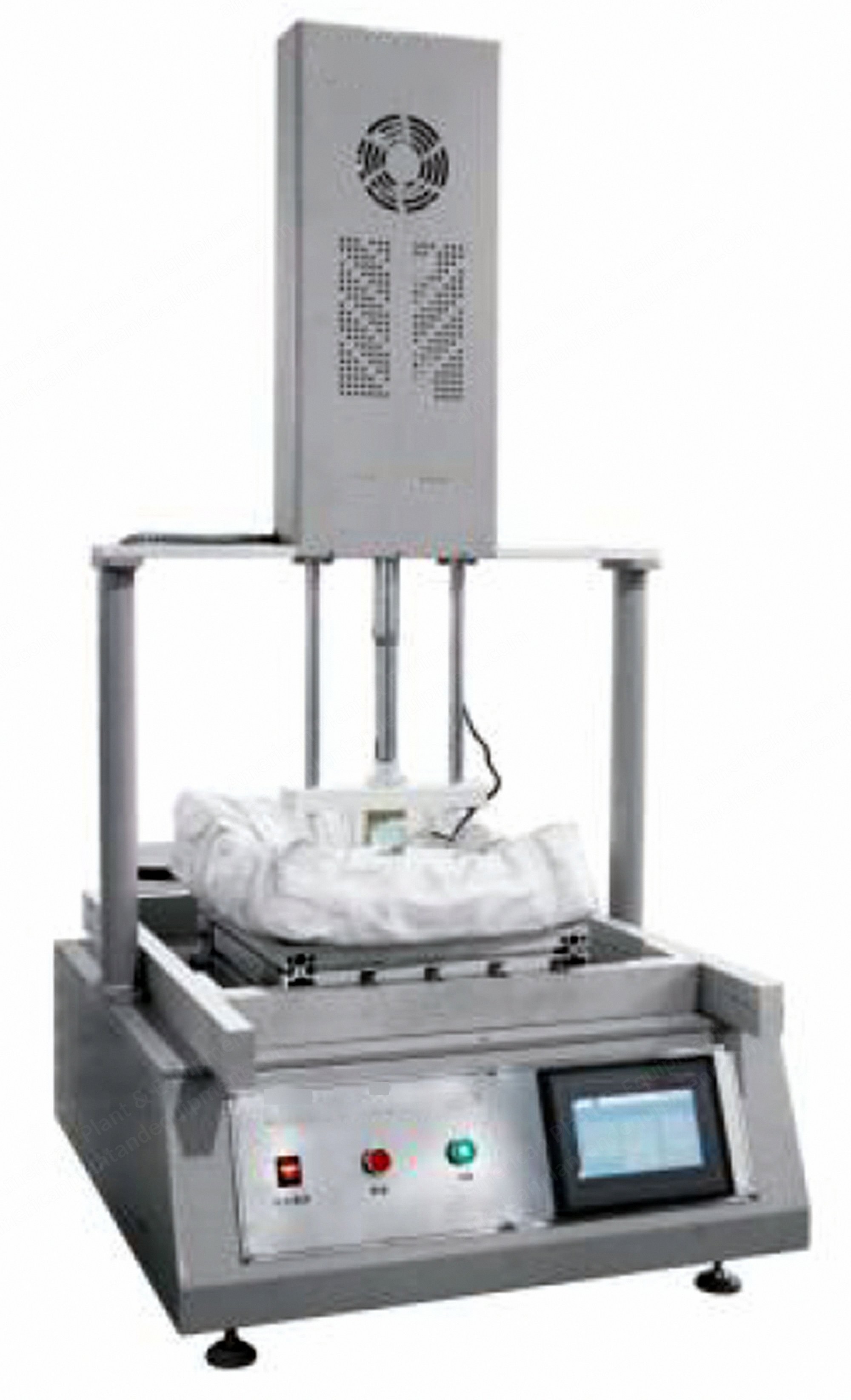

Description Overview Used to assess the durability test for snake spring, spring framework, and package. Complies to the following requirements. Durability Test The durability test can repeat according to the pre-set strength, also the frequency can be set. The machine will stop automatically when times up. Relationship Between Compression Stroke and Pressure Range Under pressure by pre-set schedule, in place to stop. Read the spring force of the stroke on the pressure gauge, the display shows the stroke value. Spring Pressure Testing Under the Specific Amount of Compression The machine will stop when the platen press to the set pressure. The length of the compression stroke of the pressure will display on the screen. Specifications Maximum pressure: 100 kg Maximum stroke: 150 mm Pressure sensor accuracy: 0.3% FS Stroke accuracy: ±0.2 mm Display: LCD digital, 0~999,999 times Machine dimension: (L x W x H) about 1100 x 1100 x 1200 mm Weight: about 120 kg
