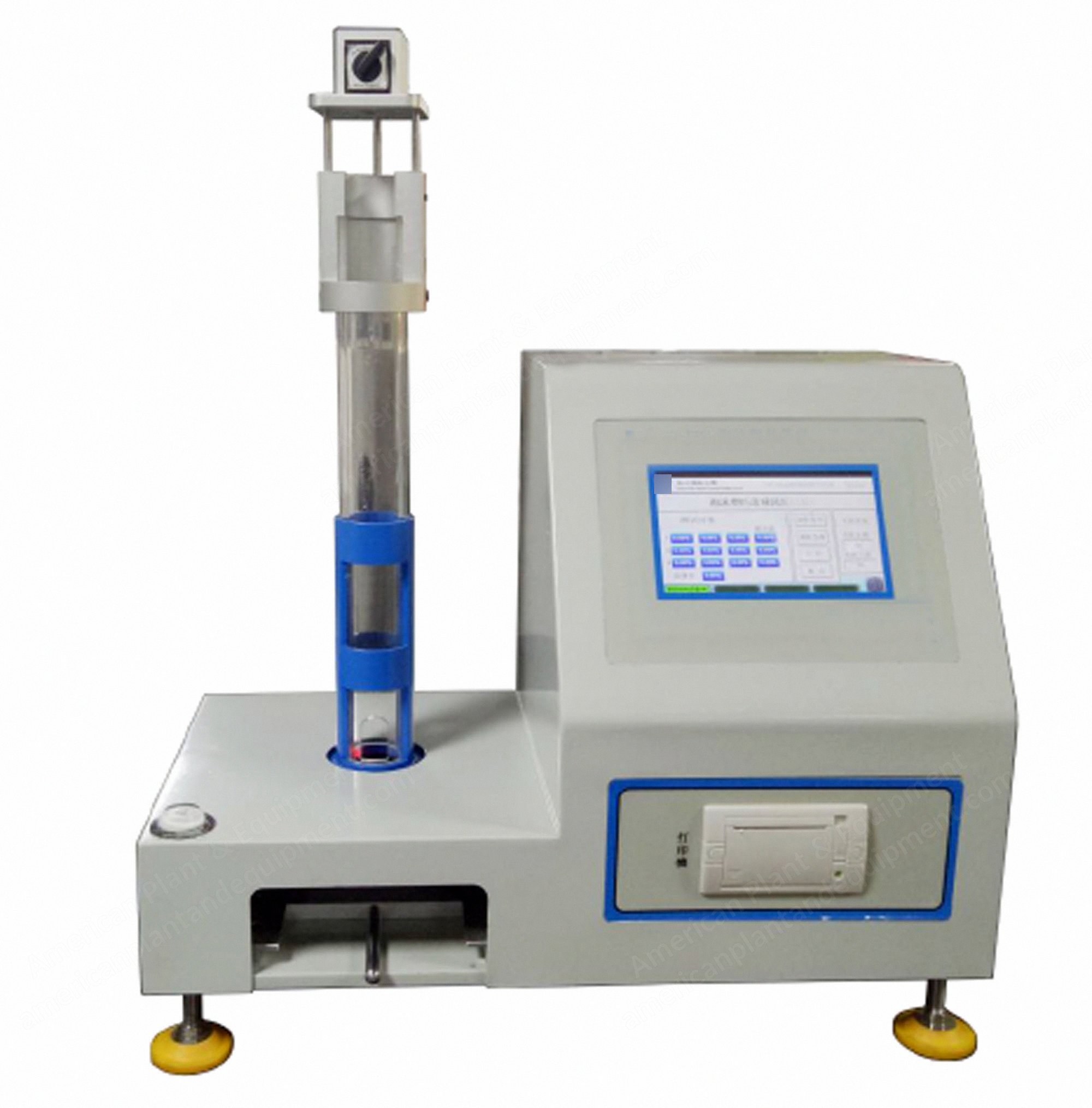

NovaStar, MC253, Foam Rebound Tester, Drop Height 500mm, ISO 8307, ASTM D 3574
Scroll to zoom
100%
Description
Overview
Designed according to ISO 8307 and ASTM D 3574 test standards.
Through a specified diameter and mass ball falling on the foam specimen from a certain height, calculates the percentage between maximum drop height and rebound height.
Indicates foam resilience by spring rate.
Uses plc control, lcd display and with usb port to output test results.
Design Standard
ISO 8307, ASTM D 3574.
Standard Features
Drop height (adjustable): 500 ± 0.5% mm (ASTM ISO).
Ball diameter: 16 ± 0.05 mm.
Accuracy: less than 1.5%.
Display: lcd touch screen interface.
Test result: average rebound height, average spring rate.
Sample dimension: (l x w x h) 100 mm x 100 mm x 50 mm.
Power: ac220v ± 10%, 50/60 hz, single phase.
