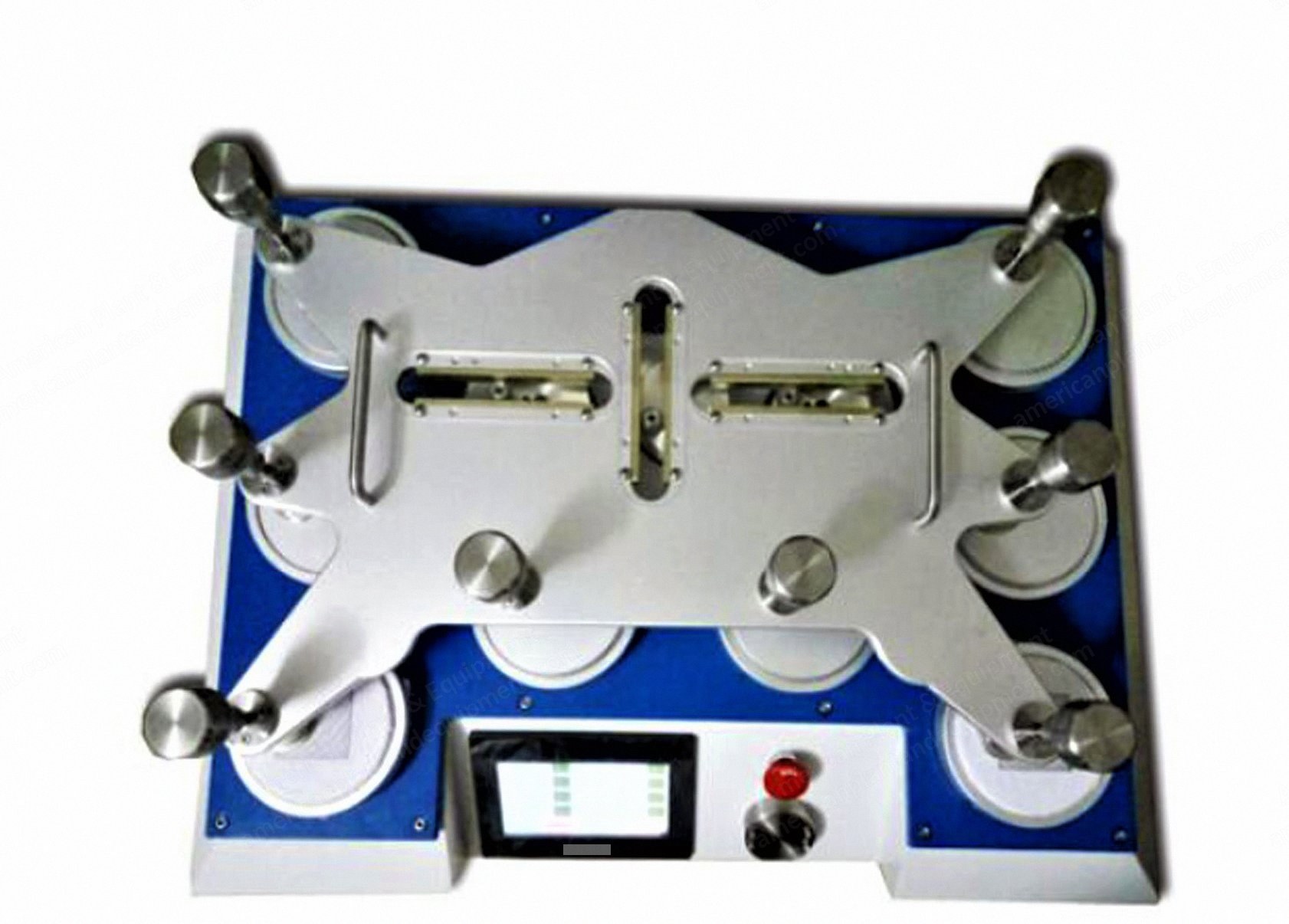

NovaStar, MC257, Martindale Abrasion Tester, 6 or 8 Heads, 50 rpm, 220V (New)

NovaStar, MC257, Martindale Abrasion Tester, 6 or 8 Heads, 50 rpm, 220V

Description

  1. Overview
    1. Used for resistance testing of textile and outside layer, lining or under layer of footwear or similar fabric.
    2. Tests classified as dry test or wet test.
    3. Lissajous method of measurement.
    4. Test standards: ASTM D4970, ISO12945-2 and other pilling degree test; ASTM D4966, ISO12947 and other fabric abrasion tests.
  2. Product Features
    1. LCD touch screen, clear and easy to operate.
    2. With pill and abrasion testing progress, can meet various international standards.
    3. Use reduce and increase counting testing method for easy operation.
    4. With imported PLC, reliable and suitable for long time test.
  3. Item 001 Specifications
    1. Stations: 6 stations.
    2. Interface: LCD display.
    3. Count display: projected count 0 to 999999, cumulative count 0 to 999999.
    4. Maximum stroke: 24 ± 0.5 mm, 60.5 ± 0.5 mm.
    5. Loading: holder 200 ± 1 g, dress material counterweight 395 g ± 2 g, furnishings/leather material counterweight 594 g ± 2 g, stainless steel butterfly slice 260 g ± 1 g.
    6. Abrasion chunk effective rub diameter: a model 200 g (1.96 N, 9 kPa), abrasion head 0 28.8 to 0.084 mm.
    7. Revolution speed: 50 rpm (± 2 rpm).
    8. Sample loading pressure hammer: 2385 g ± 10 g.
    9. Consumables: baize 6, testing cotton 6.
    10. Diameter of abrasion fabric: 140 mm.
    11. Diameter of specimen: 38 mm.
    12. Power: AC 220 volts, 60 or 50 Hz (as per customer).
    13. Overall dimensions: 600 x 650 x 320 mm.
    14. Weight: 120 kg.
  4. Item 002 Specifications
    1. Heads: 8.
    2. Interface: LCD display.
    3. Count display: projected count 0 to 999999, cumulative count 0 to 999999.
    4. Maximum stroke: 24 ± 0.5 mm, 60.5 ± 0.5 mm.
    5. Loading: holder 200 g ± 1 g, dress material counterweight 395 g ± 2 g, furnishings/leather material counterweight 594 ± 2 g, stainless steel butterfly slice 260 ± 1 g.
    6. Abrasion chunk effective rub diameter: a model 200 g (1.96 N, 9 kPa), abrasion head 0 28.8 to 0.084 mm.
    7. Revolution speed: 50 rpm ± 2 rpm.
    8. Sample loading pressure hammer: 2385 g ± 10 g.
    9. Consumables: baize 8, testing cotton 9.
    10. Diameter of abrasion fabric: 140 mm.
    11. Diameter of specimen: 38 mm.
    12. Power: AC 220 volts, 60 or 50 Hz.
    13. Overall dimensions: 600 x 885 x 410 mm.
    14. Weight: 160 kg.
