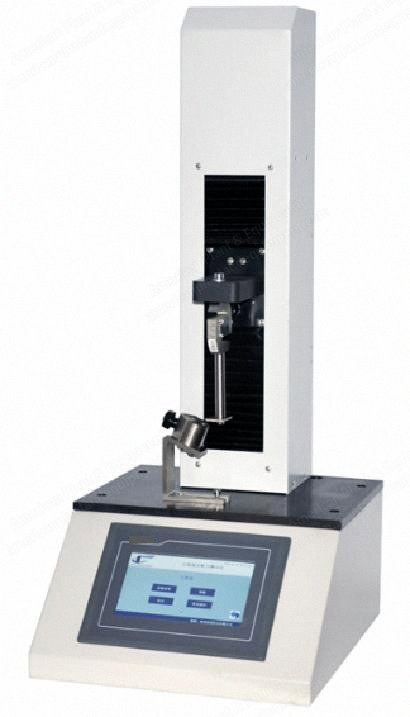

NovaStar, MC258, Medical Packaging Tester, 200N, 1-500mm/min, 400x340x800mm (New)

NovaStar, MC258, Medical Packaging Tester, 200N, 1-500mm/min, 400x340x800mm

Description

  1. Overview
    1. Item 001: MC258 medical packaging tester designed for the measurement of force properties of a variety of medical packaging materials, such as tensile, compression, strength, tear, opening, penetration, breaking and pull test of polymers, bags, ampoule, rubber stopper, syringe, needle etc.
    2. With multiple fixtures available, this is a versatile and indispensable to medical packaging facilities.

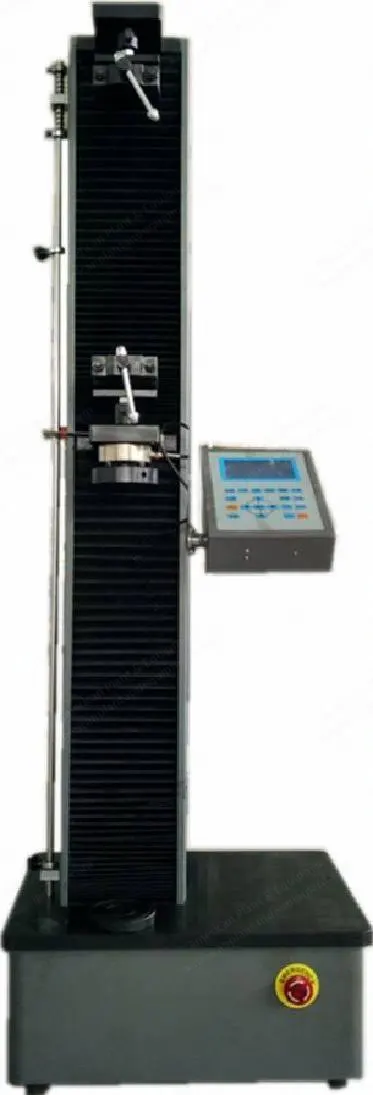

    3. Item 002: TCT-01 tensile tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

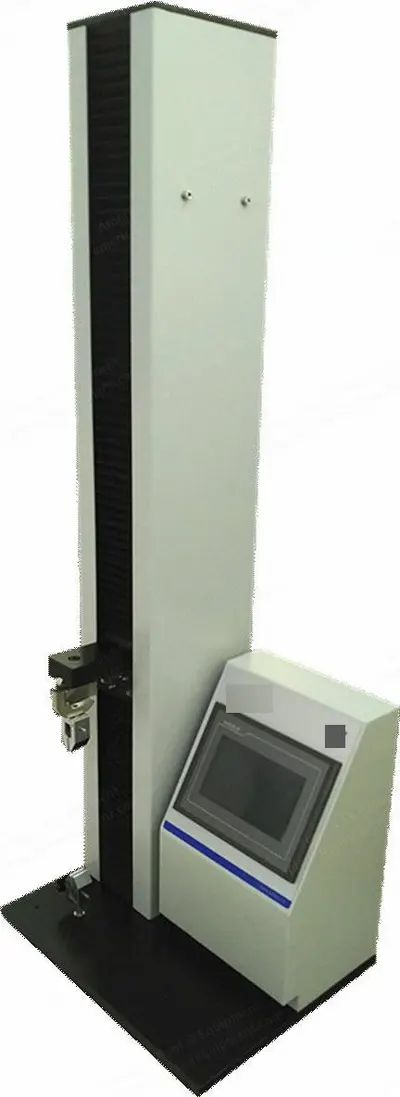

    4. Item 003: TST-01 tensile tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
  2. Specifications
    1. MC258 test range: 200N (standard)
    2. MC258 speed: 1-500 mm/m
    3. MC258 stroke: 350 mm
    4. MC258 dimension: 400(L) x 340(W) x 800(H) mm
    5. MC258 power: AC 220V 50 Hz
    6. TCT-01 max test force: 500N (or as required)
    7. TCT-01 force accuracy: better than ±1%
    8. TCT-01 displacement resolution: 0.01 mm
    9. TCT-01 displacement accuracy: better than ±1%
    10. TCT-01 test speed range: 1-500 mm/min
    11. TCT-01 tensile stroke: 600 mm / 1000 mm
    12. TCT-01 compression stroke: 600 mm / 1000 mm
    13. TST-01 test range: 0-500N (standard, 50N, 100N, 200N are optional)
    14. TST-01 test range: 0-500N (other range available)
    15. TST-01 stroke: 800 mm (other stroke available)
    16. TST-01 test speed: 1-500 mm/min
    17. TST-01 displacement accuracy: 0.01 mm
    18. TST-01 accuracy: 0.5% F.S.
    19. TST-01 sample width: 27 mm (other optional)
    20. TST-01 control: PLC and human machine interface
    21. TST-01 data output: screen, microprinter (optional), RS232 (optional)
    22. TST-01 standards: ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904, ASTM F88, ASTM D1938, JIS P8113
  3. Features
    1. MC258: HMI touch screen operation
    2. MC258: PLC control realizes precise control of the driving system and the overall performance of the instrument
    3. MC258: precision ball screw for accurate speed and displacement
    4. MC258: test speed is adjustable
    5. MC258: dual direction tests are available
    6. MC258: multiple fixtures available for multiple types of pulling and compression tests
    7. MC258: limiting device and automatic returning
    8. MC258: microprinter
    9. MC258: professional software (optional)
    10. TCT-01: high precision digital speed regulating system and precision lead-screw
    11. TCT-01: key operation and LCD real time display
    12. TCT-01: cross beam speed and vertical position adjustment
    13. TCT-01: micro printer (optional)
    14. TCT-01: dual movement of tensile and compression
    15. TCT-01: multiple fixtures available
    16. TST-01: 7 inch TFT touch screen operation
    17. TST-01: PLC control
    18. TST-01: precision ball screw
    19. TST-01: test speed adjustable
    20. TST-01: multiple testing items can be chosen
    21. TST-01: multiple fixtures available
    22. TST-01: data storage and analysis
    23. TST-01: limiting device and automatic returning function
  4. Applications

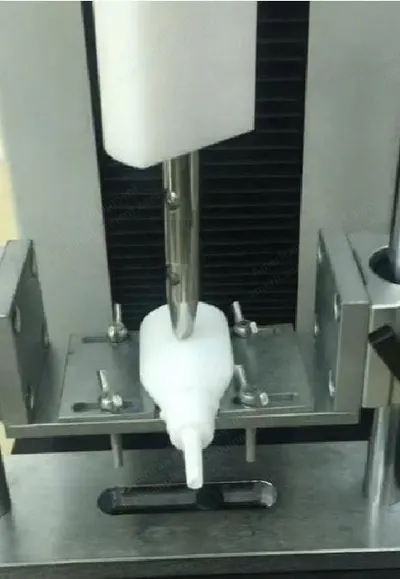

    1. Penetration test of rubber stoppers in antibiotic bottles and hypodermic needles

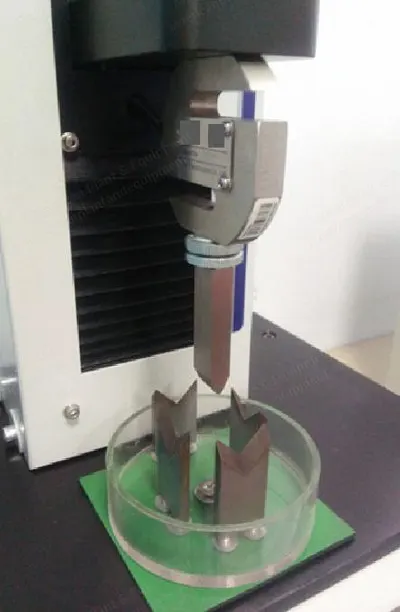

    2. Fracture strength test of ampoule bottles
    3. Leak test of plastic packages under external pressure

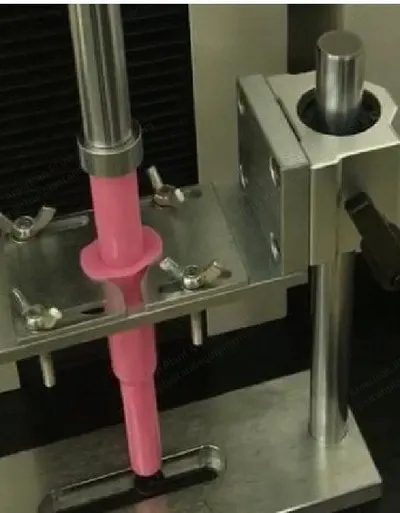

    4. Connection force test between hypodermic needle and needle hub/cap
    5. Bottle stiffness test
    6. Bottle lid puncture test with animated finger

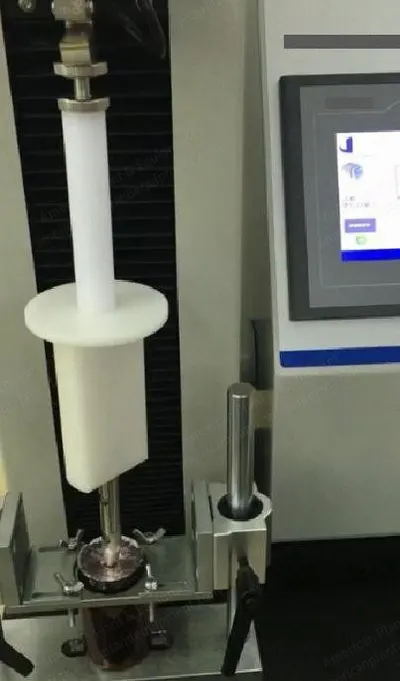

    7. Sliding resistance test of pistons
    8. Leak test of plastic packages
  5. Setting Parameters (TCT-01)
    1. Test speed: 500 mm/min
    2. Return speed: 300 mm/min
    3. Auto return: no
    4. Width/diameter: 10000 mm
    5. Thickness: 001.00 mm
    6. Gauge length: 100.00 mm
    7. Test operation: tensile
    8. No.: 1
    9. Speed: 500 mm/min
    10. Force: -000.2N
    11. Displacement: 100.00 mm
    12. Peak: 064.71 N
    13. Strength: 0006.4 MPa
    14. Elongation: 0062%
