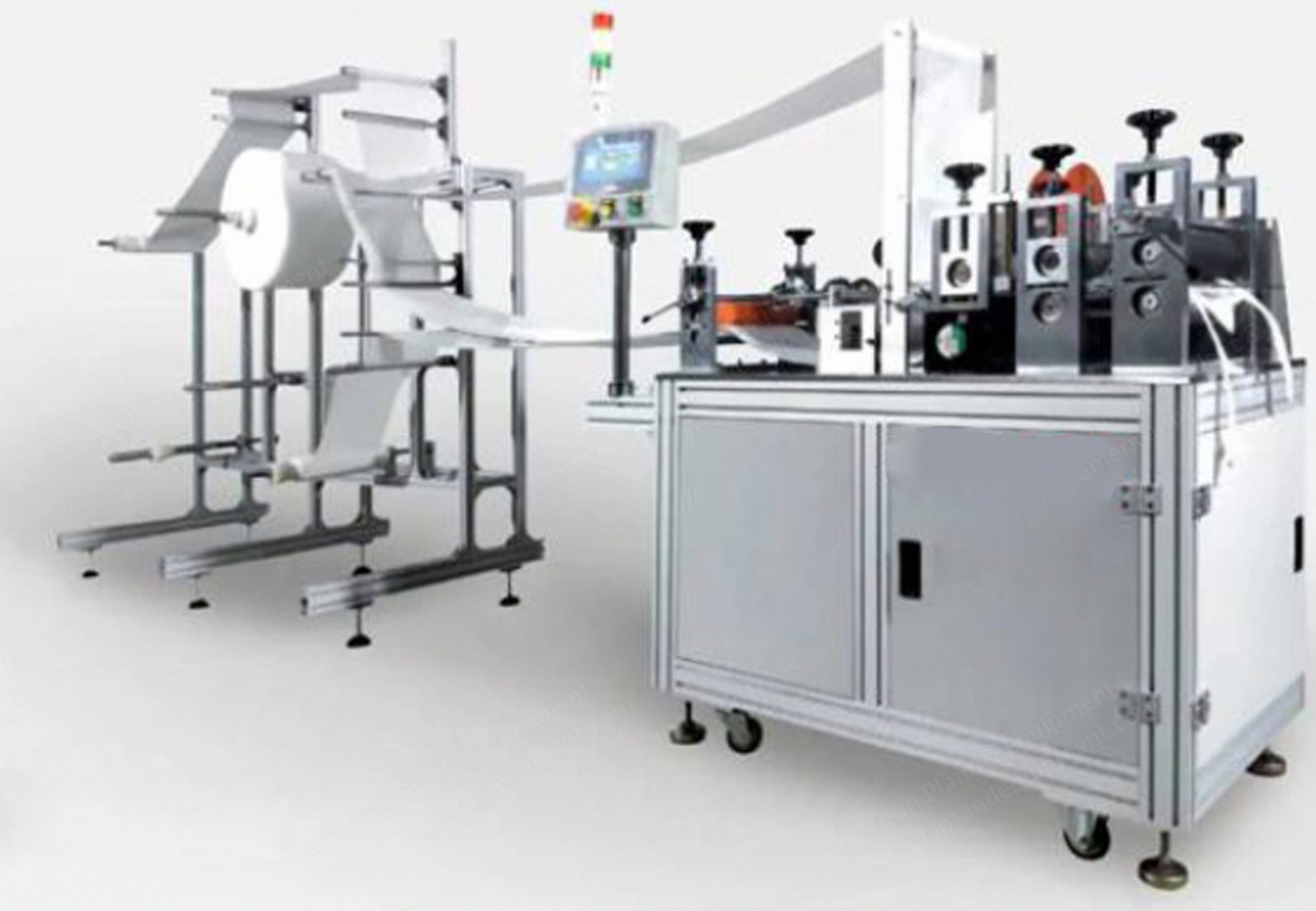

NovaStar, FM260, Semi-Automatic N95 Mask Machine, 40 to 50 pcs/min, 4800x1500x2000mm (New)

NovaStar, FM260, Semi-Automatic N95 Mask Machine, 40 to 50 pcs/min, 4800x1500x2000mm

Description

  1. Item 001: Semi-Automatic N95 Mask Machine (Inner Nose Bridge)
    1. Model: FM260
    2. With inner nose bridge welding
    3. Does not include ear loop welding machine and edge sealing machine (additional options)
    4. This machine is an automatic KN95 mask filming making machine, including automatic feeding, cutting, built-in nose bridge, ultrasonic fusion, slicing and other automatic features.
    5. Note: The equipment does not include welding ears belt and edge sealing functions.
  2. Specifications
    1. Machine name: KN95 mask filming making machine
    2. General function: KN95 mask (filming)
    3. Size: W4800mm x H2000mm x D1500mm
    4. Height from floor to workbench: 850mm (adjustable)
    5. Production capacity: 40 to 50 pcs/min
    6. Width: 260mm
    7. Style of nose bridge: Built-in
    8. Control method: PLC (HMI and independent R8DD)
    9. Weight: 1200 kg
    10. Installation method: Fixed installation
    11. Body material: Aluminum alloy
    12. Environmental requirements: Cleanroom class 10 or less
    13. Power supply: Single phase AC220V/50Hz/3800W flat three-pin plug
  3. Features
    1. Using high-precision servo motor, with fast speed, smooth movement and high precision
    2. The level of the material stand is adjustable
    3. High versatility and quick product changing
    4. Using high rigidity structure to improve the overall stability of the equipment
  4. Item 002: Semi-Automatic Mask Machine (Outer Nose Bridge)
    1. Model: N95B
    2. Without outer nose bridge (additional options)
    3. Does not include welding, ear loop welding machine and edge sealing machine (additional options)
    4. This model does not include the sealing welding machine, nose bridge welding machine, or ear belt welding machine.
    5. The first process: Folding N95 mask automatic filming machine
    6. Filming machine dimensions: 3500 x 1500mm (length x width)
    7. Power supply: 220VAC 50Hz
    8. Efficiency: 30 to 50 pcs/min
    9. The principle of ultrasonic automatic sealing welding is incorporated. The machine completes the welding and rolling process of the edges of the mask. Place the mask body on the machine conveyor. After the ultrasonic flower wheel is pressed and welded, it is cut off and outputs the finished product. Only one person needs to put the masks on the conveyor belt of the machine, and the rest of the work will be completed automatically.
