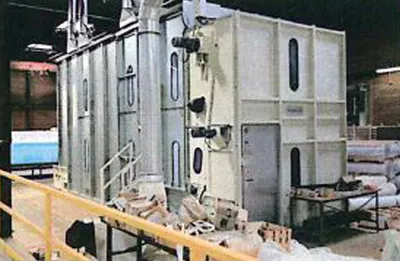

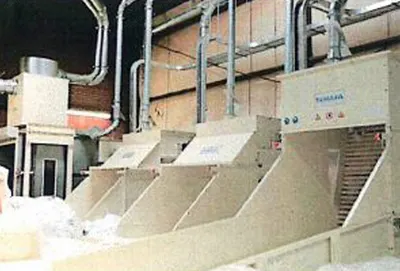

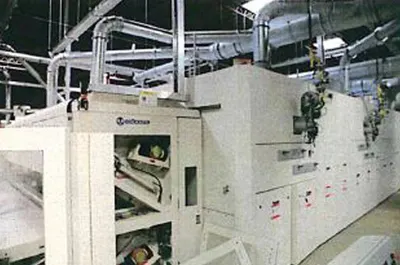

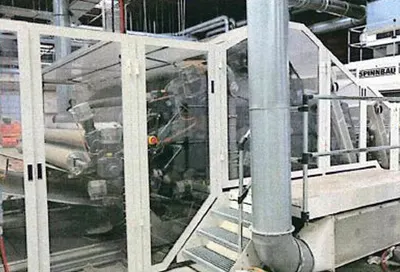

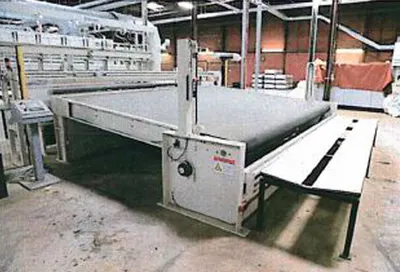

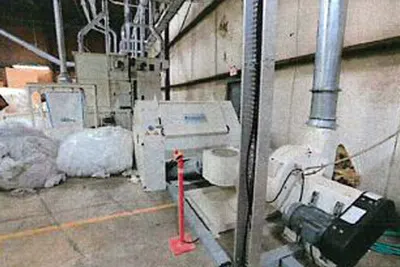

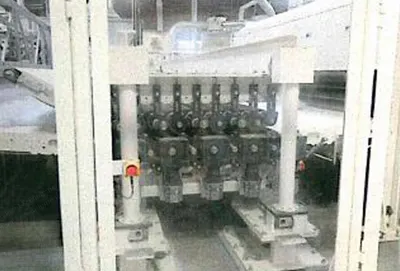

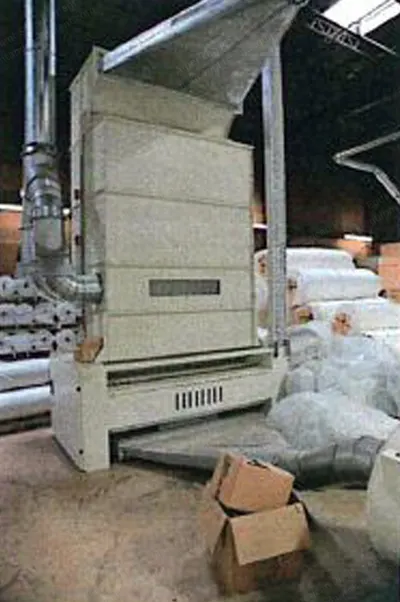

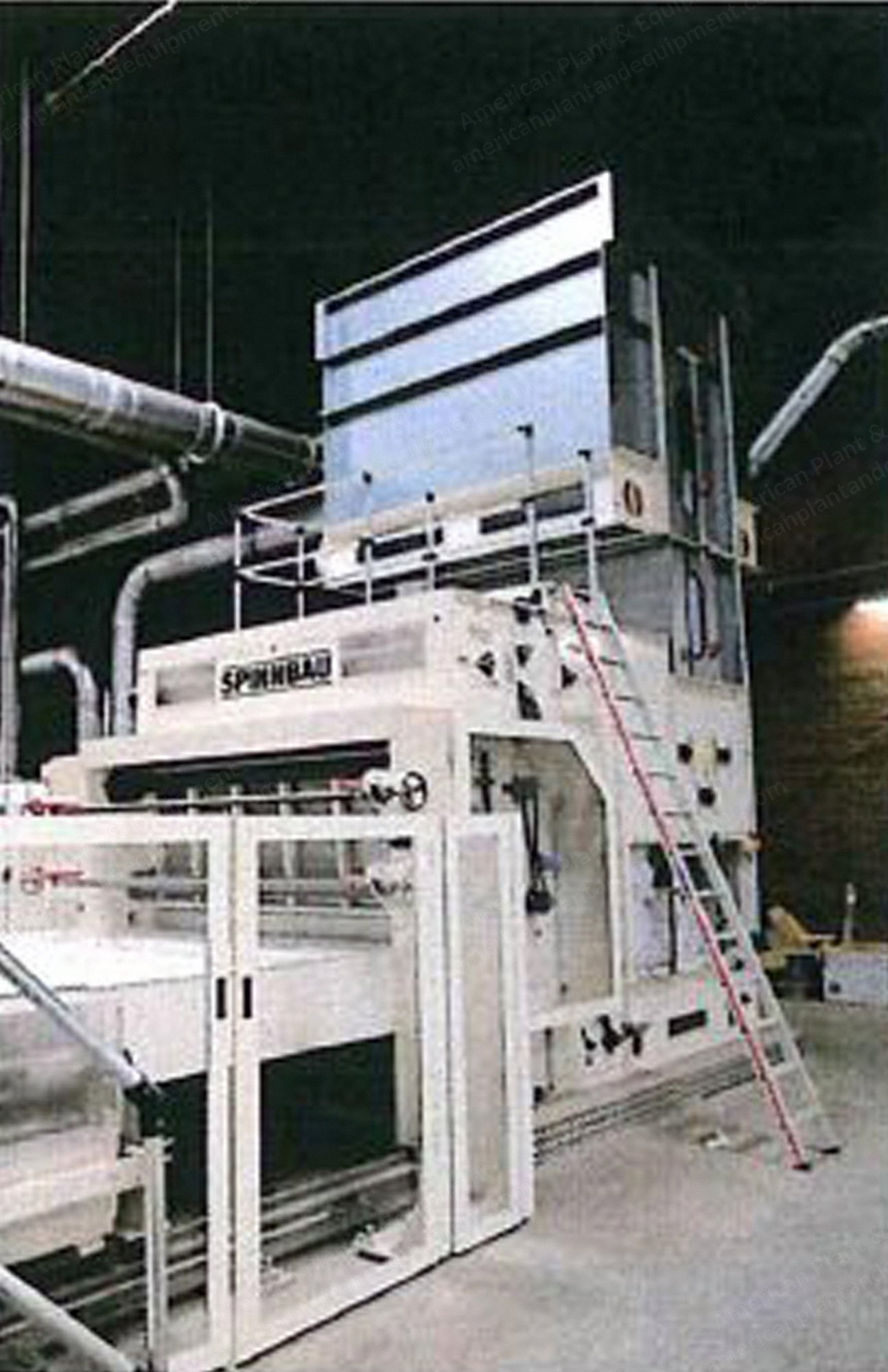

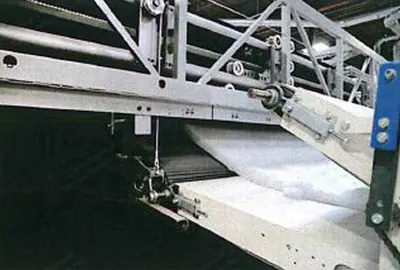

Description Overview Carding line Year: 2013 Installed 2014 Like new, little run time Blend Line 4 hopper Temafa blend line, 1600 mm wide 1 hopper with condenser fed from trim machine Carding willow – 800 mm wide feed belt and 1200 mm wide – Temafa Temafa Mixmaster blending bin – 3000 mm wide x 8000 mm long x 4600 mm high (fill height 3000 mm), 72 cubic meter capacity Temafa fine opener – 2000 mm wide with pins Card Feeding 3000 mm Spinnbau card feeding unit – feed trunk, vibrating chute, weight belt 708 mm breast section with 3 workers and strippers 1500 mm main with 5 workers and strippers and 2 x 708 mm doffers 1 foundation and platforms Web Control Dilo Profiline – batt weight control system Mahlo weight measuring unit – Qualiscan CMS-12 Crosslapper Dilo layer crosslapper – type DLS 30/60 – 3000 mm infeed and up to 6000 mm laydown Max web height 650 mm Maximum speed 125 m/min Lap Drafter Spinnbau lap drafter type VST 19 – max 6000 mm working width 9 roller pairs Lifting device to allow for 600 mm clearance 159 mm roller diameter Infeed height 650 mm Thermobonding Oven Bruckner thermobonding oven – 5000 mm oven with 3 heating and 2 cooling zones Magnetic belt 3 natural gas Maxon burners Slitting and Cutting Slitting – 9 position Bruckner crush cutter slitting heads with pneumatic lifting, 450 mm knife diameter Cross cutter – rotary cutter style with clamping, capable of 3 cuts/minute for materials up to 200 mm thick Winding Ascending batch style winder Max roll diameter of 1200 mm 3000 mm driven feed conveyor Mandrel guidance system, manually adjustable brake system for controlling tensile force and compaction Filter House Temafa filter house – TFS 50 Max flow 50,000 cubic meter/h Electrical 3 x 480 V / 60 Hz Controls 110 V AC / 24 V DC Siemens PLC
