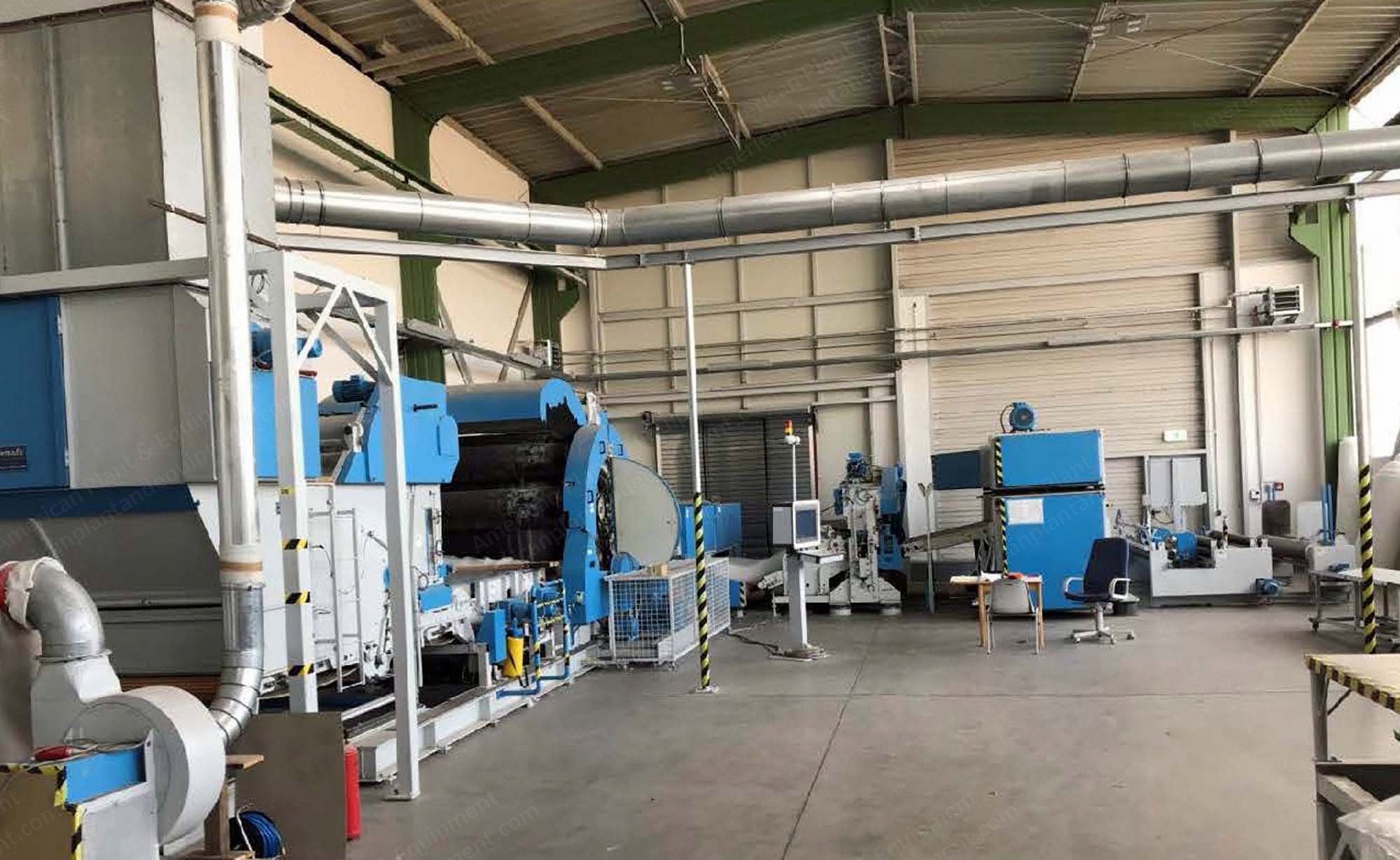

Needle Punch Line, Exit Width 2200/2500mm, Capacity 400 kg/h

Needle Punch Line, Exit Width 2200/2500mm, Capacity 400 kg/h Sold

Description

  1. Overview
    1. Needle punch line
    2. Exit width 2200/2500 mm
    3. Overhauled and updated in 2012/2015
    4. Technology control by S7
    5. Designed and used for natural fibres, glass fibres, recycled fibres 100% or mixed with PP
    6. For basic materials of the automotive industry
    7. Capacity: 400 kgs
  2. Item 001 - Bale Opener
    1. 2 bale opener brand Temafa
    2. Working width: 1400 mm
    3. Wooden lattice belts
    4. Wooden transport lattice
    5. Very good condition
    6. Individual control of opening and mixing

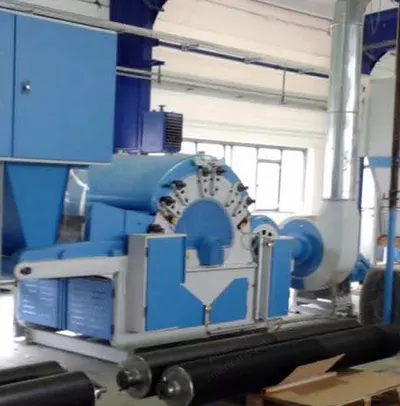

  3. Item 002 - Willow
    1. Willow brand Temafa
    2. 4 pairs stripping and working rollers
    3. Working width: 1400 mm
    4. With ventilator and pipe system to chute feed and hopper feeder

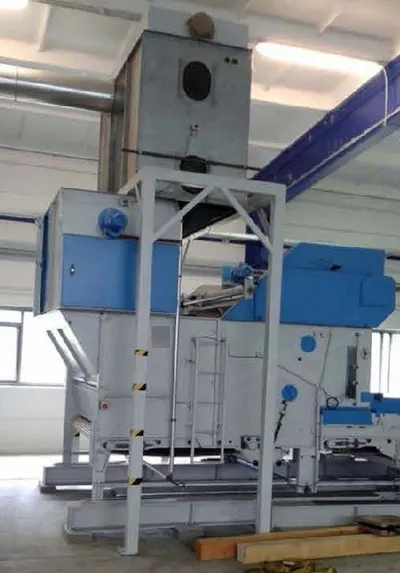

  4. Item 003 - Chute Feed
    1. Chute feed brand Temafa
    2. Working width: 2700 mm
    3. Control of filling height by ultrasound sensors

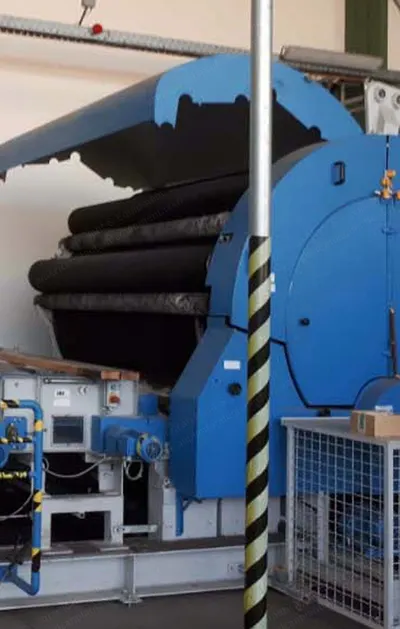

  5. Item 005 - Carding Machine
    1. Carding machine
    2. Working width: 2500 mm
    3. 5 pairs stripper and worker installed
    4. 1 pair stripper/worker separate delivery
    5. Individual drive systems
    6. Rigid card clothing
    7. Main drum 1600 mm diameter
    8. Doffer drum 1200 mm and fly comb

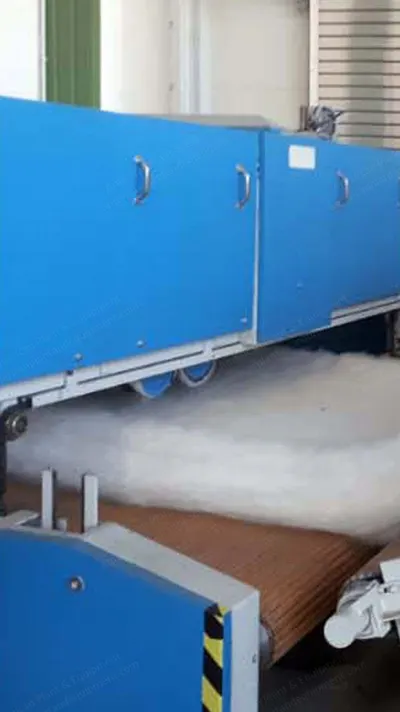

  6. Item 006 - Cross Lapper
    1. Cross lapper
    2. Exit belt as wooden lattice belt
  7. Item 007 - Pre-Needle Machine
    1. Pre-needle machine brand Dilo Modi DVM25
    2. Working width: 2500 mm
    3. All belt systems use wooden lattice belts
    4. 1 needle board needling from top to bottom

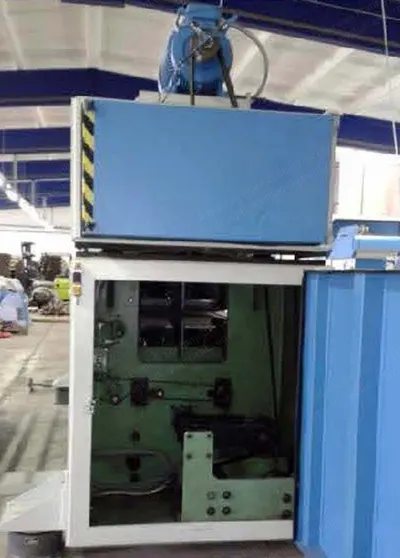

  8. Item 008 - Needle Machine
    1. Needle machine brand Asselin
    2. Working width: 2200 mm
    3. 4 needle bar machine (2 top/2 bottom)
    4. Alternating and simultaneous working methods by modification of driving belt ways
    5. Pull-out rollers at exit
    6. Stroke height 40 mm

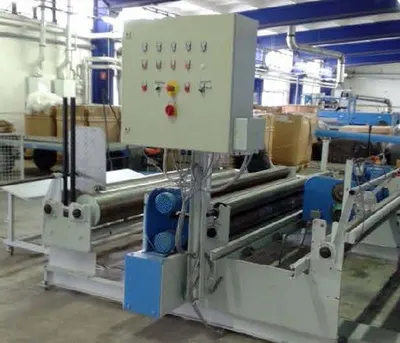

  9. Item 009 - Rolling Machine
    1. Rolling machine
    2. 3 longitudinal cutter (top and bottom driven)
    3. 1 cross cutter

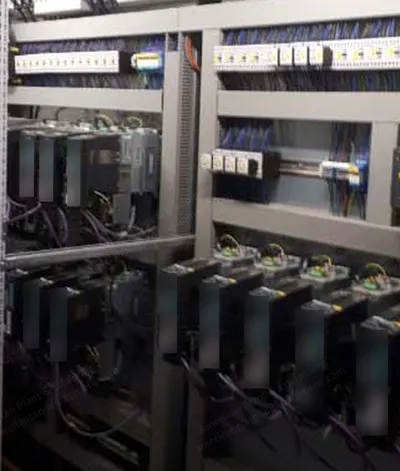

  10. Control of the Line
    1. Separate system for bale opening and mixing
    2. S7 control for complete line
    3. Up to date level, airconditioned, control cabinets close to machine or separate
  11. Condition
    1. Machines are in very good and updated condition
