NovaStar, PC316, Ball Fiber Production Filling Line, Capacity 200kg/h (New)

Name: NovaStar, PC316, Ball Fiber Production Filling Line, Capacity 200kg/h
Brand: NovaStar
SKU: T-6876

‹ Go Back Next Product ›

Description

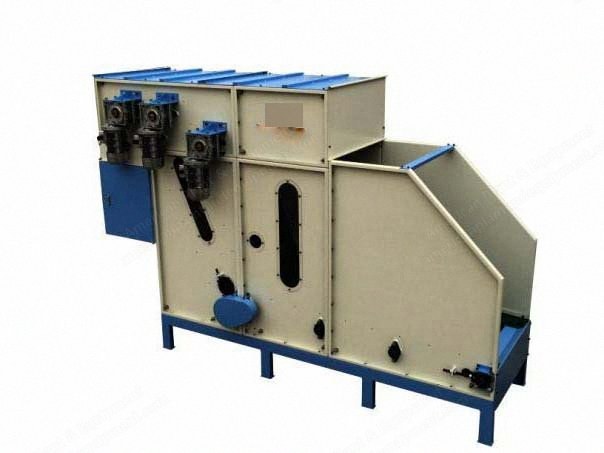

Item 001: F3200B Bale Opening Machine
1. Capacity: 200 to 350 kg/h
2. Power: 4.07 kW
3. Weight: 1180 kg
4. Voltage: 480 V, 60 Hz, 3 phase
5. Dimension: 3200 x 1300 x 2200 mm
Item 002: K320 Fiber Opening Machine
1. Capacity: 180 to 220 kg/h
2. Power: 4.55 kW
3. Weight: 500 kg
4. Voltage: 480 V, 60 Hz, 3 phase
5. Dimension: 1500 x 1000 x 1050 mm
Item 003: L31 Ball Fiber Filling Machine
1. Capacity: 200 kg/h
2. Power: 12.75 kW
3. Weight: 1450 kg
4. Voltage: 480 V, 60 Hz, 3 phase
5. Dimension: 2000 x 1000 x 1100 mm
Item 004: Ball Collector
1. Dimension: 590 x 450 x 900 mm
Item 005: Mixer
1. Dimension: 2450 x 1000 x 2000 mm
Item 006: Automatic Filling Plate
1. Capacity: 200 kg/h
2. Power: 11 kW
3. Weight: 1300 kg
4. Voltage: 480 V, 60 Hz, 3 phase
5. Dimension: 3200 x 1950 x 2200 mm (adjusted)
Item 007: Control Cabinet
1. According to reality
Item 008: Transport Blower
1. Model: LJ-300
Item 009: Pneumatic Blower
1. Model: QD-300

Additional Specifications

Specifications

Capacity

200 kg/h

Included

[{'item': '001', 'name': 'F3200B Bale Opening Machine', 'power': '4.07kW', 'weight': '1180kg', 'capacity': '200 to 350kg/h', 'dimension': '3200 x 1300 x 2200mm'}, {'item': '002', 'name': 'K320 Fiber Opening Machine', 'power': '4.55kW', 'weight': '500kg', 'capacity': '180 to 220kg/h', 'dimension': '1500 x 1000 x 1050mm'}, {'item': '003', 'name': 'L31 Ball Fiber Filling Machine', 'power': '12.75kW', 'weight': '1450kg', 'capacity': '200kg/h', 'dimension': '2000 x 1000 x 1100mm'}, {'item': '004', 'name': 'Ball Collector', 'dimension': '590 x 450 x 900mm'}, {'item': '005', 'name': 'Mixer', 'dimension': '2450 x 1000 x 2000mm'}, {'item': '006', 'name': 'Automatic Filling Plate', 'power': '11kW', 'weight': '1300kg', 'capacity': '200kg/h', 'dimension': '3200 x 1950 x 2200mm'}, {'item': '008', 'name': 'Transport Blower', 'model': 'LJ-300'}, {'item': '009', 'name': 'Pneumatic Blower', 'model': 'QD-300'}]

Power & Electrical

Voltage	380 V
