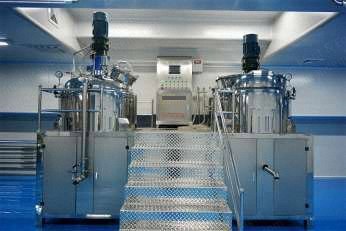

NovaStar, CP148, Liquid Soap Production Line, 100 L/h, 250 L/h RO Water Treatment (New)

NovaStar, CP148, Liquid Soap Production Line, 100 L/h, 250 L/h RO Water Treatment

Description

  1. Overview

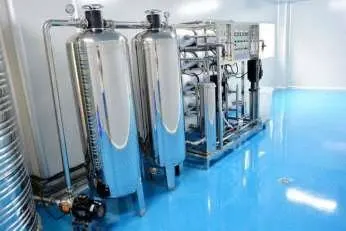

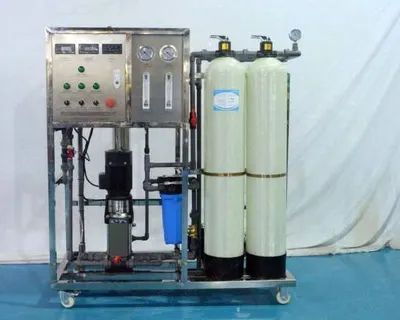

    1. Item 001: CP148 RO water treatment system
    2. Item 002: Ahm-200L liquid homogenizer mixer
    3. Item 003: Horizontal liquid filling machine

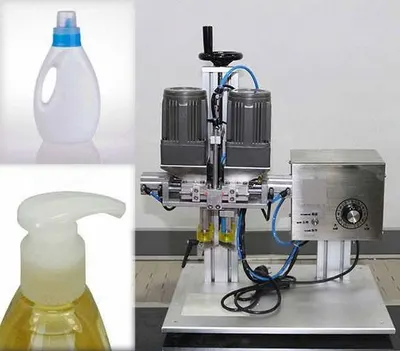

    4. Item 004: Semi automatic capping machine
    5. Item 005: Alm-semi automatic round bottle labeling machine
    6. Item 006: Alm-semi automatic flat bottle labeling machine
    7. Item 007: Handheld inkjet printer

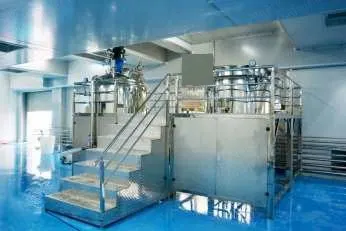

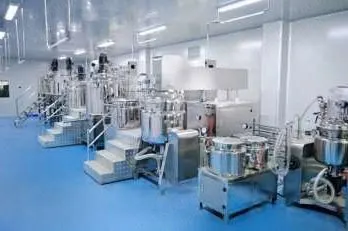

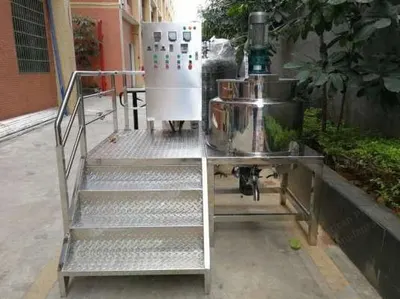

  2. Item 002: Ahm-200L Liquid Homogenizer Mixer
    1. Main pot: full volume 240L, working capacity 60 to 200L, internal and external sanitation polishing ≥300 mesh
    2. Inner tank: SUS316L, thick 5mm, seal head SUS316L, thickness 4mm, import stainless steel
    3. Jacket: SUS304, thick 5mm, electric heating 12kW, tap water cooling bottom inlet and top outlet
    4. Shell: SUS304, thick 3mm, insulation media aluminum silicate
    5. Lid: SUS304, half open hinged lid, GMP hygiene standards

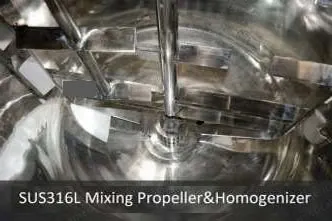

    6. Agitator: frame type wall scraper mixing, with one fixed propeller, flange shaft coupling, stirrer paddle SUS316L, thick 10mm, scraper blade PTFE material, remove product from the wall
    7. Agitator motor: power 2.2kW, Siemens motor and reducer, speed 0 to 65rpm, Delta frequency inverter
    8. Sealing of agitator: three way skeleton oil seal + NSK bearing
    9. Bottom homogenizer: power 4kW, Siemens motor, SUS316L, rotor and stator high shearing homogenizer, speed 0 to 3600 rpm, Delta inverter
    10. Sealing of homogenizer: mechanical seal + water cooling circulation
    11. Discharging way: SUS316L, DN36 bottom ball valve, hygiene level
    12. Electric control system: shell material SUS304, thickness 2mm, stainless steel sand panel, standard configuration instrument, button, appliance components, Schneider
    13. Platform and bracket: all SS and equipped with anti-skid aluminum plate, best configuration
    14. Other accessory spare parts: provide names and quantity of special and vulnerable parts, random
  3. Item 003: Horizontal Liquid Filling Machine
    1. Cylinder: brand Airtac famous brand, low gas consumption strong driving force
    2. Control system: manual/automatic control, reset, manometer
    3. Foot control panel: controlled by foot, materials are filled into bottles when press this panel
    4. Material entrance: using steel pipe connect with charging basket
    5. Filling nozzle: filling volume and filling nozzle size is optional
    6. Structure: self-suction products to filling machine, full pneumatic control, normal gravity type feeding products, change manual and automatic filling state, piston cylinder control volume
    7. Principle: compressed air control drive, using lead screw, counter, make filling quantity adjustment accurate, emergency switch, piston automatically retreat back to initial bits, filling stop
    8. Cylinder: Airtac
    9. Material: SS316L for all contact products part, other parts SS304
    10. Filling range: 500 to 5000ml
    11. Filling speed: 0 to 30bpm (adjustable)
    12. Air pressure: 0.5 to 0.8MPa
    13. Working pressure: 0.2 to 0.5MPa
    14. Air consumption: 0.05m3/min
    15. Weight: 45kg

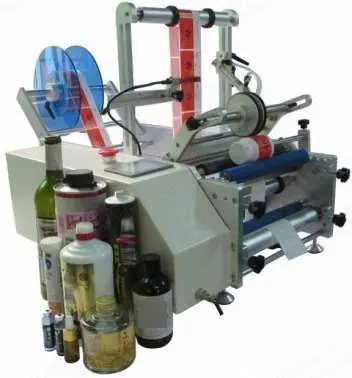

  4. Item 005: Alm-Semi Automatic Round Bottle Labeling Machine
    1. Scope of applicable labels: width of 10 to 350mm, length of 10-150mm
    2. Diameter of applicable bottle neck: external diameter of 20-80(mm), height of 30 to 200(mm)
    3. Max roll inside diameter: 76mm
    4. Production capacity: 1200 to 2400 bottles/hour (it depends on size of label and speed of manual operation)
    5. Rated voltage: 220V/50Hz
    6. Total power: 100W

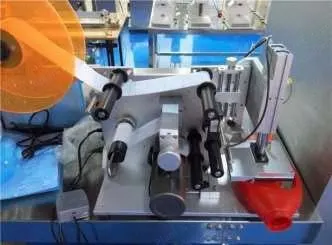

  5. Item 006: Alm-Semi Automatic Flat Bottle Labeling Machine
    1. Scope of applicable labels: width of 10 to 350mm, length of 10 to 150mm
    2. Diameter of applicable bottle neck: external diameter of 20 to 80(mm), height of 30 to 200(mm)
    3. Max roll inside diameter: 76mm
    4. Production capacity: 1200 to 2400 bottles/hour (it depends on size of label and speed of manual operation)
    5. Rated voltage: 220V/50Hz
    6. Total power: 100W
  6. Item 007: Handheld Inkjet Printer
    1. Material: stainless steel
    2. Dimension: 130 x 128 x 200mm
    3. Control screen: color touch screen, intelligent touch screen (can be controlled by universal wireless)
