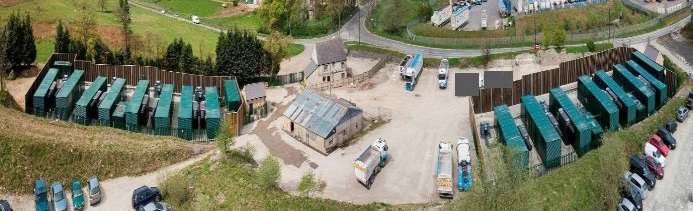

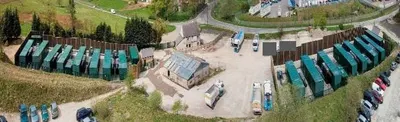

MTU, HMW-2200-T5 STD, 2017, 30.5 MW, 15x Containerized Diesel Generators, 400V, 50 Hz

MTU, HMW-2200-T5 STD, 2017, 30.5 MW, 15x Containerized Diesel Generators, 400V, 50 Hz Sold

Description

  1. Overview
    1. Fifteen (15) MTU 16V4000G63 exhaust emission optimized diesel engines coupled to high performance Mecc Alte ECO46 2L/4A alternators.
    2. Rated at 2546 kVA / 2033 kW standby power and 2303 kVA / 1842 kW prime power.
    3. Engine speed: 1500 rpm.
    4. Voltage: 400 V, 3-phase, 50 Hz.
    5. Year of manufacture: 2017 and 2018.
    6. Only 150 to 200 hours since new.

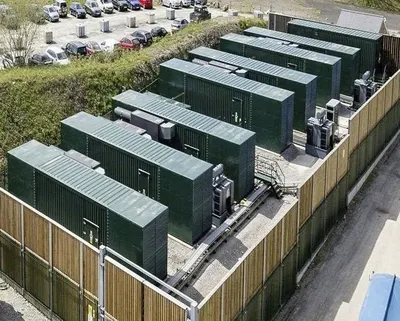

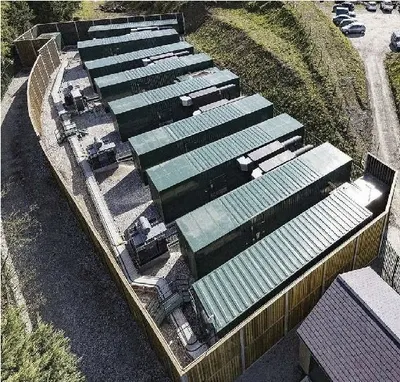

    7. Each generator is housed in a 40 ft sound attenuated container.
    8. Complete power plant in module design that can be easily transported and set up within days to generate a steady stream of electrical power.
  2. Specifications
    1. Rating: 2546 kVA / 2033 kW standby power and 2303 kVA / 1842 kW prime power.
    2. Radiator: Skid mounted radiator designed for high end temperatures.
    3. Radiator design: Tecno Group TG00094AA 30 m/s reduced airflow radiator with electric powered cooling fan.
    4. Power box: CP6.
    5. Model: HMW-2200-T5 STD 2200 kVA V400 / 50 Hz AS20.
    6. Year: 2017 and 2018.
    7. Hours: 150 to 200 hours only.
    8. Voltage: 400 V, 3-phase, 50 Hz.
    9. Engine: MTU 16V4000G63 exhaust emission optimized engine.
    10. Engine speed: 1500 rpm.
    11. Starting system: 24 V electric with Optima yellow top batteries and battery isolator.
    12. Engine governor: ADEC.
    13. Alternator: Mecc Alte ECO46 2L/4A with MAUX excitation, oil primer and centrifuge fitted as confirmed by MTU, set mounted 4000 A 4-pole motorized breakers.
    14. Control panel: AS5 with free issue Comap IG-NTC-BB + Intelivision 5 components.
    15. Air circuit breaker panel: 4-pole, 4000 A Schneider NW04 motorized H2 100 kA breaking capacity with Micrologic 6.0A trip unit.
    16. Heater: Thermostatically controlled 9 kW 400 V 3-phase water jacket heater with circulation pump.
    17. Battery charger: Deepsea DSE9470 10 A intelligent mains battery charger.
    18. Including: Automatic electric pre-lube pump; set mounted 2000 A neutral earthing contactor with CT; fuel return cooler; centrifugal oil filter (MTU) and primary water separator filter.
  3. Condition
    1. Only 150 to 200 hours since new.
    2. Year of manufacture: 2017 and 2018.
  4. Included Equipment
    1. Fifteen (15) all purpose 40 ft sound attenuated containers with MTU 16V4000G63 generator sets.
    2. Skid mounted radiator designed for high end temperatures.
    3. 40 ft hi cube container with switchgear room and control room.
    4. Equipment includes: Control panels, control system, breaker panels, heaters, battery charger, switchgear, transformers, fuel tank system and etc.
    5. Automatic electric pre-lube pump.
    6. Set mounted 2000 A neutral earthing contactor with CT.
    7. Fuel return cooler.
    8. Centrifugal oil filter (MTU) and primary water separator filter.
  5. Transformers
    1. Quantity 4: 4 MVA GBE oil immersed, free breathing step up power transformers with oil conservator and copper windings; 3-phase, 400-33 kV; 50 Hz.
    2. Quantity 1: 2 MVA GBE oil immersed, free breathing step up power transformers with oil conservator and copper windings; 3-phase, 400-33 kV; 50 Hz.
  6. Hv Switchgear Container
    1. Purpose built 40 ft hi cube container with heating, lighting and power installed.
    2. Lined with rock wool insulated panels includes high level louver with fan and low-level louver for natural air flow.
    3. Split into two sections/rooms with a control room on one side and switchgear in the other room with 33 kV ABB Ring Safe switchgear.
  7. Control System
    1. Remote communication and load summation control panel (RCLSP).
    2. 1 x Comap IM-NTC BB base box controller (site load value monitoring and integration).
    3. 1 x Comap IBNT internet bridge (broadband interface).
    4. 1 x Comap ILB+ local bridge (local and PC remote interface).
    5. 1 x 230/240 V DC PSU.
    6. 1 set of control miniature circuit breakers.
    7. 1 set of CAN bus interface terminals.
    8. Beldon 3106A CANbus communication cabling and Cat 5E ethernet communication cables.
    9. Comap Mainspor G59-3 protection relay (over/under volts, Hz and vector shift).
  8. Fuel Tank System
    1. Quantity 4 x 40,000 L fuel tanks; double skinned; DD50 fuel polishing system; bund alarm; overfill alarm and contents gauge with adjustable volt free level alarm.
    2. Quantity 1 x 20,000 L fuel tank; double skinned; DD50 fuel polishing system; bund alarm; overfill alarm and contents gauge with adjustable volt free level alarm.
    1. Not specified.
