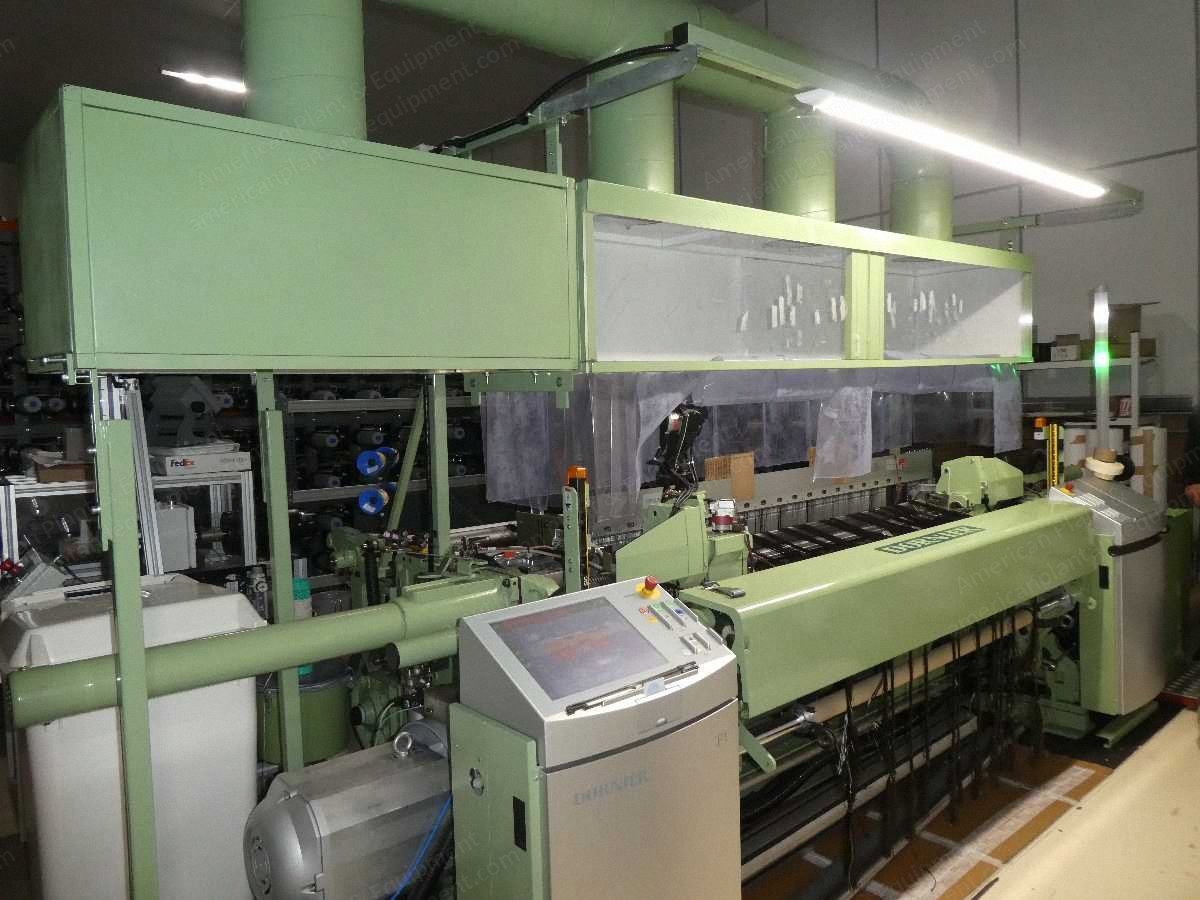

Dornier, PTS4/S, 2016, 1900mm, 4 Colors, Staubli S3020 E3 Dobby

Dornier, PTS4/S, 2016, 1900mm, 4 Colors, Staubli S3020 E3 Dobby Sold

Description

  1. Overview

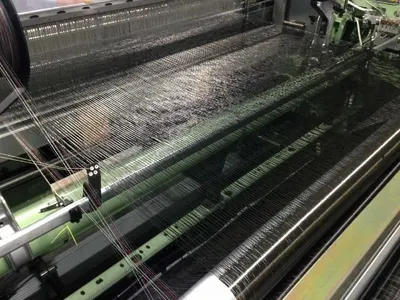

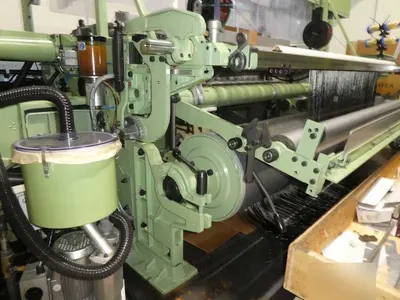

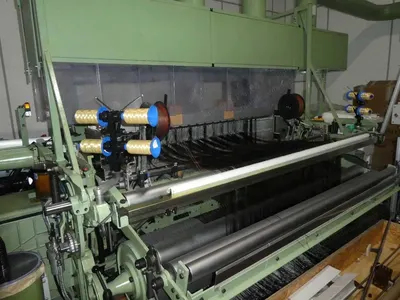

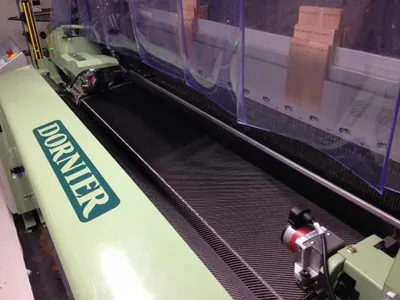

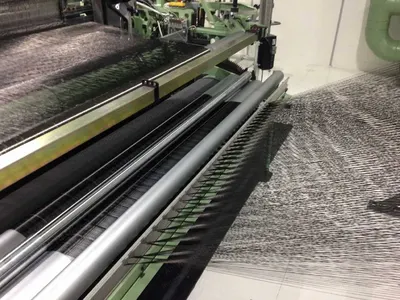

    1. Dornier Pts4/S rapier loom setup to weave
    2. Width 1900 mm

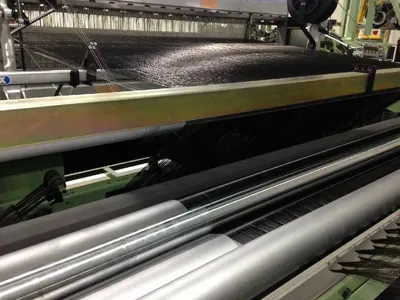

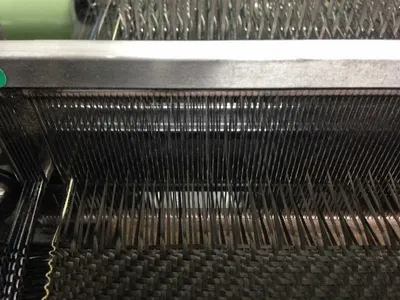

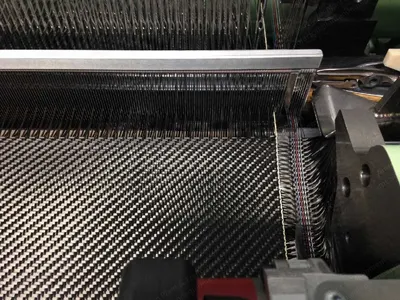

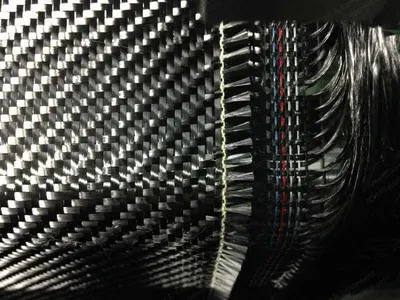

    3. Flat carbon fiber yarn
    4. Year 2016
    5. Incorporating Isumi weft feeder and Texkimp composite 960 end creel
  2. Specifications

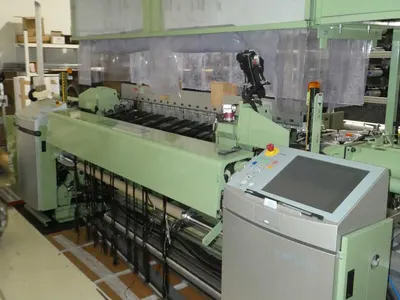

    1. Make and type: Dornier PTS 4/S
    2. Weft insertion: Rapier

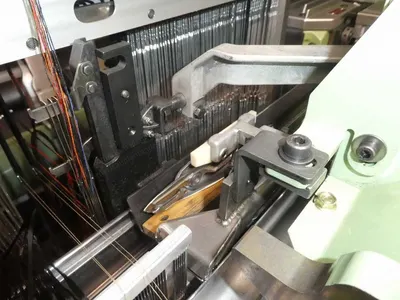

    3. Rapier: Fixed / positive
    4. Weft colors: 4 (only 1 being used)
    5. Ecs selectors: 4

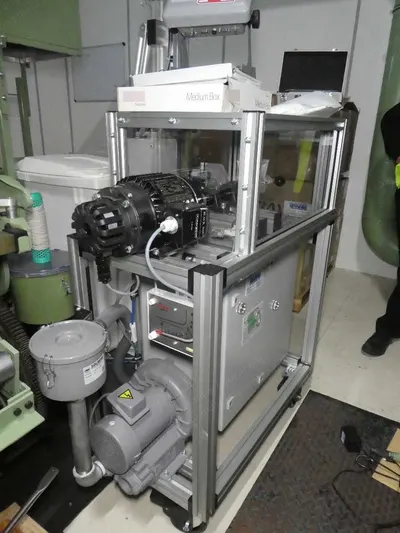

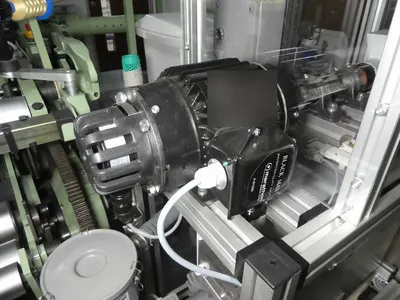

    6. Weft feed: Isumi no twist single flat yarn feeder model WF-510

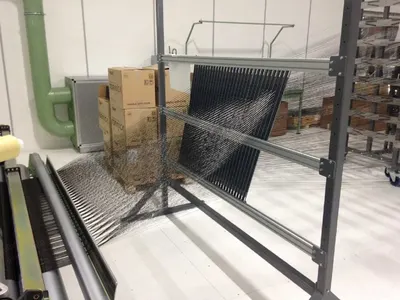

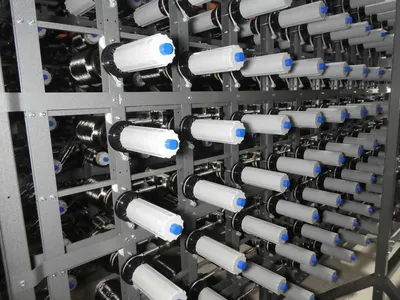

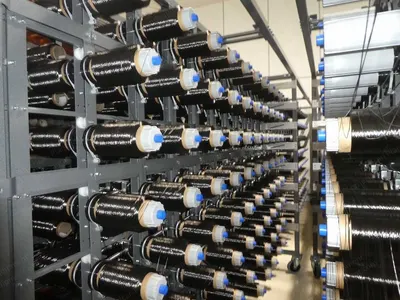

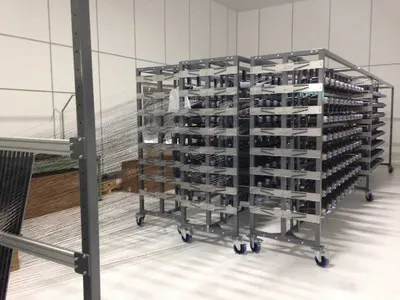

    7. Warp feed: 960 end Texkimp composite creel type CF-F
    8. Selvedge type: Catch selvedge cutter LHS and RHS preinstalled
    9. Selvedge waste bin: 1

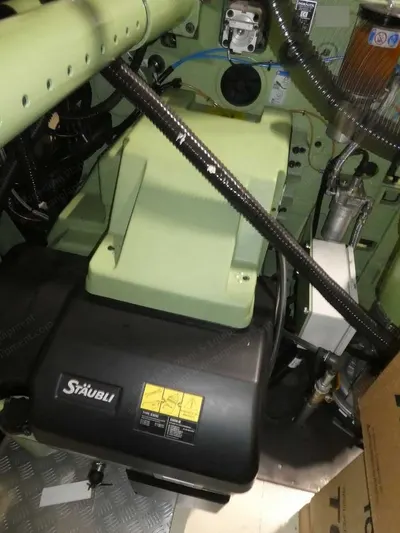

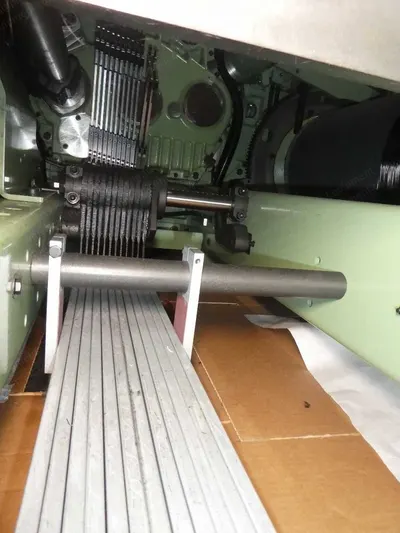

    10. Dobby model and type: Staubli S3020 E3
    11. Installed levers: 12
    12. Installed undermotions: 12

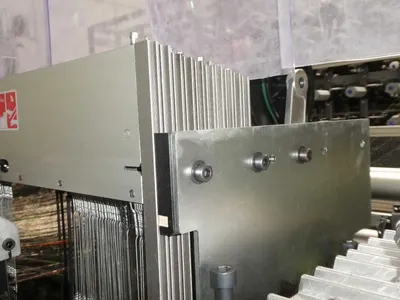

    13. Frames supplied: 12
    14. Loom take-up: Electrical
    15. Loom let-off: Electrical

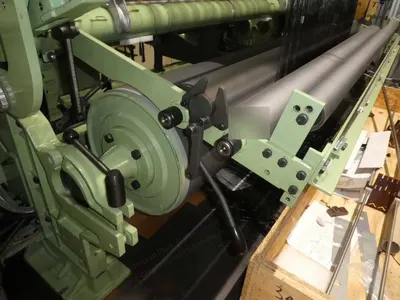

    16. Cloth rollers: 2 x air bars for winding onto cardboard tube

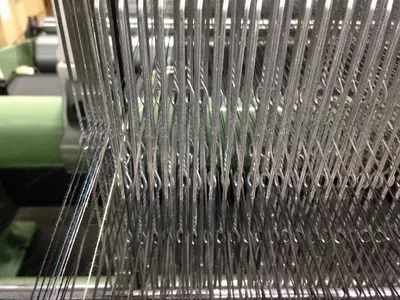

    17. Heald wires: As on looms

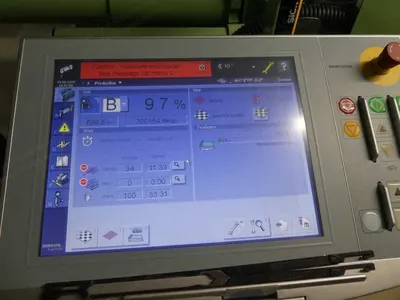

    18. Control panel: 15 inches touchscreen panel Ergoweweave
    19. Spare parts and manuals: All related spare parts available in the factory

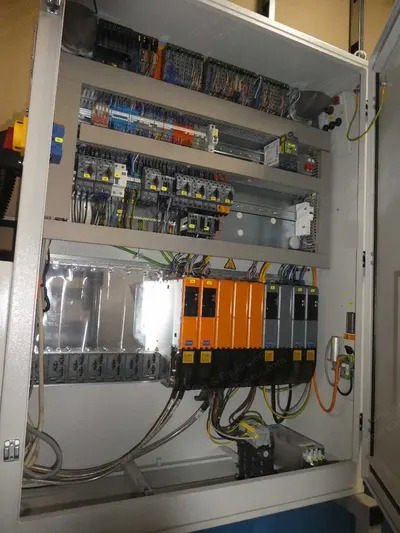

    20. Electrical supply: 3 phase 380-415 V, 50 Hz
