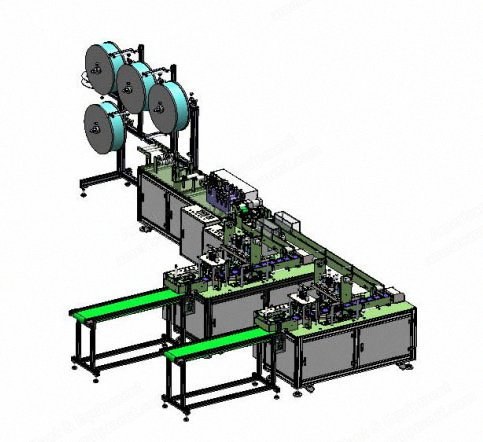

NovaStar, FM262, High Speed Automatic Mask Production Line, 90-110 pcs/min (New)

NovaStar, FM262, High Speed Automatic Mask Production Line, 90-110 pcs/min

Description

  1. Equipment Profile
    1. Equipment name: High-speed automatic mask production equipment
    2. Version number: 1.0
    3. Equipment application: Multi-layer plane ear mask automatic production
    4. Equipment advantages: Automatic operation of the whole machine, assembly line production, automatic folding, fixing the bridge of the nose, automatic ultrasonic welding and sealing
    5. The welding of one tow and two lugs has high capacity
    6. Automatic cutting ear tape and ultrasonic welding
    7. Automatic material stacking, pipeline output, large number of caches
  2. Equipment Process Flow
    1. Rolling material feeding, through the roller transmission, multi-layer cloth folding and folding edge through the roller mechanism, the bridge of the nose rolling material feeding, fixed
    2. Drive the package after long cutting, ultrasonic welding to seal the edge, cut and shape a single mask in sections; output end one out two shunt, double channel
    3. Send to lug welding machine respectively, and automatically weld lug through ultrasonic welding machine, and automatically stack the output end (according to the set number of stacking 1 to 30 pcs)
  3. Main Technical Parameters
    1. Production beat: 90 to 110 pcs/min
    2. Daily production capacity: about 120,000
    3. Equipment failure rate: ≤5%
    4. Suitable for spinning cloth width and size: one layer ≤188 mm, two layer ≤175 mm, three layer ≤171 mm
    5. Suitable for coil Φ largest fabric specifications diameter 600 mm, core winding 3 inches (76.2 +/- 5 mm Φ)
    6. Suitable for coil bilianggu specifications biggest Φ diameter 450 mm, core winding Φ 100 mm or more
    7. Electric control system PLC: Panasonic/Shin Shin/Huichuan/Delta
    8. Servo motor: Delta/Shin Jet/Huichuan/Badgda
    9. Grid stabilized EMI power supply filter
    10. The power protects the leakage circuit breaker
    11. Power supply: Ming Wei/Shuo Rui/Xin Wang
    12. Ultrasonic welder: generator + transducer + welding die
    13. Pneumatic system cylinder: Airtac/CKD/Stars/SMC
    14. Pressure adjustment: Airtac/Maxai/CKD/Boak/SMC
    15. Solenoid: SMC/Airtac/CKD
    16. Air filter: Airtac/Airtac/Star/SMC
    17. Transmission system guide rail slider: Hiwin/PMI/TBI/Zero
    18. Bearing: National standard/NSK/Uplift
    19. Deceleration motor: Dongma/Taibang/Mingpai/Beiji/GB
  4. Equipment Specification
    1. Overall dimension: about 6500 mm (length) x 3500 mm (width) x 1950 mm
  5. Additional Information
    1. A backup grid is provided
