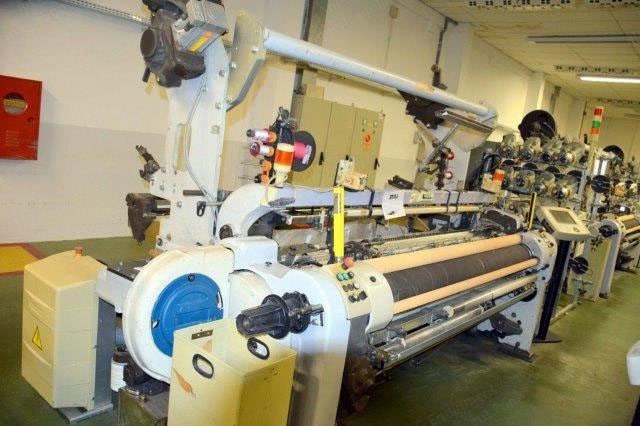

Vamatex, Leonardo Silver HS, 2006, 1900mm Working Width, 12 Colors, Staubli 2670B Dobby

Description

  1. Overview
    1. Brand: Vamatex
    2. Model: Leonardo Silver HS
    3. Year: 2006
    4. Shedding mechanism: Dobby
    5. Working width: 1900 mm
    6. Colors: 12
  2. Shedding Motion
    1. Make: Staubli
    2. Model: 2670B
    3. Type: Electronic
    4. Capacity: 20
    5. Installed capacity: 20
    6. Frames supplied: 10
  3. Motion and Selvedge
    1. Take-up motion: Electronic
    2. Let-off motion: Electronic
    3. Selvedge type: Leno
  4. Rollers and Beams
    1. Back rest roll: 1
    2. Warp stop bar: 8
    3. Warp beam supplied: 1.5
    4. Warp beam diameter: 800 mm
    5. Cloth take-up type: On loom
    6. Cloth roller supplied: 1.5
    7. Top beam: Available
  5. Additional Equipment
    1. Pre-winder set: 10
