Rousselet, Centrifugal Extractor with Removable Basket

Rousselet, Centrifugal Extractor with Removable Basket

Description

  1. Overview
    1. Centrifugal extractor with removable basket.
    2. Type KC (with 2 lateral trunnions, unloading by overturning) up to 1200 mm diameter.
    3. Type KFO (unloading by 2 half doors) up to 1500 mm diameter.
    4. For mechanical engineering and metalworking industries.
    5. For other industries (plastic, textile, food).
  2. Applications
    1. Chips / swarf or components de-oiling.
    2. Components drying after surface treatment.
    3. Components cleaning and drying.
  3. Design Features
    1. Centrifuges incorporate various design features and optional equipment according to selected model, products to be processed, processing purpose and conditions of use.

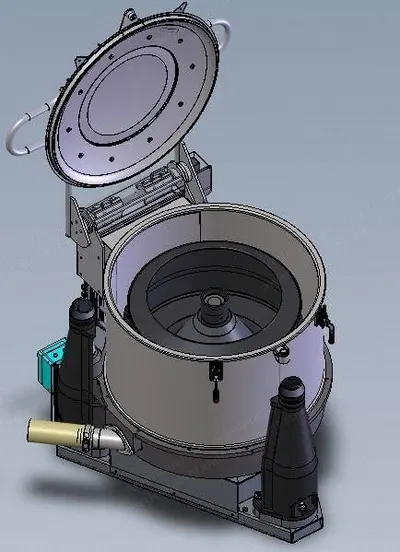

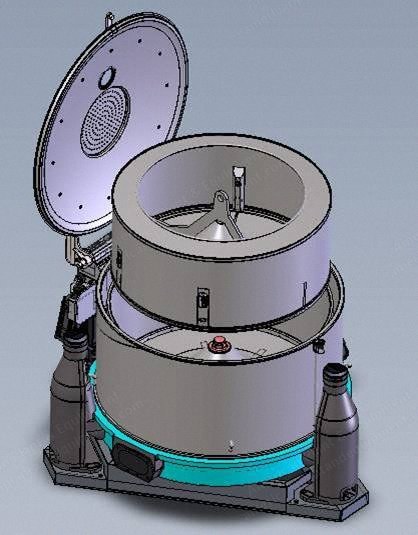

    2. Quick release removable basket.
    3. Rigid type (RC) or suspended on three points (SA & SC) type centrifuge.
    4. Basket driven in rotation by direct axial motor (SA) or side mounted motor and belt drive (RC & SC).
    5. Constant or adjustable speed by frequency inverter (VX).
    6. Counter current braking (SA) or disk brake (SC) for one speed centrifuges; braking through frequency inverter and braking resistance for adjustable speed centrifuges.
    7. Construction materials: cast iron and carbon steel for standard versions.
    8. Possibility to have some or all parts in contact with the product manufactured from stainless steel or coated.
    9. Manual lid opening/closing or automatic by pneumatic jacks.
    10. Heating device (C2) integrated into the lid or independent, according to the model and required power (1400 W - 12 kW).
    11. Possibility to supply a thermo-regulator.
    12. Possibility to process components with retention zones in a basket with a conical base connected to an alternating clockwise / anticlockwise directional drive to assist liquid draining and component drying.
    13. Specially designed baskets: with internal partitions, for cases, buckets, or rectangular boxes, with flat or perforated base plates.
    14. Specific basket perforations or suitable filtration mesh or removable bag.
    15. Special partitioned baskets and filtration aids i.e. filter bags.
    16. Independent control panel or control board with timer to adjust cycle times.
    17. Possibility to supply the centrifuge (RC & SC types only), with explosion-proof equipment, according to European or American electrical standards.
    18. ATEX conformity for European markets.
  4. Basket Handling
    1. KC design: handling by handles fixed to the top part of the basket (Ø 400 & 475 mm).

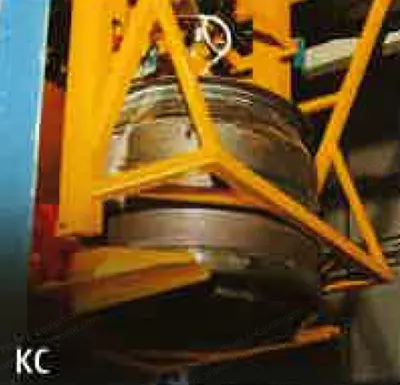

    2. KC design: handling by trunnions placed on outer side of basket to which a handling attachment can be fixed.
    3. KC design: handling by specific top ring to be handled by robot unloading by overturning.
    4. KFO design: handling by the central cone.
    5. KFE design: handling by the central cone.
  5. Unloading
    1. KC design: unloading by overturning.
    2. KFO design: unloading by opening of the 2 half bottom doors.
    3. KFE design: unloading by downward movement of retractable cone once the basket has been placed on its discharging platform.
  6. Optional Features
    1. Removable or integrated loading funnel.
    2. Spraying or blowing nozzles.
    3. Additional removable baskets to reduce lost processing times and to increase productivity.
    4. Angle bracket with hoist.
    5. Robot with gantry.

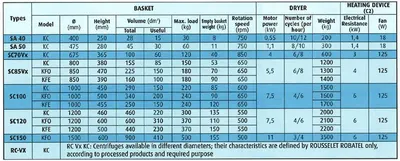

  7. Specifications
    1. SA 40: model KC, basket Ø 400 mm, height 250 mm, total volume 28 dm³, useful volume 15 dm³, max load 30 kg, empty basket weight 8 kg, rotation speed 750 rpm, motor power 0.55 kW, number of cycles per hour 10/12, dryer weight 200 kg, heating device electrical resistance 1.4 kW, fan 18 W.
    2. SA 50: model KC, basket Ø 475 mm, height 280 mm, total volume 45 dm³, useful volume 30 dm³, max load 60 kg, empty basket weight 11 kg, rotation speed 750 rpm, motor power 1.1 kW, number of cycles per hour 8/10, dryer weight 300 kg, heating device electrical resistance 1.4 kW, fan 18 W.

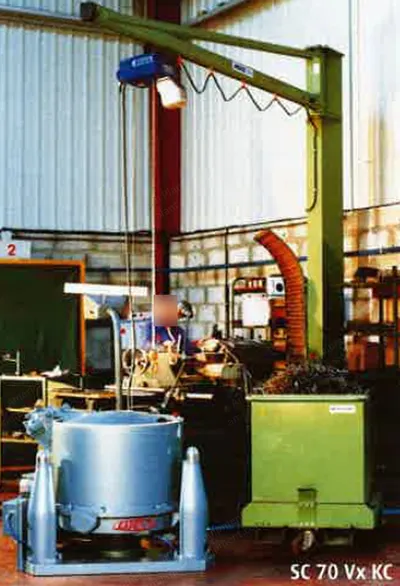

    3. SC 70 VX: model KC, basket Ø 675 mm, height 365 mm, total volume 100 dm³, useful volume 60 dm³, max load 120 kg, empty basket weight 40 kg, rotation speed 850 rpm, motor power 4 kW, number of cycles per hour 6/8, dryer weight 600 kg, heating device electrical resistance 3 kW, fan 125 W.
    4. SC 85 VX: model KC, basket Ø 800 mm, height 380 mm, total volume 155 dm³, useful volume 85 dm³, max load 150 kg, empty basket weight 53 kg, rotation speed 650 rpm, motor power 5.5 kW, number of cycles per hour 6/8, dryer weight 1200 kg, heating device electrical resistance 4 kW, fan 125 W.
    5. SC 85 VX: model KFO, basket Ø 850 mm, height 470 mm, total volume 225 dm³, useful volume 150 dm³, max load 180 kg, empty basket weight 70 kg, rotation speed 650 rpm, motor power 5.5 kW, number of cycles per hour 6/8, dryer weight 1300 kg, heating device electrical resistance 4 kW, fan 125 W.

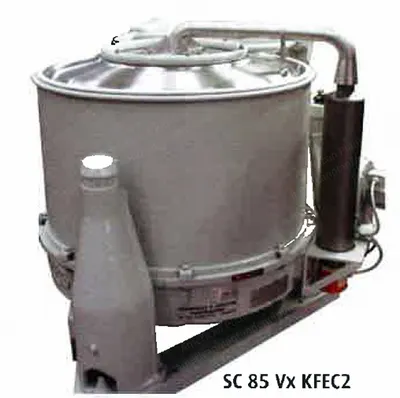

    6. SC 85 VX: model KFE, basket Ø 850 mm, height 390 mm, total volume 160 dm³, useful volume 100 dm³, max load 180 kg, empty basket weight 90 kg, rotation speed 650 rpm, motor power 5.5 kW, number of cycles per hour 6/8, dryer weight 1400 kg, heating device electrical resistance 4 kW, fan 125 W.
    7. SC 100: model KC, basket Ø 1000 mm, height 450 mm, total volume 290 dm³, useful volume 150 dm³, max load 220 kg, empty basket weight 85 kg, rotation speed 600 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 1500 kg, heating device electrical resistance 6 kW, fan 125 W.

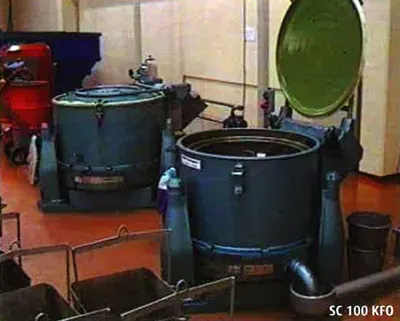

    8. SC 100: model KFO, basket Ø 1000 mm, height 500 mm, total volume 340 dm³, useful volume 200 dm³, max load 240 kg, empty basket weight 90 kg, rotation speed 650 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 1600 kg, heating device electrical resistance 6 kW, fan 125 W.
    9. SC 100: model KFE, basket Ø 1000 mm, height 455 mm, total volume 250 dm³, useful volume 150 dm³, max load 240 kg, empty basket weight 120 kg, rotation speed 650 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 1700 kg, heating device electrical resistance 6 kW, fan 125 W.
    10. SC 120: model KC, basket Ø 1200 mm, height 460 mm, total volume 460 dm³, useful volume 220 dm³, max load 300 kg, empty basket weight 135 kg, rotation speed 550 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 2000 kg, heating device electrical resistance 6 kW, fan 125 W.
    11. SC 120: model KFO, basket Ø 1200 mm, height 600 mm, total volume 600 dm³, useful volume 310 dm³, max load 370 kg, empty basket weight 110 kg, rotation speed 500 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 2100 kg, heating device electrical resistance 6 kW, fan 125 W.
    12. SC 120: model KFE, basket Ø 1200 mm, height 500 mm, total volume 440 dm³, useful volume 230 dm³, max load 370 kg, empty basket weight 150 kg, rotation speed 550 rpm, motor power 7.5 kW, number of cycles per hour 4/6, dryer weight 2200 kg, heating device electrical resistance 6 kW, fan 125 W.
    13. SC 150: model KFO, basket Ø 1500 mm, height 600 mm, total volume 900 dm³, useful volume 410 dm³, max load 500 kg, empty basket weight 155 kg, rotation speed 500 rpm, motor power 11 kW, number of cycles per hour 3/4, dryer weight 3500 kg, heating device electrical resistance 6 kW, fan 125 W.

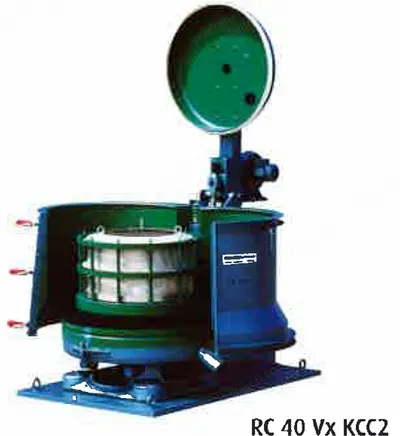

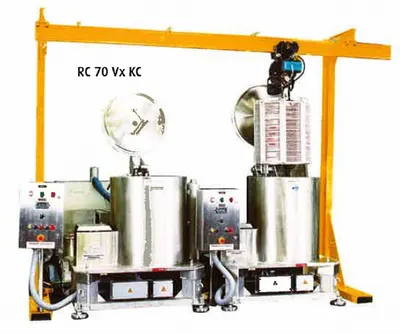

    14. RC VX: model KC, centrifuges available in different diameters; their characteristics are defined by the manufacturer only, according to processed products and required purpose.
