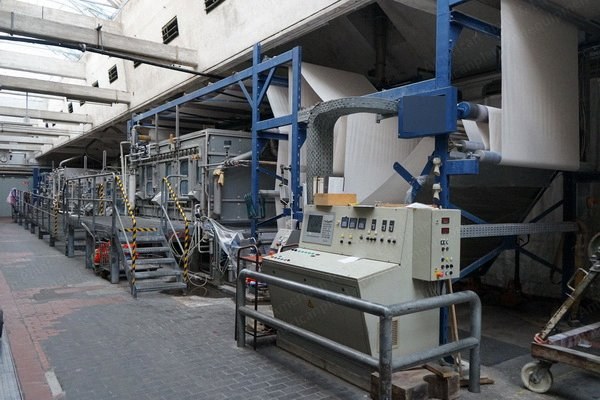

Babcock, Continuous Thermo-Dryer-Pad-Steam Dyeing & Washing Range, 3 Chambers, 6 Washing Compartments

Babcock, Continuous Thermo-Dryer-Pad-Steam Dyeing & Washing Range, 3 Chambers, 6 Washing Compartments

Description

  1. Overview
    1. Machines can work individually in different ways, separately or together.
    2. Only thermo dyeing or padsteam dyeing, only washing.
    3. Dyeing to drying thermo.
    4. Dyeing to washing in padsteam.
    5. Dyeing to washing to dyeing.
  2. Thermosol Dyeing Range

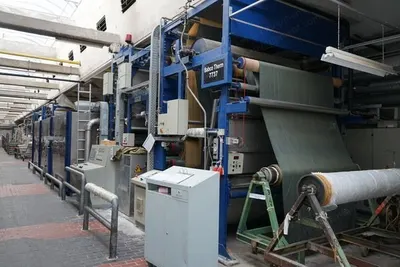

    1. Open width continuous thermosol dyeing range / pad drydying machine.

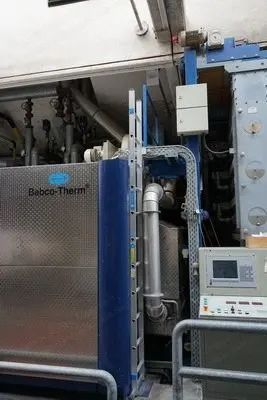

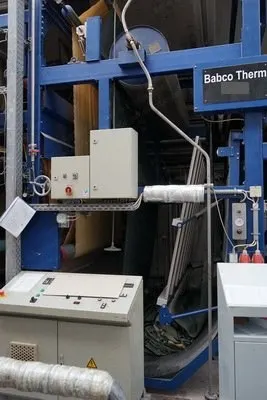

    2. Make: Babcock, type: Babcock Therm, thermooil heated.

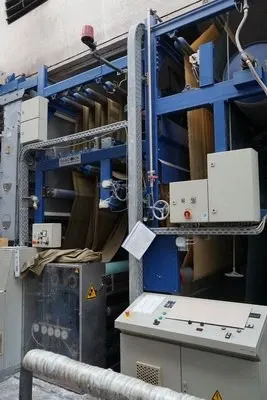

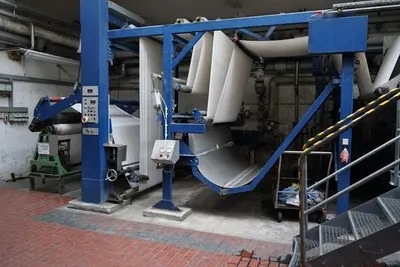

    3. Comprising high cloth feeding frame, compensator and feeding into J-box for interruption free production or deviation avoiding entrance into J-box.
    4. Cooling cylinder diameter 600 mm.

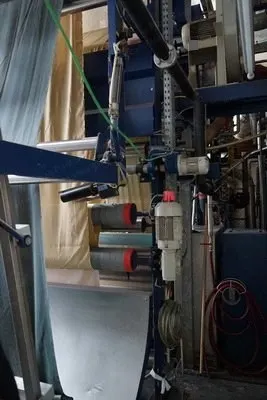

    5. Edge uncurlers and fabric guiding make Erhardt & Leimer type KF2020.

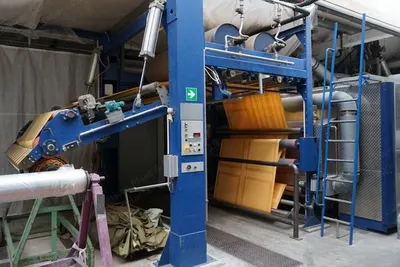

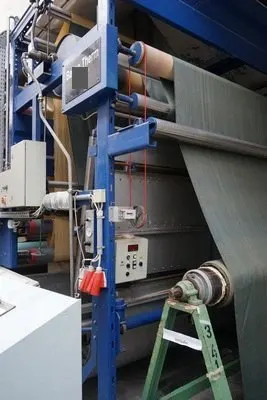

    6. Compensator, entrance and feeding into dyeing pad mangle make Babcock with horizontal installed dyeing cylinders.
    7. Exit and feeding into airstep with 4 upper / 4 lower airstep rollers.
    8. Fabric feeding into infra red pre-dryer with 3 sections vertical installation, gas heated.

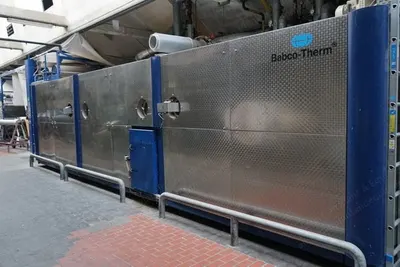

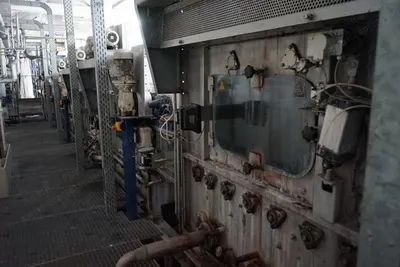

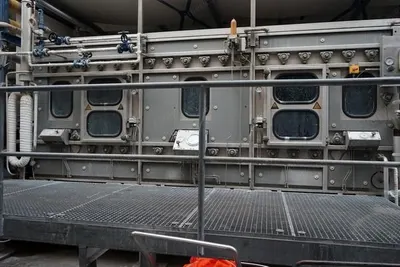

    9. Fabric guiding by compensator and entrance into 3 chamber thermooil heated thermosol drying machine with contactless feeding into the machine.
    10. Exit onto 2 installed cooling cylinders with diameter of 600 mm or possible deviation of cooling cylinder by stainless steel guide and deviation rollers.
    11. Compensator, fabric delivery onto big batcher onto A-frame.

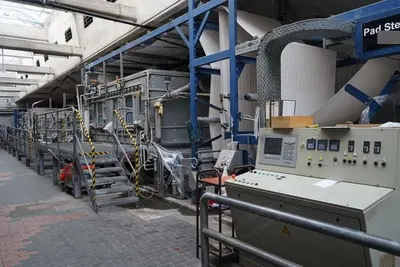

  3. Pad Steam Dyeing Range
    1. Pad steam dyeing range make Babcock.

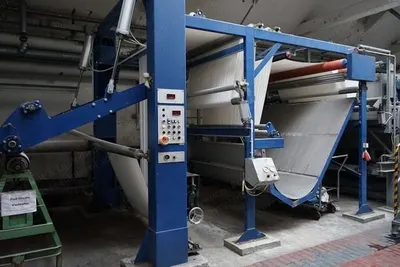

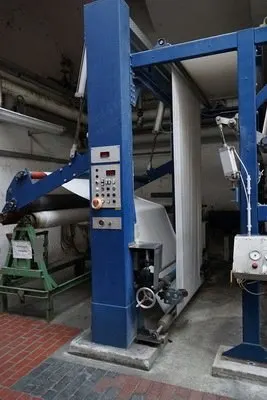

    2. High cloth feeding frame, entrance into J-box for interruption free continuous production.
    3. High feeding frame from J-box with stainless steel guiding rollers with edge uncurlers and cloth guiding make Erhardt & Leimer type KF2020.

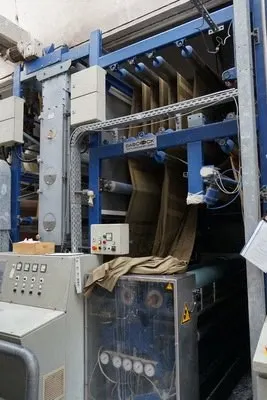

    4. Entrance and feeding into dyeing pad mangle make Babcock type F5930 in 45° angle installation.

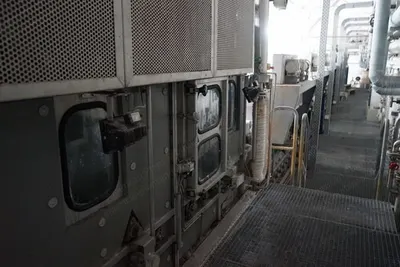

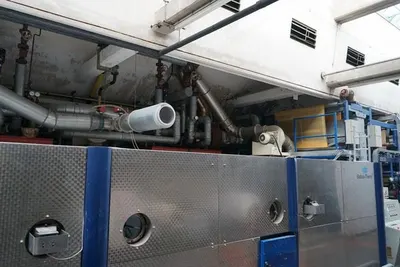

    5. Fabric feeding either deviating the steamer by stainless steel guide rollers or entrance into steamer make Babcock type 5939, fabric contents 60 mtr.

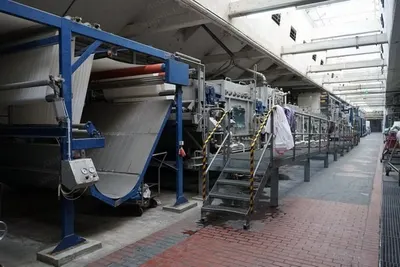

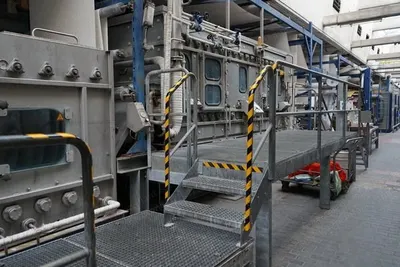

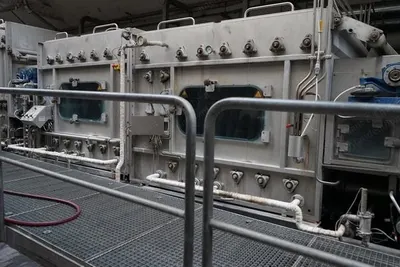

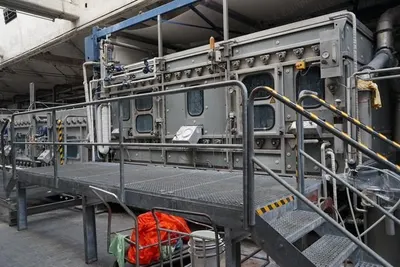

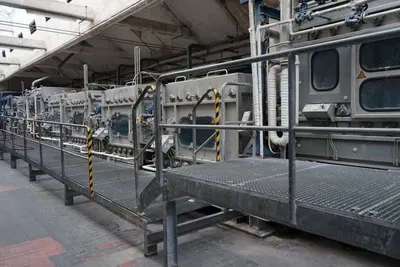

    6. Exit of steamer and feeding into washing compartments installed in cascade form comprising out of 6 chambers washing.

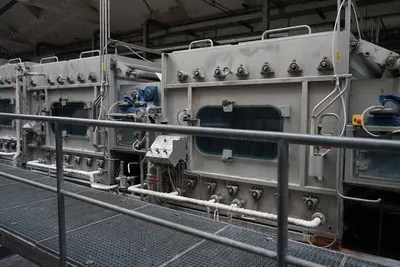

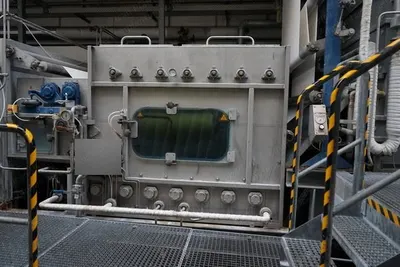

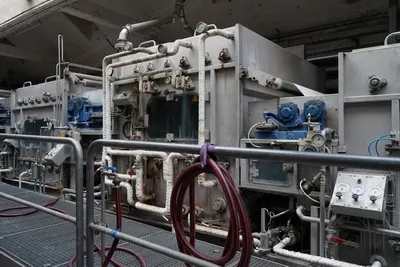

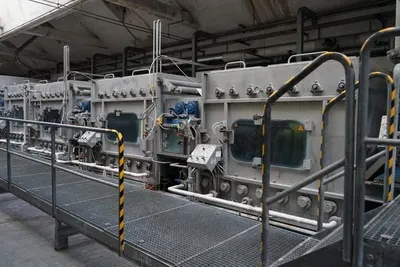

  4. Washing Chambers
    1. 1st washing chamber: 15 mtr fabric contents, 2 roll squeezing mangle.
    2. 2nd washing chamber: 15 mtr fabric contents, 2 roll squeezing mangle.
    3. 3rd and 4th washing chamber in combination, each of the washer with 15 mtr fabric content, 2 roll squeezing mangle.
    4. 5th washing chamber: 12 mtr fabric contents, 2 roll squeezing mangle.
    5. 6th washing chamber: 15 mtr fabric contents, 2 roll squeezing mangle.
  5. Exit and Control
    1. Exit of last washing onto J-box for interruption free production with dancing roller, stainless steel guide and fabric feeding rollers.
    2. High cloth feeding frame with compensator and edge and fabric guide rollers make Erhardt & Leimer type KF2020 onto A-frame winder.

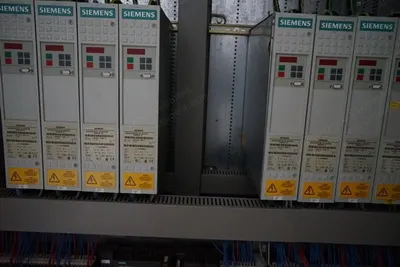

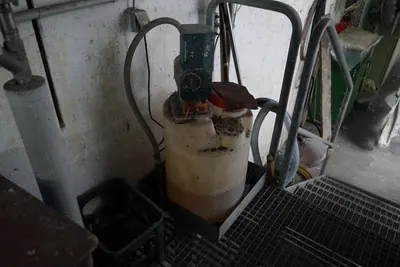

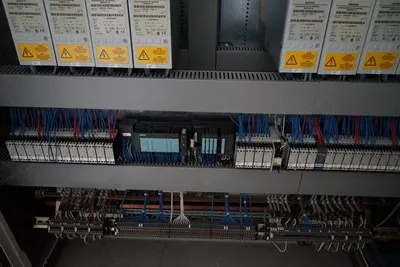

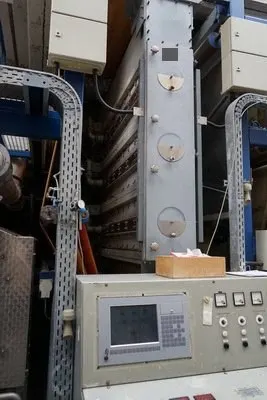

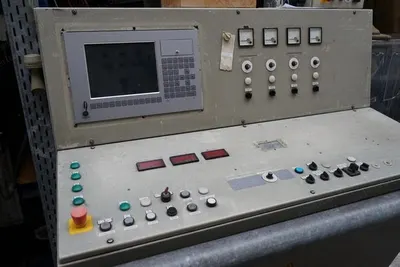

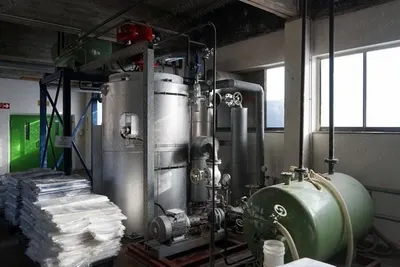

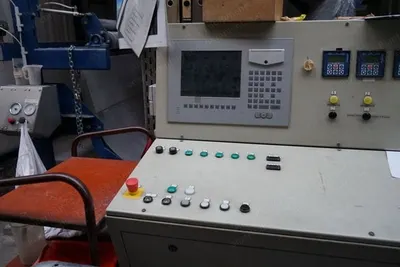

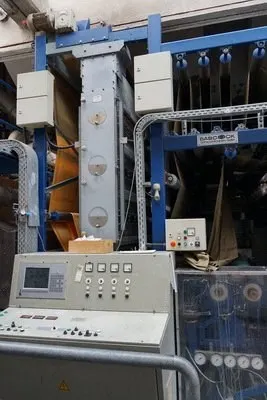

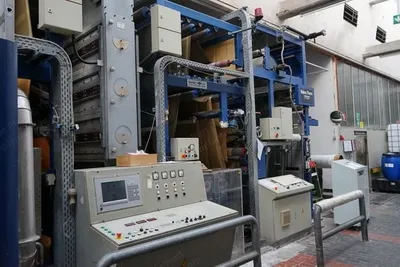

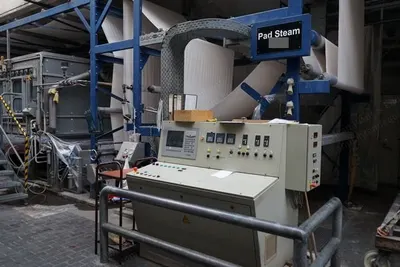

    3. Working panel with visualisation, inverter driven, dosing station.
