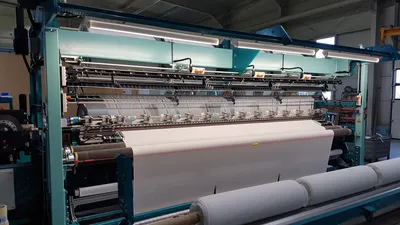

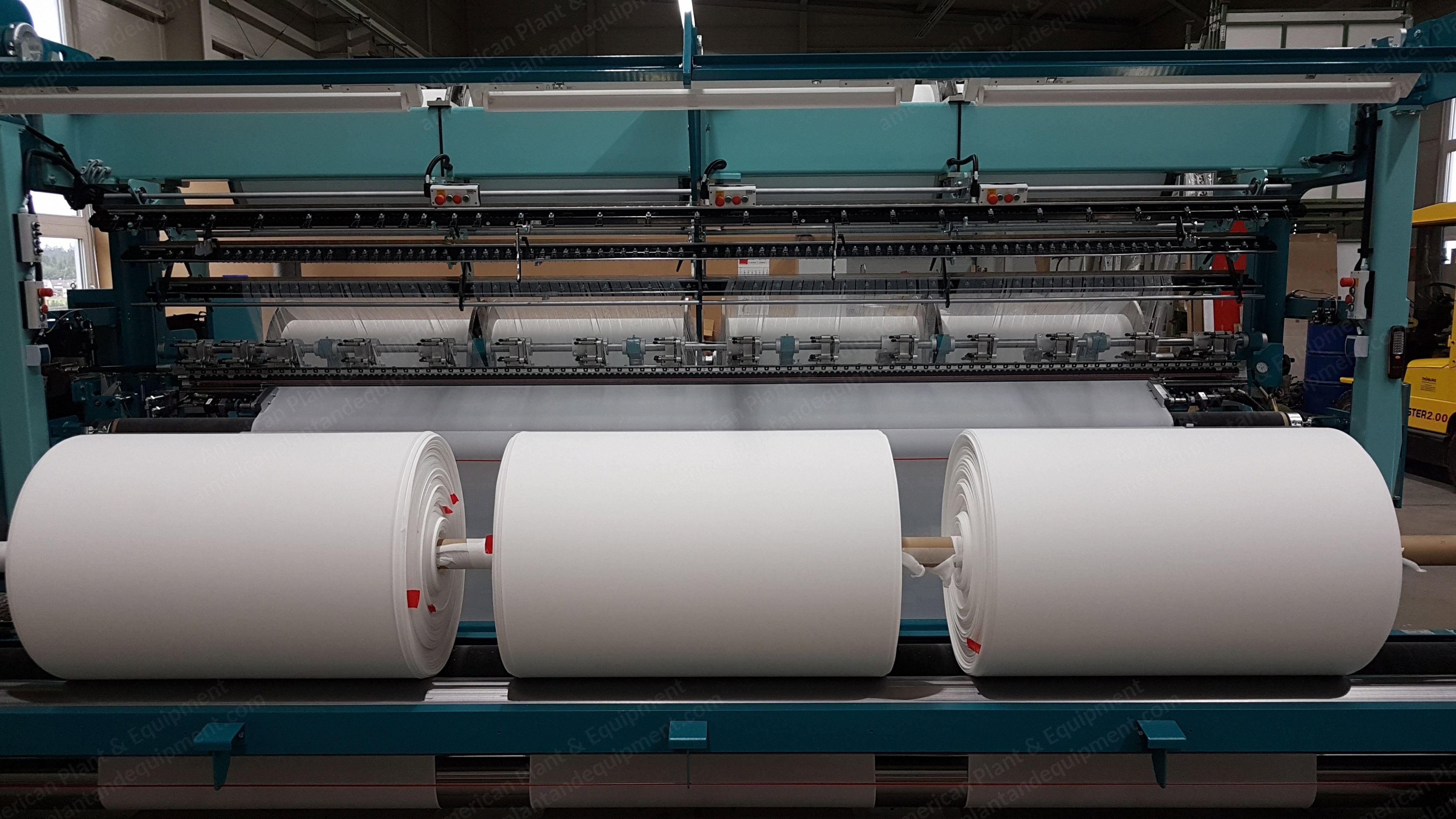

Thümling, KWM 3-P, 2020, Warp Knitting Machine, 186 Inches, 3-Bar

Thümling, KWM 3-P, 2020, Warp Knitting Machine, 186 Inches, 3-Bar

Description

  1. Overview
    1. Type: KWM 3 – P
    2. Year: 2020
    3. Machine type: Warp knitting machine type KWM 3
    4. Working width: 130” up to 186 inches = 4725 mm
    5. Gauge: E 5 to E28 / inch (25.4 mm) possible
    6. End use: For the production of 1-2-3- bar warp knit fabrics with and without pile device
    7. Pile device for low gauge against inquiry; all kinds of yarns according thickness along to gauges in use: cotton, wool, silk
  2. Specifications
    1. Width: 186 inches
    2. Pattern wheels: Yes
    3. L1 = Yes
    4. L2 = Yes
    5. L3 = Yes
    6. POL = Yes
    7. POL - high 2.5 to 5.0 mm +
    8. Fabric batcher: Separate
    9. Superstructure type: Liberty
    10. Quantity beam shafts and diameter: 3 x 152 mm
    11. Take up type: Separate for 1000 mm roll
    12. Beam drive: 3 x ThümlIng EBA / ESQ
    13. Take up: EWA
    14. Needle nos: 51.50 G113 Groz Beckert
    15. Clouser nos: C 82 Saxonia
    16. Sinker nos: ThümlIng E28
    17. Guide ref: E28 Groz Beckert
    18. RPM: Up to 1100 rpm depend on yarn quality
    19. Type of laserstop: On inquiry
    20. Type of camera: On inquiry
    21. Slevdge spreaders: 2 driven
  3. Main Drive / Current Data / Connecting Data
    1. Speed-controlled main drive via compact servo motor 10 - 15.8 kW
    2. 400 VAC / 50 Hz country:
  4. Machine Frame
    1. Welded, torsion-free steel construction
    2. 7 integrated ThümlIng coupling gears with 2/4-chamber drive units for needle, tongue, sinker and guide bar drive as a unit
    3. Forced lubrication of the needle and slide drive guides, as well as automatic lubrication of all bearings and joints in the machine bed
  5. Machine Control
    1. Lenze I 700 multi - axis drive control for control of basic functions such as main drive, beam drives and fabric take up
    2. UPS (integrated power supply for power failure) for controlled stopping of the machine in knock over position (needle always at bottom dead center)
  6. Operator Interface
    1. 10.4 "color monitor programmable via touchscreen function
    2. Operation and production data input and recording
    3. First language: German
    4. Second language: English
  7. Knitting Elements
    1. 1 x single needle bar, 1 x tongue bar, 1 x sinker bar, 3 x guide bar
    2. 1 x pilebar - from 2.5 to max. 5.0 mm +
    3. Single needle chromed
    4. Stable 1 " tongue sections made of chrome steel
    5. Enclosing and knock over for pile execution in 1 '' sections made of chrome steel
    6. Guide needles in 1 '' sections made of chrome steel
    7. Pile sinker sections in 1 "frame made of chrome steel
  8. Warp Beam Support Frame
    1. Up to max. 3 x 32 "disc diameter free-standing fully assembled
    2. 3 x warp beam positions or warp beam fixtures
    3. Possible warp beam sizes: 21 "x 21", 32 "x 21", 32 x 42 "
    4. 540 mm to 812 mm flange diameter
    5. Max. width of the part warp beams: 540 mm to 1090 mm
  9. Pattern Gear Mechanism
    1. Integrated Tempi change-over gearbox (12M - 16M)
    2. 3 x pattern discs type: ThümlIng 3 Tempi = 16 M standard equipment
    3. Possible max. underlapping up to: 25 mm
  10. Beam Shafts
    1. 3 x beam shafts 152 mm diameter, splited execution means each warp beam axle consists of two separable sub axles
    2. 6 x beam climbing rings and 6 pressure plates
  11. Yarn Let Off Device
    1. Individual electronically controlled thread feed for each beam position with integrated sequence control via compact servo geared motor for each beam position as standard equipment, as well as integrated stopping function
    2. The yarn feed is length controlled
  12. Oil Heating / Oil Cooling
    1. Heating and cooling of the machine oil is carried out by means of recirculation heat exchanger outside the machine via a separate unit for monitoring the preset constant oil temperature
    2. Oil filter for cleaning
  13. Yarn Path (Yarn Directing and Tensioning Devices)
    1. Swivel thread tension rails with hard chromed thread profiles and corresponding damping springs for stress compensation of the thread coulter
    2. 3 x rolling deflection tubes hard chrome-plated as standard for uniform yarn run as well as corresponding yarn comb appeared in gauge E32
    3. Reassurance tubes fixed
  14. Fabric Take - Up
    1. Electronically controlled, height-adjustable four-roller drawdown via servo gearmotor
    2. Freely programmable fabric densities
    3. Roller cover black
  15. Batching Device
    1. Separately standing upright winder up to 1000 mm winding diameter
    2. Automatic control for automatic winding tension regulation from the set initial value to one final value as a function of the length of the goods by means of setpoint automatic
    3. Max. roll weight 1000 kg
  16. Selvedge Spreader
    1. Two driven, adjustable selvedge spreader for right and left side
  17. Thread Control Complete (Special Equipment) Not Standard
    1. Control unit for laserstop and Procam 5310
    2. 1 x laserstop 4180 - 4 channel version completely assembled
    3. 1 x Procam 5310 with up to 8 camera positions incl. bracket for mounting
    4. Article configuration must be carried out by the customer
    5. Maintenance contract can be concluded by the customer directly with the manufacturer
    6. (SE) - additional cameras required for an extra charge (item dependent)
