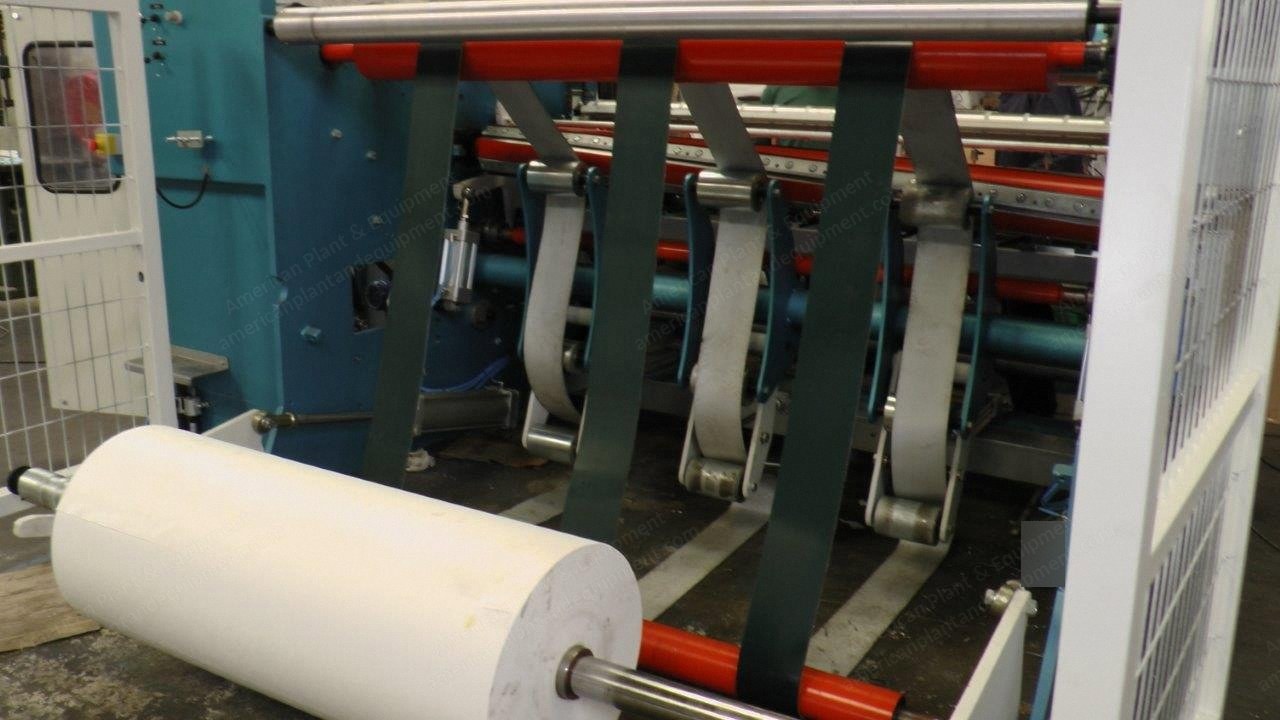

Lyish, LRSS-1800, 1800mm Working Width, 1400 FPM Rewinding Speed, Semi-Automatic (New)

Lyish, LRSS-1800, 1800mm Working Width, 1400 FPM Rewinding Speed, Semi-Automatic

Description

  1. Overview
    1. Semi-automatic slitter rewinder for production of large diameter non-woven rolls – special design for jumbo and industrial rolls.
    2. Machine is manual operation – the product is rolled on cardboard core (pre-made core sections, mounted on a mandrel by the operator prior to rewinding).
  2. Specifications
    1. Paper reel width: 70” maximum.
    2. Parent reel diameter: 50” maximum.
    3. Product diameter maximum: 28”.
    4. Product diameter minimum: 4”.
    5. Rewinding speed: 1400 feet per minute.
    6. Quantity of slitters: 10.
    7. Slitters are located under the rewinding station (shear cutting system).
    8. Core guiding system – preventing conic edges on the finished rolls.
    9. Perforation system: available optionally, inquire if interested.
    10. Turning banana roll for spreading after slitting, prior to rewinding.
    11. Finishing station with transversal cutting and by HSS blade (for non-woven) and turning.
    12. Side way pusher for removing products from machine (for small-medium size rolls).
    13. PLC controller including sheet counter.
    14. Electric consumption: 9 kW, 480 volts, 3-phase.
    15. Air pressure: 1/4” hose supply, 6 bar.
    16. Safety: machine is fully guarded according to CE standards.
    17. Machine will be supplied with 2 standard mechanical mandrels for rewinding.
    18. Operating with air expanding shaft is optional, inquire if interested.
