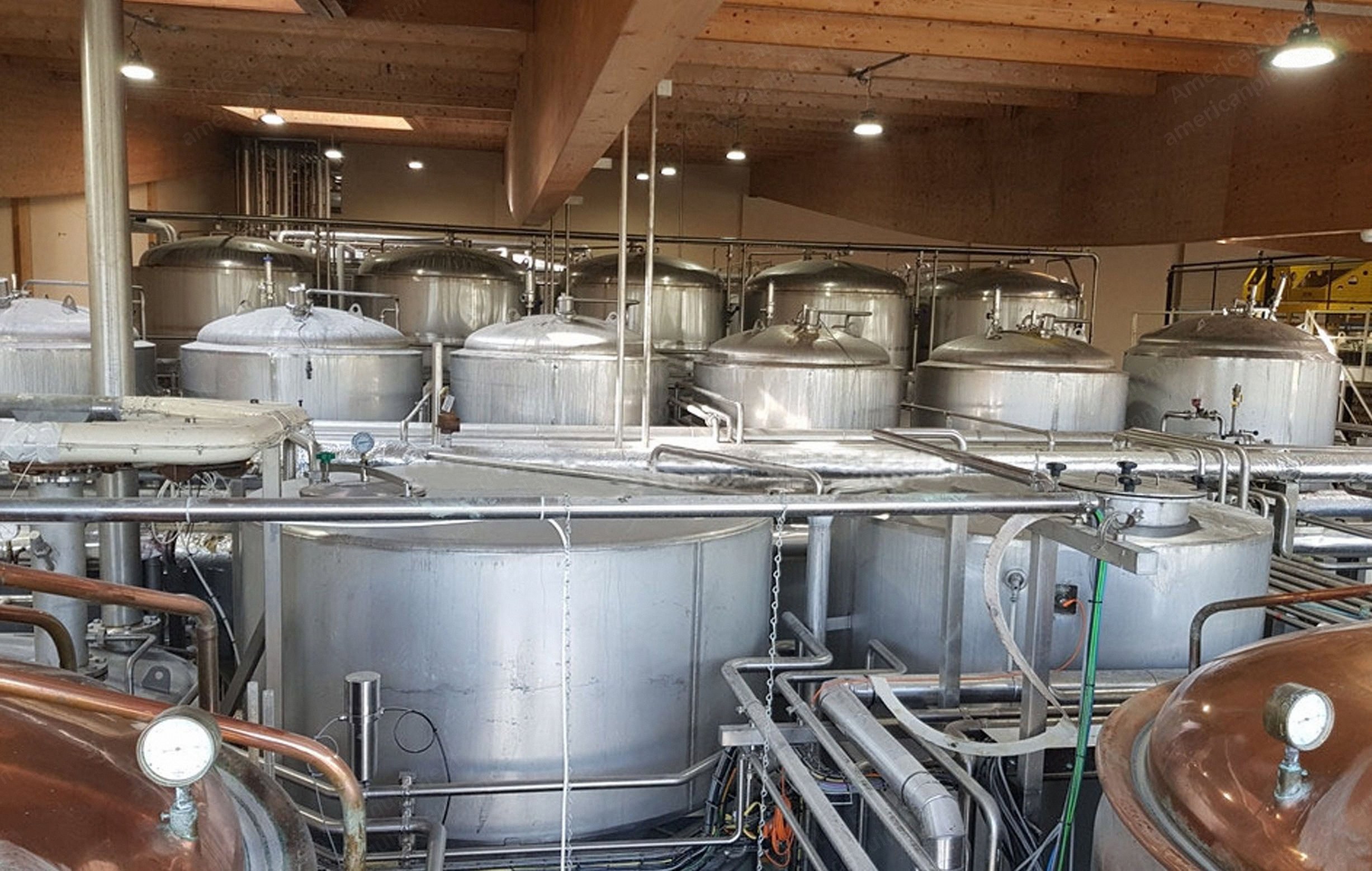

Kaspar Schulz, Brew Line with Tank Farm, 2015, 35 hl/brew, 4-6 brews/day

Kaspar Schulz, Brew Line with Tank Farm, 2015, 35 hl/brew, 4-6 brews/day

Description

  1. Overview
    1. Kaspar Schultz brew line with tank farm
    2. Capacity: 35 hl per brew, 4-6 brews per day
    3. Equipment first installed in 2015 to 2016
    4. Brew line control system: MW control system with SCADA
    5. Complete brew line consisting of German Kaspar Schultz made craft beer brewblock from 1997 with two copper cladded combi functional brew vessels, together with some Nordhause made CCTs and BBTs also from 1997, which all were first installed to this brew line in 2015 with additional vessels made by Spectac
    6. Very modern and versatile packing lines are part of this offer
    7. In 2016, new fully automated brewing control system with SCADA was installed along with CIP line and beer filtration block

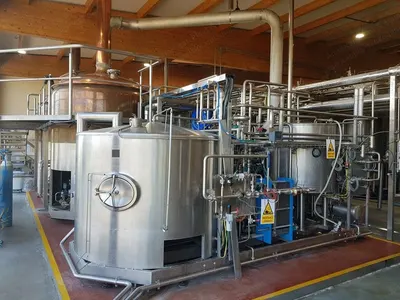

  2. Main Equipment Brew Line
    1. Dry malt mill Sayer with hopper and discharge valve, year 2015
    2. Mash conversion vessel 35 hl, Spectac 2015
    3. Lauter tun 35 hl, Kaspar Schultz 1997 with spent grain discharge, first installed in 2017
    4. Mash tun with internal heater 35 hl, Kaspar Schultz 1997, first installed in 2015
    5. Wort kettle 35 hl, Kaspar Schultz 1997, first installed in 2015
    6. Holding buffer tanks, 2 pieces
    7. Hop dosing tanks, 2 pieces
    8. Hot water tank 50 hl, steam heated Spectac 2015
    9. CIP line with air dosing unit, Matrix Proclean 3R2 SA with 3 x 2000 liter tanks
    10. ATV beer filtration block with 3 x 0.4 micron housing filters, flow meter and pump
    11. Ice chiller system Mycload with 10 ton ice bank for crash cooling
    12. Glycol chiller Hitema for chilling beer tanks

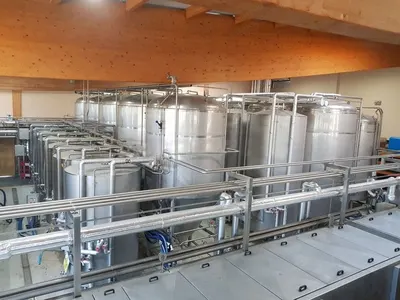

  3. Tank Farm Equipment
    1. 5 x 73.5 hl glycol cooled, cylindroconical over pressure fermentation tanks, Spectac 2015
    2. 6 x 35 hl glycol cooled, cylindroconical over pressure fermentation tanks, Nordhause 1997
    3. 5 x 75 hl glycol cooled, over pressure bright beer tanks, Spectac 2015
    4. 5 x 14.5 hl glycol cooled, over pressure bright beer tanks, Spectac 2015
    5. 2 x 7.5 hl glycol cooled, over pressure bright beer tanks, Spectac 2015
    6. 1 x 190 hl glycol cooled, over pressure bright beer tanks, Spectac 2015
    7. 6 x 35 hl glycol cooled, over pressure bright beer tanks, Nordhouse 1997
