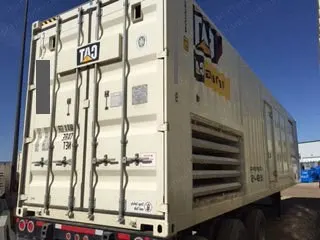

Caterpillar, XQ1475G, 2012, 1475 kW, 50/60 Hz, 400/480 V

Caterpillar, XQ1475G, 2012, 1475 kW, 50/60 Hz, 400/480 V

Description

  1. Overview
    1. Caterpillar XQ1475G natural gas power modules
    2. Rated 1475 kW continuous
    3. Dual frequency: 50/60 Hz
    4. 400/480 V
    5. Year 2012
    6. Hours: 10461, 12692 and 14836 since new
    7. 50/60 Hz switchable
  2. Fuel And Emissions Strategy
    1. Meets most worldwide emissions requirements down to 500 mg/Nm³ NOx level without after treatment (contact factory for applications requiring 0.5 g/hp-hr performance)
  3. Worldwide Product Support
    1. Caterpillar dealers provide extensive post sale support including maintenance and repair agreements
    2. Supported 100% by the Caterpillar dealer with warranty on parts and labor
  4. Caterpillar G3516C Island Mode Gas Engine
    1. Compact, four-stroke-cycle gas engine provides exceptional dependability, fuel economy and power density
    2. Robust kilowatt based air to fuel ratio control system yields enhanced system performance
    3. Designed for maximum performance on low pressure pipeline natural gas of 3-7 psi (0.21 kg/cm² - 0.49 kg/cm²) to the container with a methane number range of 55-100 (contact factory for methane numbers less than 55)
    4. Island mode feature improves engine’s capability to handle electrical loading and unloading
  5. Reduced Environmental Impact
    1. 110% spill containment of onboard engine fluids
    2. Positive crankcase fumes ventilation
  6. Cooling System
    1. Horizontally mounted radiator with vertical discharge
    2. Sized compatible to rating with energy efficient electric drive fan and core
    3. Provides 40°C (104°F) ambient capability with 500 mg/Nm³ NOx (1 g/hp-hr) at 100% continuous rating before derate
    4. Variable frequency drive fan controls improve partial load fuel consumption
  7. Caterpillar Generator
    1. Caterpillar SR4B 826 frame generator designed to match the performance and output characteristics of the Caterpillar gas engine
    2. Double bearing, wye-connected, static regulated, brushless, permanent magnet excited
  8. On Package Control Panel System
    1. Provides auto paralleling using package mounted controls
    2. EMCP 4.2 offers engine and generator monitoring and protection
    3. PL1000E controller
    4. Engine advisor panel
    5. AGC-4 provides paralleling, load sharing, VFD control, and primary generator protection
    6. Intertie protection provided via utility grade Basler BE1-11I utility multi-function relay (UMR)
  9. Digital Voltage Regulator (Caterpillar DVR)
    1. Three-phase sensing with adjustable volts-per-hertz regulation
    2. Provides precise control and constant voltage in the normal operating range
  10. Sound Attenuated Container
    1. Provides 9-high stack CSC rated enclosure for ease of transportation and protection
    2. Meets 72 dB(A) at 15 meters or below per SAE J1074 measurement procedure at continuous rating
  11. Factory Installed Standard Equipment
    1. Engine
      1. Caterpillar G3516C island mode gas engine (operates on 31.5 to 47.2 MJ/Nm³ (800 to 1200 BTU/ft³) dry pipeline natural gas)
      2. Caterpillar engine advisor panel provides engine diagnostics and full text descriptions
      3. Caterpillar gas engine control module (Caterpillar GECM) includes electronic speed governor with hydrax actuator and provides transient richening and turbo bypass control
      4. Electronic ignition system (controlled by ECM)
      5. Individual cylinder detonation sensitive timing (DST)
      6. Engine installed electronic fuel metering valve
      7. Hydraulic actuated throttle plate electronically controlled by ECM
      8. Heavy duty, single element canister type air cleaner with service indicator
      9. Charging alternator, 60-amp
      10. Dual 24V electric starting motors
      11. Integral lube oil cooler, lube oil pump, oil filter, filler, and dipstick and oil drain lines routed to engine rail prelube pump, 24VDC continuous type
      12. Jacket water heater, 9 kW, 400/480 V, 50/60 Hz, 3-phase with isolation valves
    2. Generator
      1. Double bearing SR-4B brushless, form wound, permanent magnet excited, three-phase with Caterpillar digital voltage regulator (Caterpillar DVR), space heater, 6-lead design, class H insulation operating at class F temperature for extended life, winding temperature detectors and anti-condensation space heaters (120/240 V, 1.2 kW)
      2. Generator equipped with system 4 insulation protection
    3. Containerized Module
      1. 40' ISO high cube container, 9-high stack CSC certified
      2. Four (4) sound attenuated air intake louvers and 3 lockable personnel doors with panic release
      3. Interior walls and ceilings insulated with 100 mm of acoustic paneling
      4. Floor of container is undercoated for corrosion protection
      5. Side bus bar access door, external access load connection bus bars
      6. Shore power connection via distribution block connections for jacket water heater, battery charger, generator space heaters, and generator condensate heaters
      7. Six (6) DC lights
      8. 3" ANSI flange customer fuel connection with cover to prevent vandalism
      9. Energized-to-run (ETR) shutoff valve (double solenoid, low/high pressure switch, CSA/FM approved)
      10. Caterpillar brand fuel filter, wall mounted and gas pressure regulator
      11. Lube oil level regulator with makeup tank
      12. Sound attenuated 72 dB(A) @ 15 m (50 ft)
      13. Four (4) oversized maintenance-free batteries, battery rack and 20-amp battery charger
      14. Critical grade exhaust silencer with vertical discharge and single 2 m (6.5 ft.) stack
      15. Vibration isolators, stainless steel fastening hardware and hinges
      16. External drain access to standard fluids
      17. One 4.5 kg (10 lb) carbon dioxide fire extinguisher
      18. Standard Caterpillar rental decals and painted standard Caterpillar power module white
      19. LH and RH engine service panels integrated into container side walls
      20. 110% spill containment system for on-board engine fluids
    4. Cooling
      1. Standard cooling provides 40°C (104°F) ambient capability with 500 mg/Nm³ NOx at 100% continuous horizontally mounted radiator with vertical air discharge
      2. Variable frequency drive (VFD) for optimal partial load fuel consumption
    5. Generator Controls And Protection
      1. Controls provide auto paralleling AGC-4 controller, CAN-bus, Ethernet comm, PWM and analog outputs, legacy analog load sharing; includes PL1000E gas engine advisor panel for operational/diagnostic information; cabinet houses shore power transformer, distribution, protection, and internal/external power selector switch
      2. EMCP 4.2 genset mounted controller
      3. Automatic start/stop with cool down timer
      4. Generator protection features: 25, 32, 40, 46, 47, 50/51, 27/59, 81 O/U
      5. Reverse compatibility for interface to legacy power modules
      6. 3200A IEC rated generator circuit breaker with LSIG trip unit w/ammeter
      7. Multi-mode operation (island, multi-island and utility parallel), load sharing (multi-unit only)
      8. Manual and automatic paralleling capability
      9. Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchroscope
      10. Basler BE1-11I is IEEE1547-2003 compliant in most applications
    6. Quality
      1. Factory testing of standard generator set and complete power module
