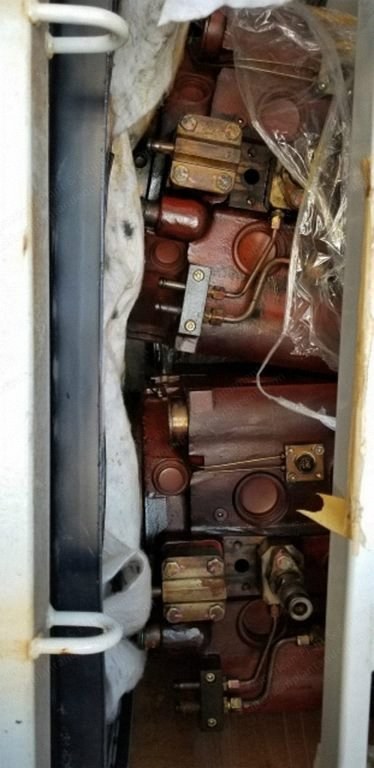

Wartsila, W18V32, 2001, 7290kW, 60Hz, 13800V

Wartsila, W18V32, 2001, 7290kW, 60Hz, 13800V

Description

  1. Overview
    1. Dismantling year: May 2017
    2. Operation hours: approx. 22,000 hours

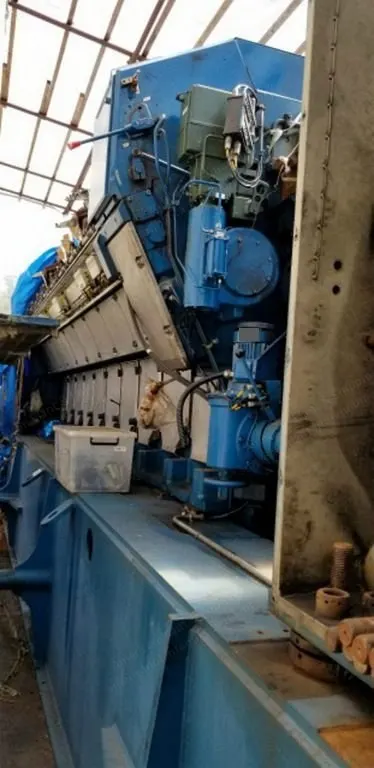

  2. Engine
    1. Brand: Wartsila
    2. Year: 2001
    3. Model: W18V32
    4. Nominal output: 7290 kW
    5. Rpm: 720
    6. Rotation direction: clockwise
    7. Engine type: stationary engine
    8. Number of cylinders: 18
    9. Crankpin diameter: 310 mm
  3. Generator
    1. Brand: ABB
    2. Year: 2001
    3. Type: synchronous
    4. Model: AMG1120MR10
    5. Current: 369 A
    6. Voltage: 13800 V
    7. Output: 8813 kVA
    8. Frequency: 60 Hz
    9. Power factor: 80%
    10. Excitation voltage: 65 V
    11. Excitation current: 8.6 A
    12. Excitation rated output: 47 kW
    13. Ambient temperature: 50 degrees
    14. Ingress protection: IP 23
    15. Cooling method: IC0A1
    16. Standard: IEC34-1
    17. Insulation class: F
    18. Weight: 29,800 kg
  4. Fuel
    1. MDF
  5. Operation Hours
    1. No. 1: 21,280 hours
    2. No. 2: 21,121 hours
    3. No. 3: 21,054 hours
    4. No. 4: 21,062 hours
    5. No. 5: 21,124 hours
