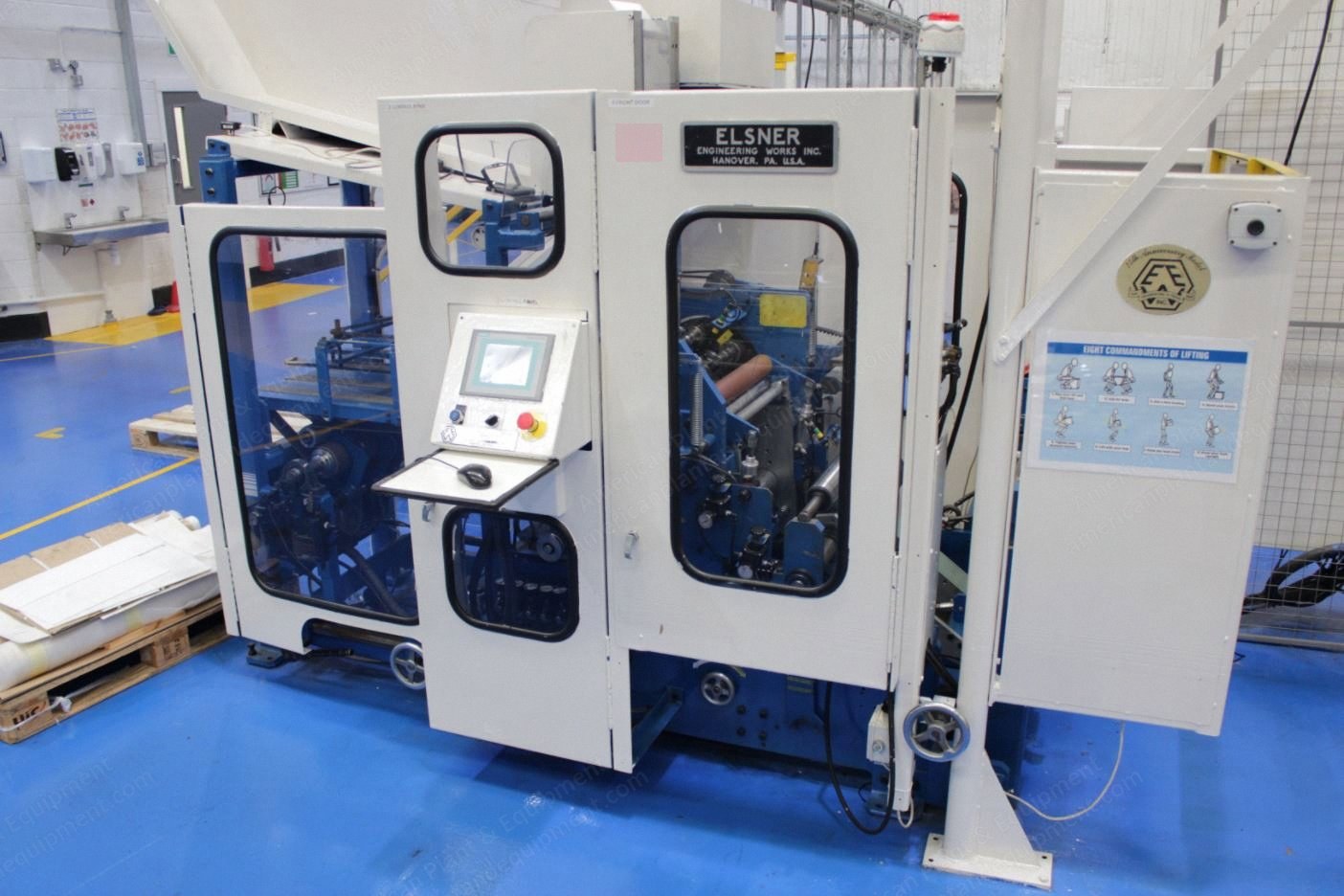

Elsner, AFR-18, 2009, Film, Foil and Paper Rewinder, 18 inch Max Width, 48 rolls/min

Elsner, AFR-18, 2009, Film, Foil and Paper Rewinder, 18 inch Max Width, 48 rolls/min Sold

Description

  1. Overview
    1. Elsner afr-18 film, foil and paper rewinder
    2. For producing consumer small sized rolls for household
    3. Year 2009

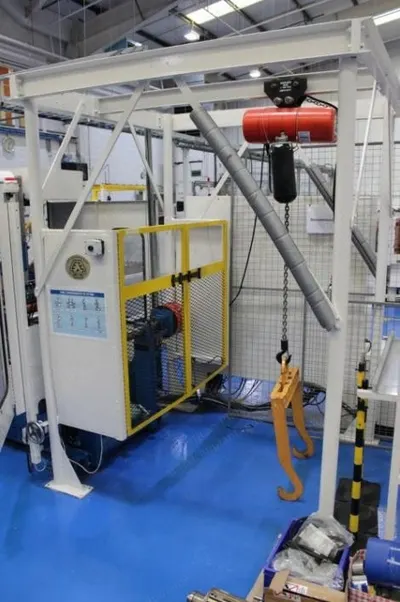

    4. With floor mounted gantry/electric chain hoist
  2. Specifications
    1. Product width 12" and 24" (305 mm and 610 mm)
    2. Cut-off knife with infinite lengths up to 4.75" (120 mm) diameter product
    3. Produces 12-inch and 18-inch (305 and 457 mm) roll widths
    4. Production speeds up to 48 rolls per minute or 3,000 feet (915 m) per minute
    5. Standard machine core od sizes range from 1.25 to 1.75 inches (32.0 to 44.5 mm)
    6. Cut length is infinitely adjustable from 16 feet to 500 feet (5 to 152 m)
    7. Maximum finished roll diameter of 3-inches (76 mm)
  3. Technology and Controls
    1. Multi-purpose turret rewinder is servo controlled and easily adjustable while running
    2. Servo drive technology provides precise monitoring, synchronization and operation
    3. Operator controls and settings are easily engaged from an ergonomically designed touch screen featuring a bright, user-friendly display
    4. Plc provides built in settings for various films and foils and automatically controls the production process
    5. A fault history readout and machine diagnostics are also provided via the display
    6. Automatic tension control closely monitors the product and interfaces with the variable speed belt-driven unwind to maintain proper web tension
  4. Included and Options

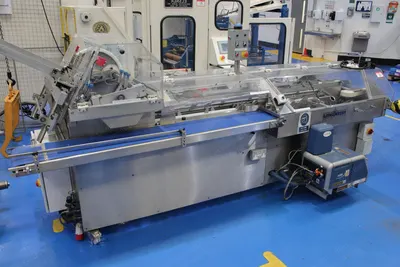

    1. A product delivery conveyor is standard
    2. Various roll closure options are available to meet customer requirements such as a food film tail finder that changes the texture of the product at the end of the roll to make it visible to the end user
    3. Also offered is an automatic aluminum foil tape, a label closure, or a hot melt glue closure system
  5. Condition
    1. The updated elsner afr-18 high speed rewinder produces consumer size rolls of aluminum foil, food film, and baking paper at the fastest production speed in the industry
    2. The faster speed offers a substantial cost savings to manufacturers and converters for added profits
