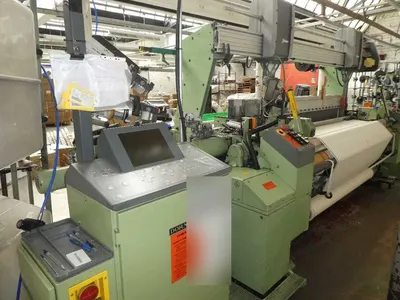

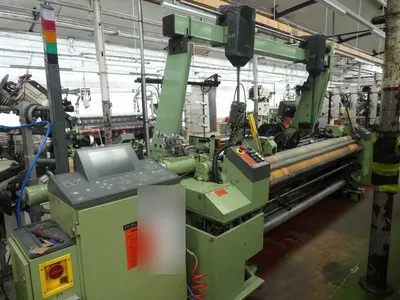

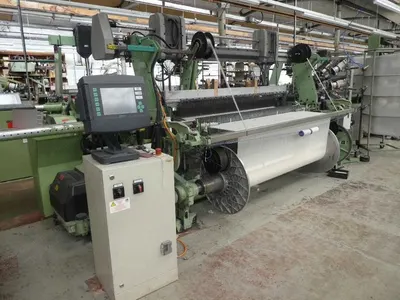

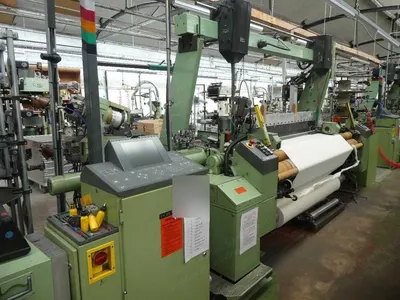

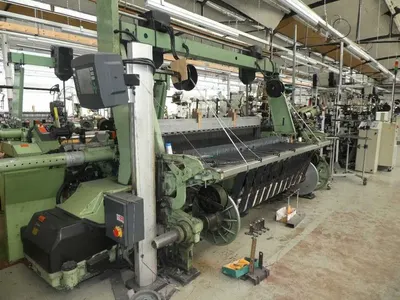

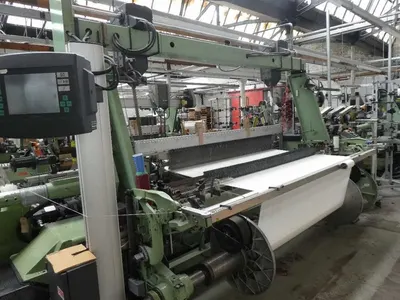

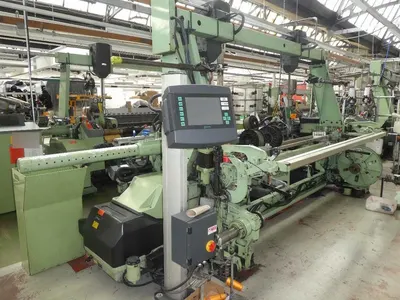

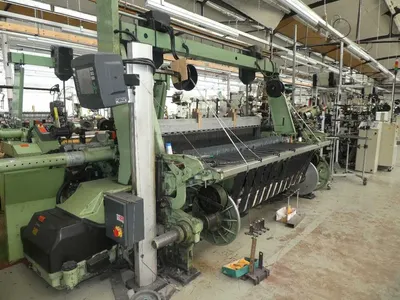

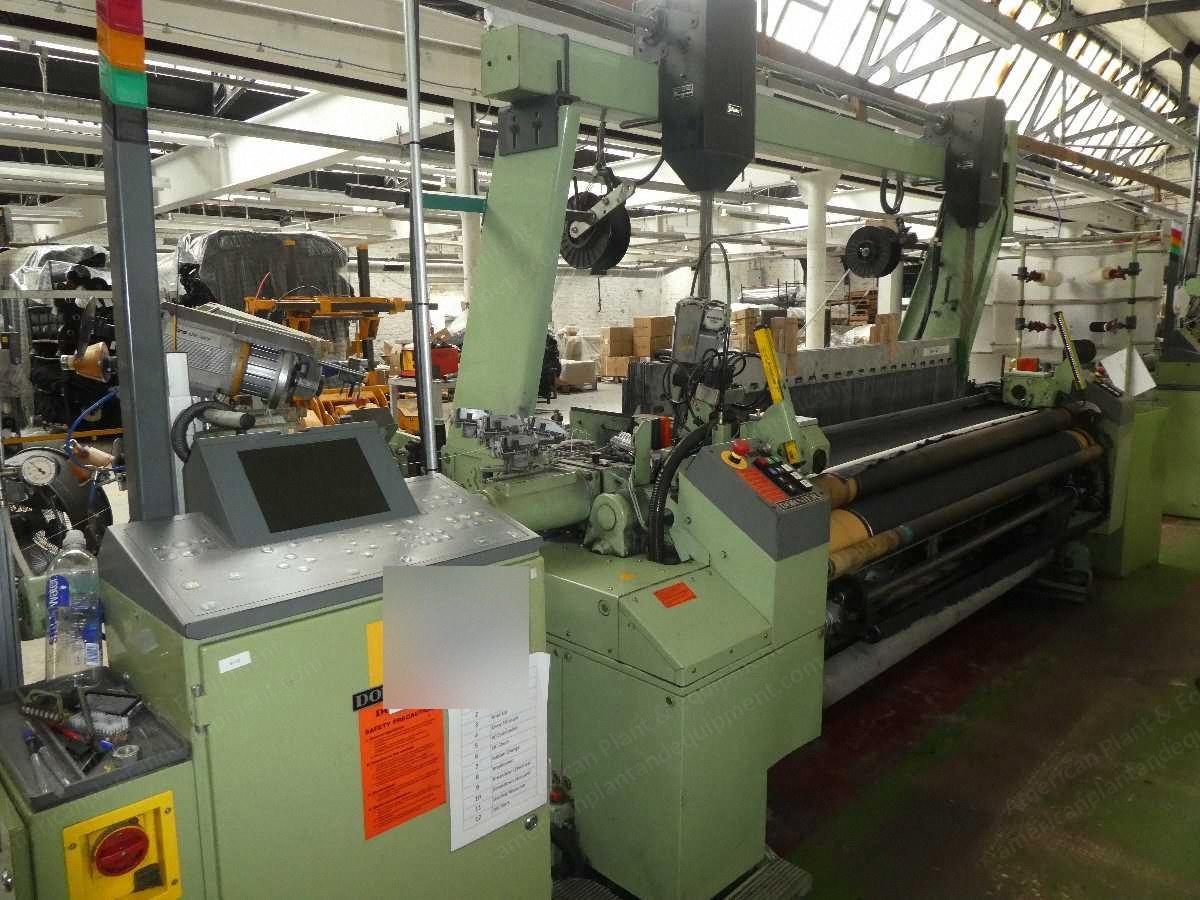

Dornier, PTV 6S, 2002, Rapier Loom, 2200mm Working Width, 6 Colors, Staubli 2670 Dobby

Dornier, PTV 6S, 2002, Rapier Loom, 2200mm Working Width, 6 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Brand: Dornier
    2. Type: PT4 6S
    3. Year: 2002
    4. Working width: 2200 mm
    5. Weft insertion: Rapier
    6. Weft colors (max): 6
    7. With selvedge jacquard
  2. Weft And Selvedge
    1. Accumulators: 6
    2. Cone stand: 2
    3. Selvedge jacquards: Staubli CX 170 64 A / Staubli CX 160 72 A
    4. Selvedge type: Name edge with tucking units
    5. Selvedge waste bin: 1
  3. Dobby And Shedding
    1. Dobby model and type: Staubli 2670
    2. Installed under motions: 1 x 26 shafts, 2 x 22 shafts, 1 x 18 shafts
    3. Frames supplied: 15 shafts min (more if available at factory)
    4. Dropper bars: 5
  4. Take-Up And Let-Off
    1. Loom take-up: Electrical
    2. Loom let-off: Electrical
  5. Beams And Rollers
    1. Warp beams: 1.5
    2. Cloth rollers: 1.5
  6. Accessories And Spares
    1. Heddles: As on looms
    2. Droppers: As on looms
    3. Spares: Some
    4. Spare parts: All related spare parts and accessories available in the factory
    5. Manuals: All manuals available in the factory
  7. Electrical Supply
    1. 3 phase 380-440 V, 50 Hz
  8. Current Use And Condition
    1. Currently being used in the production of: Woven apparel fabrics
    2. Status: Still operating and can be seen running
    3. Condition: Complete and in excellent condition
