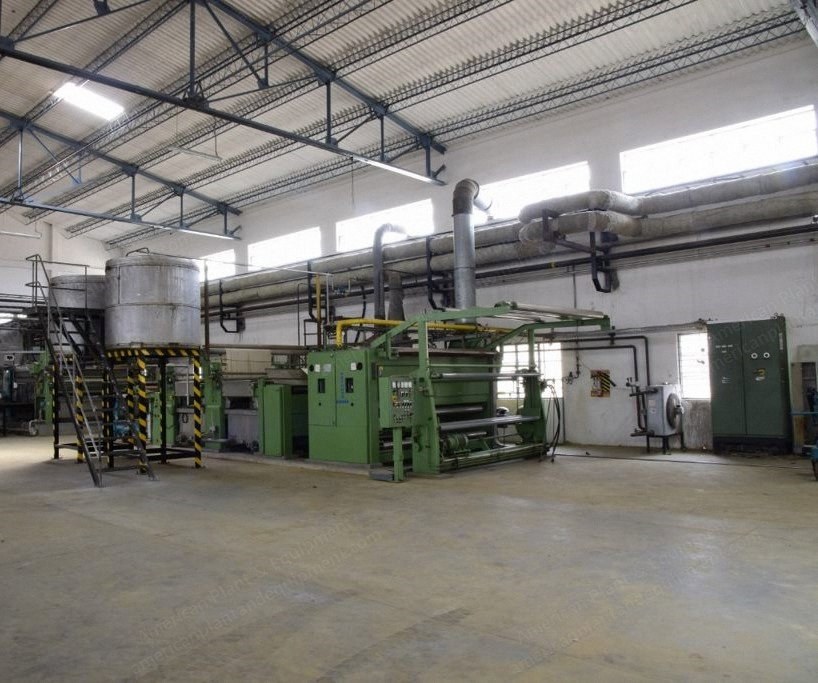

Osthoff, ST 80, 1992, 3200mm Working Width, 2 Burners, 100 m/min

Description

Overview

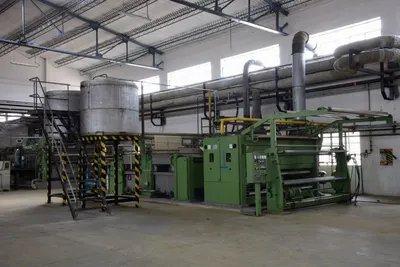

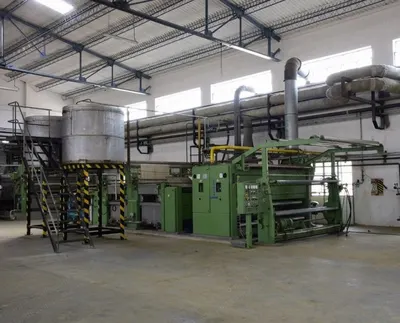

1. Osthoff singeing machine
2. Model: Osthoff - Senge / Walter Osthoff 5600 Wuppertal 11
3. Type: ST 80
4. Year: 1992
5. Upgraded in 2015 (burners were cleaned, copper valves were changed, all cables in the panel board were rewired, all mangles were re-rubberised, two desize baths were changed with new ones, and all pipelines were renewed)
6. After cleaning the burners, the efficiency of the flame was increased
Specifications
1. Working width: 3200 mm
2. Roller width: 3400 mm
3. Kusters bath box, quantity 2
4. Foulyard 2 cylinders
5. Chemicals auto distribution
6. Speed: 100 mtr/min
7. Pilling results on current condition: 3 to 4
8. Exit big roll

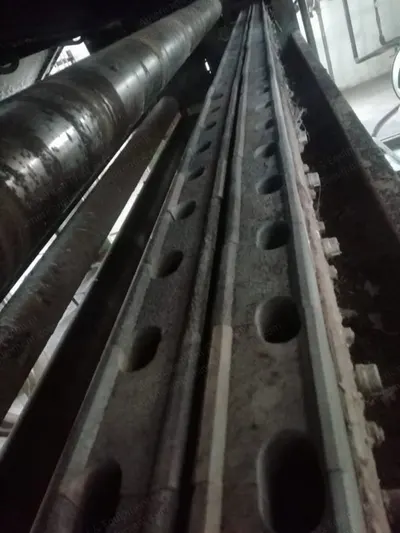

9. The basic singer is equipped with 2 double-jet burners
10. To singe both sides in one pass or one side twice
11. Offering three, two or one singeing position
12. Heating medium: all types of gas
13. Proportional gas-air mixing device
14. Flame intensity adjustable in a wide range
15. Flame width steplessly adjustable
16. Distance flame – fabric steplessly adjustable
Condition
1. Upgraded in 2015 with burner cleaning, copper valve replacement, panel board rewiring, mangle re-rubberising, desize bath replacement, and pipeline renewal
2. Flame efficiency increased after burner cleaning
3. Pilling results on current condition: 3 to 4
Included
1. Two Kusters bath boxes
2. Foulyard 2 cylinders
3. Chemicals auto distribution system
4. Exit big roll
Shipping
1. Requires 1 or 2 containers to ship

Capacity	100 m/min
Upgrades 2015	burners cleaned, copper valves changed, panel board rewired, mangles re-rubberised, two desize baths changed, pipelines renewed

Width	3,400 mm
Working width	3,200 mm
