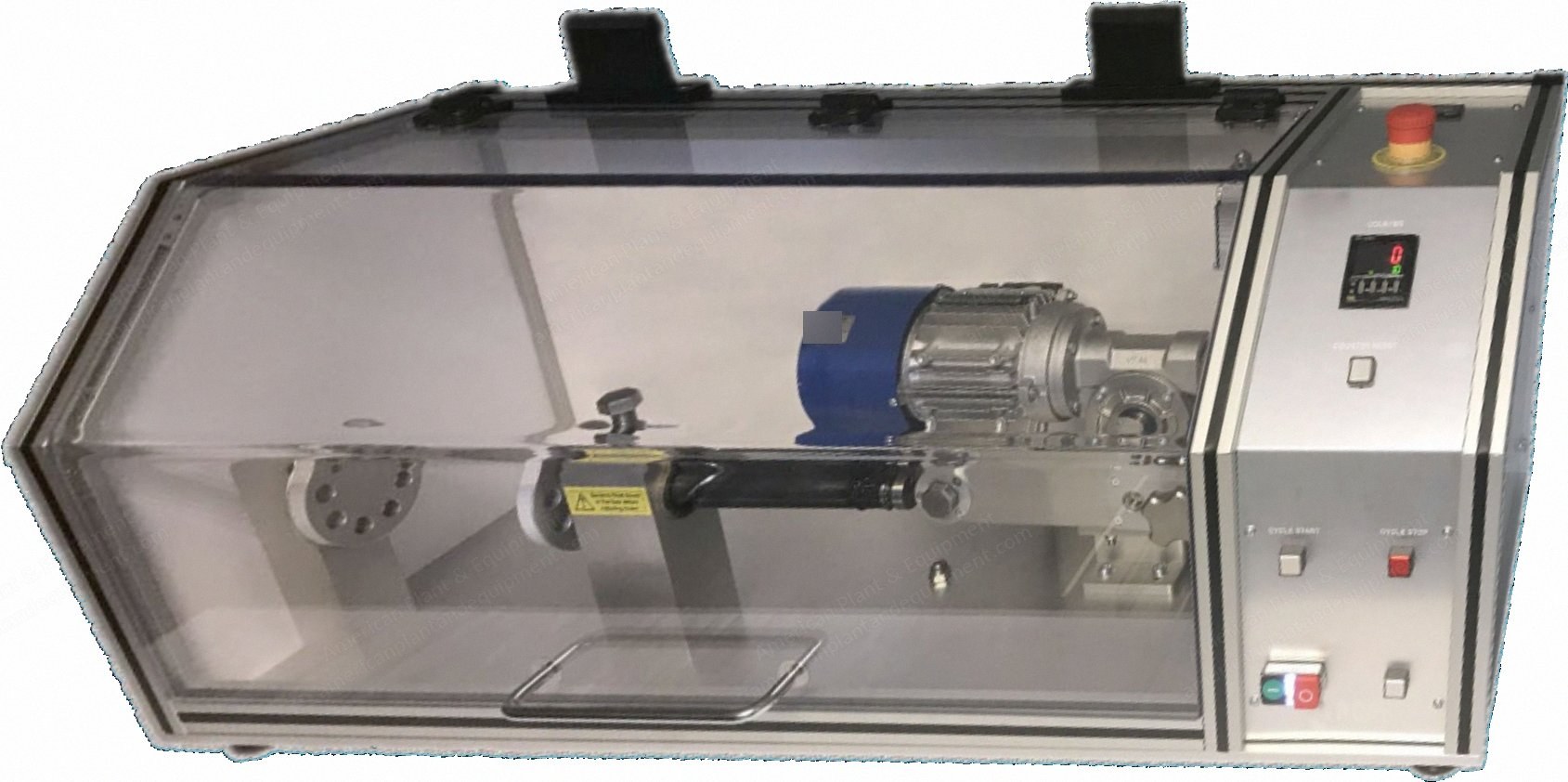

RDM, GF-392, Gelbo Flex Tester, Stroke Distance 80 or 155mm, 45 Cycles per Min (New)

RDM, GF-392, Gelbo Flex Tester, Stroke Distance 80 or 155mm, 45 Cycles per Min

Description

  1. Overview
    1. Gelbo flex tester
    2. Precision engineered for long life and low maintenance
    3. Enables the standard practice for conditioning flexible barrier materials for flex durability to ASTM F392
    4. Microprocessor controlled system with a user controllable pre-set method programmed for ASTM F392
    5. Versatile and very easy to use with only minimal user training needed
    6. Test practices are useful for determining the resistance of flexible packaging materials to flex formed pin hole failures, failures in integrity of one or more plies of a multi-ply structure, and breakdown of barrier properties such as gas or moisture transmission rates
    7. ASTM F392 specifies a variety of conditioning levels, and the unit can be programmed to comply with each method
    8. The sample (200 mm x 280 mm) is attached to the instrument mandrels with two clamps
    9. The instrument then provides a twisting action combined with a horizontal oscillation and the number of cycles are counted
  2. Specifications
    1. Rate of cycles: 45 per min
    2. Standards: ASTM F392 conditioning levels A-E
    3. Stroke distance: 80 or 155 mm
    4. Twisting angle: 400 degrees or 440 degrees
    5. Power: 110 or 230 VAC, 60 or 50 Hz, 700 VAC
    6. Dimension: height 410 x width 1130 x depth 380 mm
    7. Weight: 45 kgs, unpacked
    8. Microprocessor and LCD display
    9. Home position for easy machine set-up
