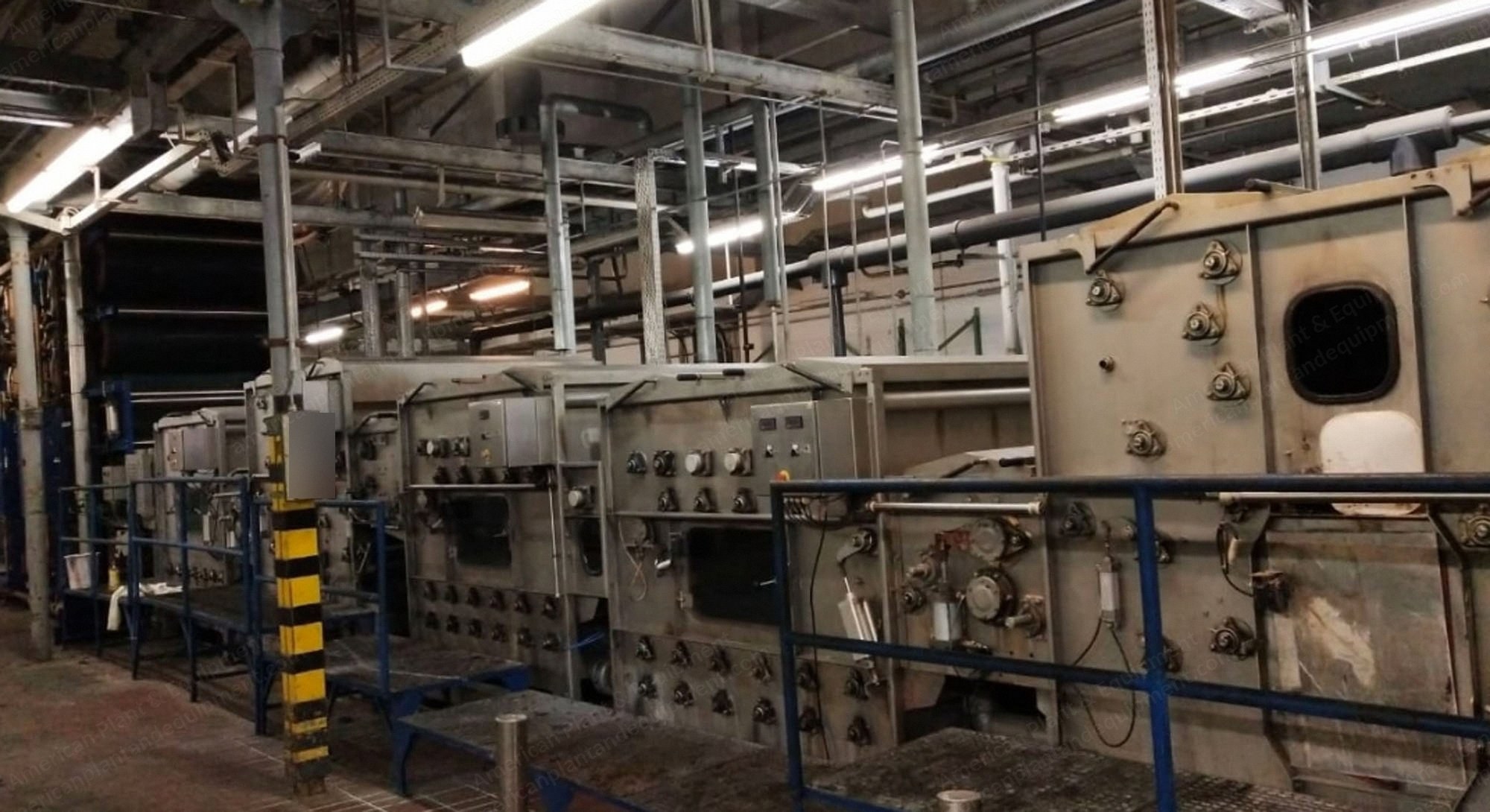

Description Overview Kuster pad steam dyeing range Brand: Kuster Year: 2003 Working width: 1800 mm Fabric Entry and Storage High beam fabric entry with E+L guide roll Kuster fabric storage J scray Dyeing Padder 2 roll Kuster dyeing padder, model 222.557.1800 Liquor trough capacity: 53 liters with indirect water heating Steamer and Air Passage Air passage type 271.35 Steamer type 842.34.1800, steam capacity approximately 80 meters Squeezing roll type 825.65.1800 Washing Compartments 3 multi-rolls washing compartments type Compacta with intermediate squeezing rolls Extraction, suction and cyclone separator 1 open width turbo flash washing compartment type 834.48 Intermediate squeezing rolls 2 multi-rolls washing compartments type Compacta with intermediate squeezing roll Extraction, suction and cyclone separator 1 open width turbo flash washing compartment type 834.48 Intermediate squeezing rolls type 825.65 1 multi-rolls washing compartment type Compacta with intermediate squeezing rolls Heavy Duty Squeeze Padder Heavy duty squeeze padder type 222.65 Drying Cylinders 2 stack drying cylinders, 10 + 8, diameter 770 mm Fabric Storage and Controls Fabric storage for fabric free transportation Moisture control device type AF 110 pH control Exit and Dosing Exit batch frame 1 dye dosing system
