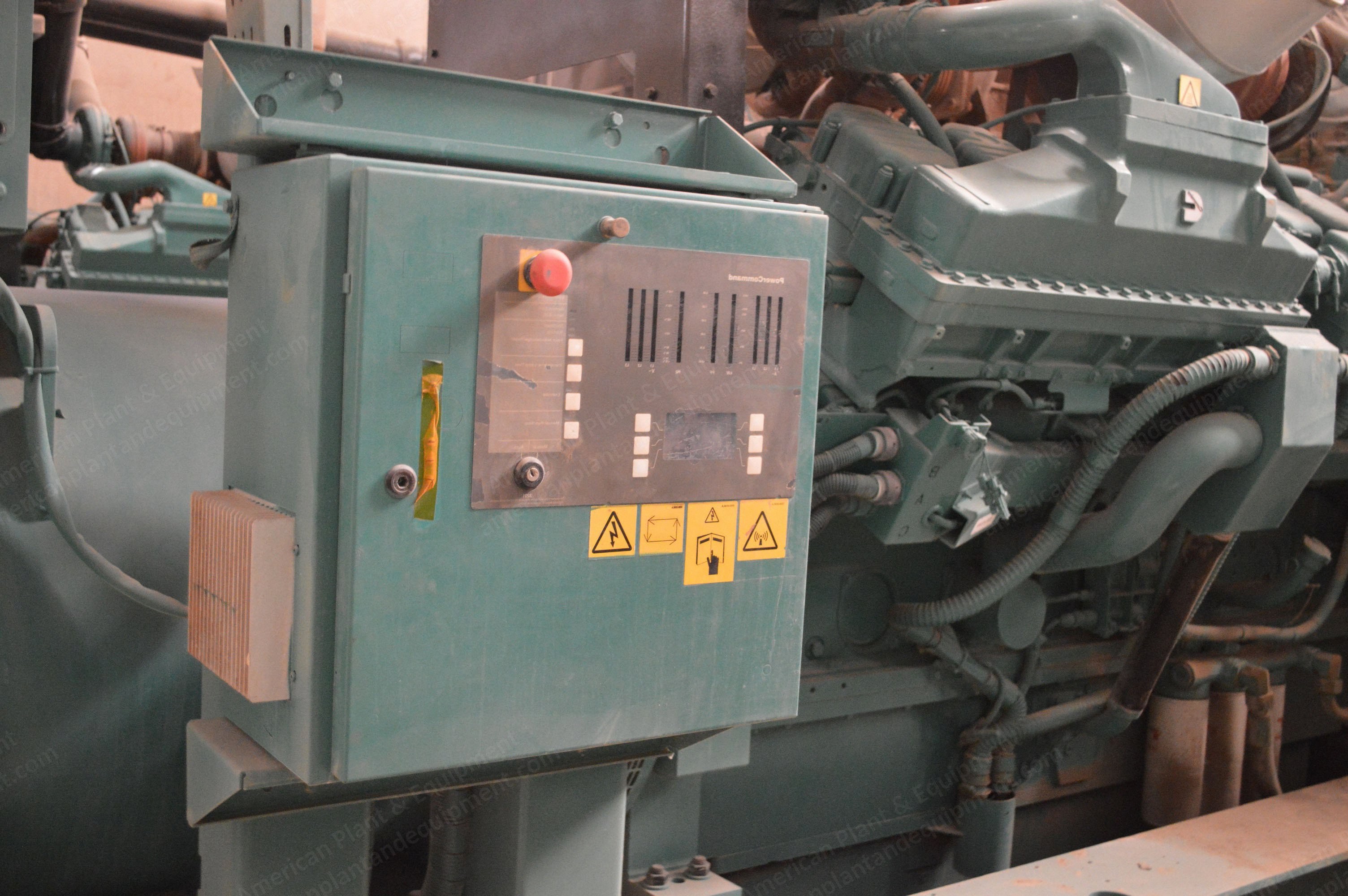

Cummins, QSK60-G4, 2011, 50MW, 50Hz, 25x Gensets

Cummins, QSK60-G4, 2011, 50MW, 50Hz, 25x Gensets

Description

  1. Overview
    1. 50 MW power station that has provided power for a cement factory
    2. The cement factory is now directly connected to the power grid and no longer requires this power station
    3. 2011 model, made by Cummins, in operation until 2017, then in standby mode
  2. Plant Configuration

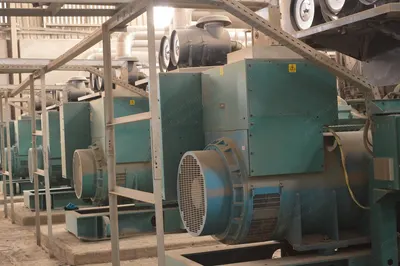

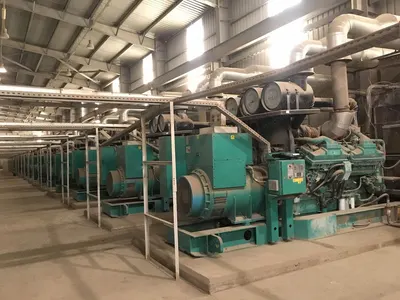

    1. Complete power plant operated by 25 x 2000 kVA diesel gensets
    2. 25 units diesel gensets (Cummins C2250 D5, 50 Hz, 400 V, 1500 rpm – 2000 kVA prime power)
    3. 25 units transformers (ABB / 2 MW – 11000 kV / 400 V)

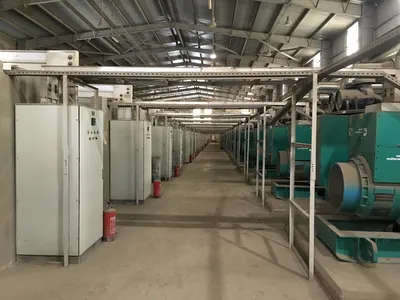

    4. 25 low voltage panels

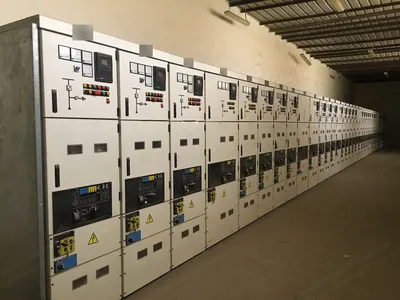

    5. Switchgear panels, SCADA panel, and other panels
    6. 20 fuel tanks (50 ton per tank)
  3. Engine Specifications
    1. Manufacturer: Cummins
    2. Model: QSK60-G4
    3. Nominal output: 2270 bhp @ 1500 rpm
    4. Speed: 1500 rpm
    5. Rotation: clockwise
    6. Radiator: 50 °C
    7. Year of manufacture: 2010 to 2011
  4. Alternator Specifications
    1. Manufacturer: Cummins Power Generation
    2. Model number: C2250 D5
    3. Class: H
    4. Output: 2250 kVA standby / 2000 kVA prime
    5. Frequency: 50 Hz
    6. Voltage: 400 V
    7. Control system: PCC3201
    8. Fuel use: diesel
  5. Operation History
    1. Operating hours: 11000 hours
    2. Quantity: 25 units
  6. Condition
    1. Used and in excellent condition
