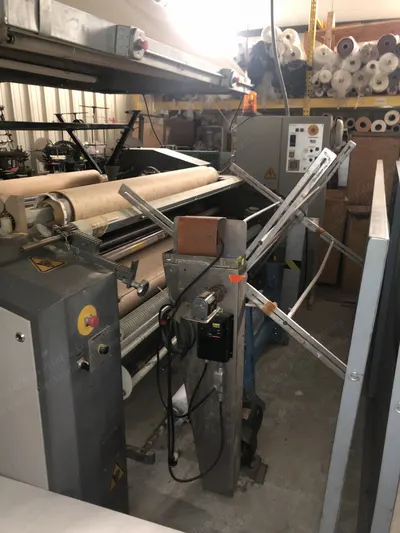

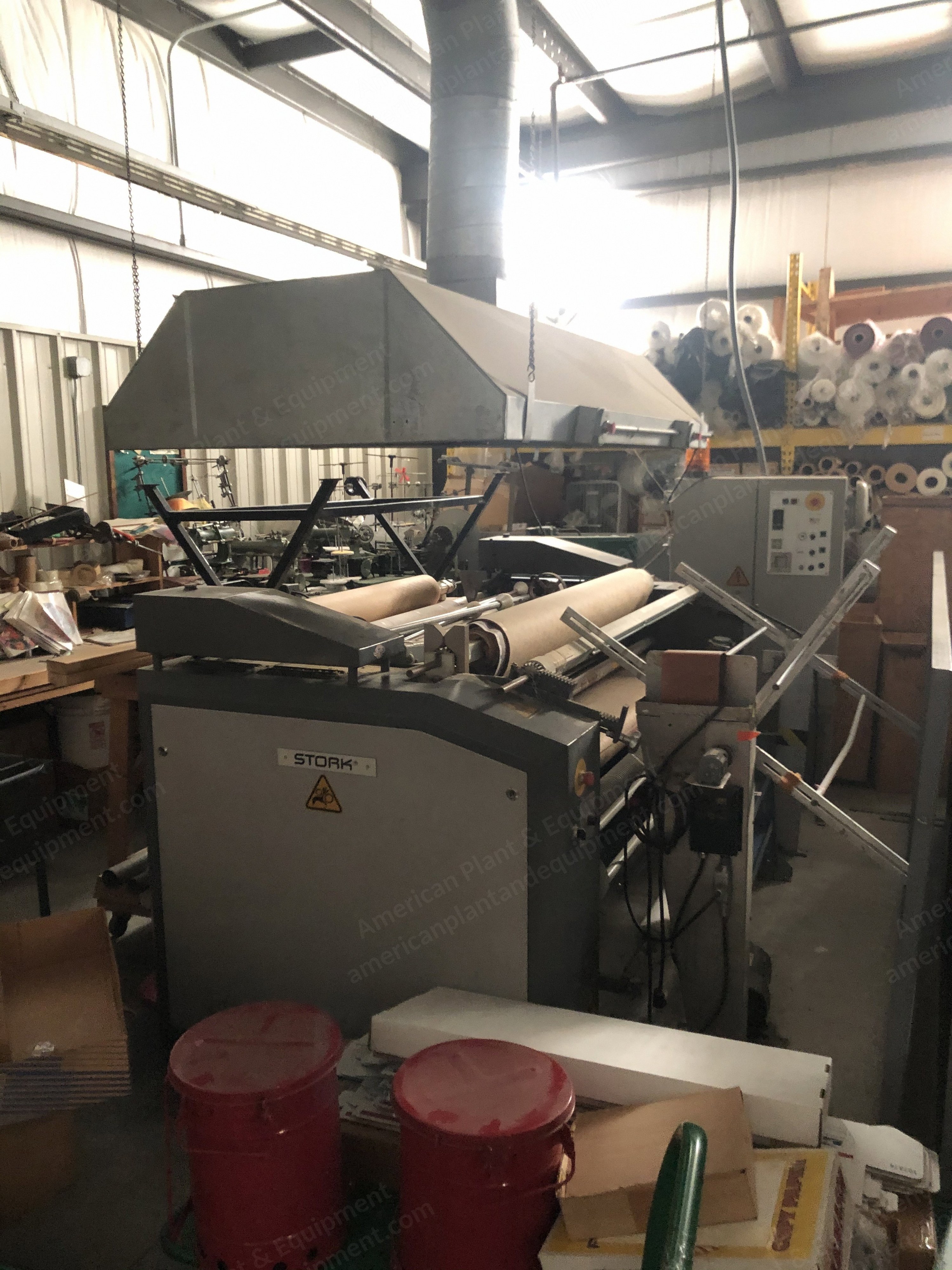

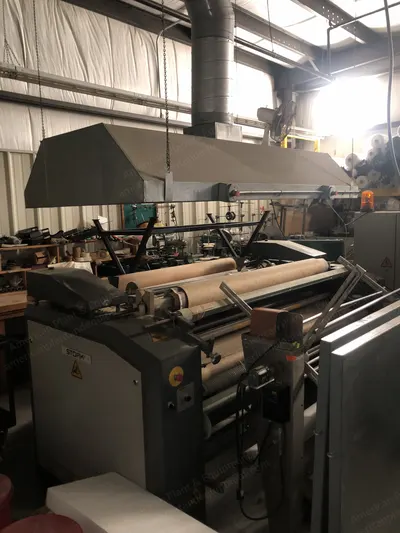

Stork, TC 101/2000, 2000, 1800mm Width, 250mm Roll Diameter, 1.5 kW

Description

Technical Data
1. Type of machine: TC 101/2000
2. Air pressure: max. 6 ato
3. Compressed air consumption: 0.6 nm3/hour
Product Data
1. Textile width: 1800 mm
2. Roll diameter: 250 mm
3. Width of transfer paper: 1820 mm
4. Roll diameter: 250 mm
5. Width of protective paper: 1830 mm
6. Roll diameter: 250 mm
7. Machine speed: min. 0.5 m/min, max. 7 m/min
8. Temperature heating roller: max. 240 °c
9. Max. 1.2 n/cm² (=6 ato)
Electrical Power
1. Main drive: 1.5 kw
2. Expander: 0.37 kw
3. Thermal heating capacity: 27 kw
4. Installed power: 30 kva
5. Electrical specification: 220 v, 60 hz, 3 ph
6. Total thermo oil capacity: 230 l
7. Heating-up time at v = 3 m/min: ca. 2 hours
8. Cooling-down time at v = 6 m/min: ca. 3 hours

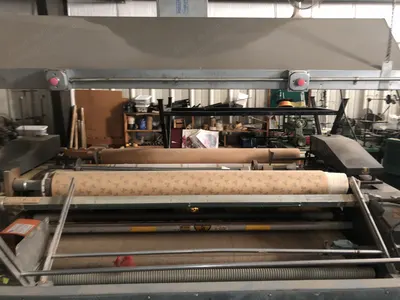

Heating Roller and Blanket
1. Width of the heating roller: 2000 mm
2. Heating roller diameter: 365 mm
3. Length of the blanket: 3720 mm
4. Width of the blanket: 2000 mm
5. Arc of contact of the blanket: 268°
6. Internal core diameter: 70 mm and 76 respectively
7. Textile core diameter: 30 mm
Calender Dimensions
1. Depth: 1485 mm
2. Width: 2730 mm
3. Height: 1320 mm
4. Lateral space: 2000 mm (only on the right, in view of disassembly of the heating elements)
5. Weight: 1950 kg
6. Floor load: 90 n/cm²
Connection Dimensions
1. Electricity: 16 mm² cable
2. For air: gl/4"
3. Connections clamps: 3/8" npt

Capacity	0.5 to 7 m/min
Thermo Oil Capacity	230 L
