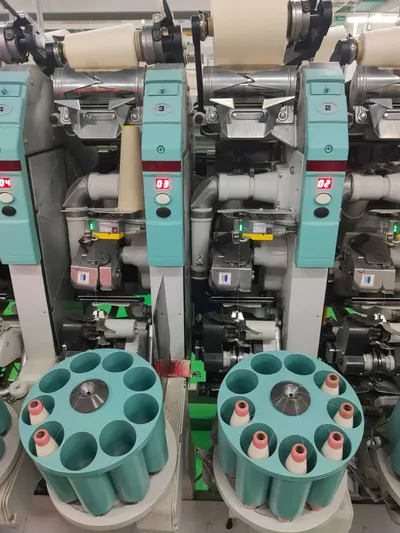

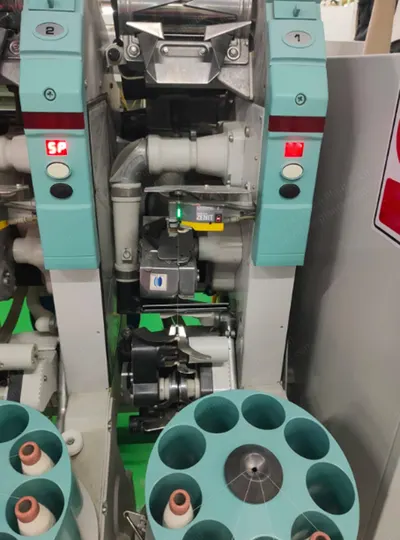

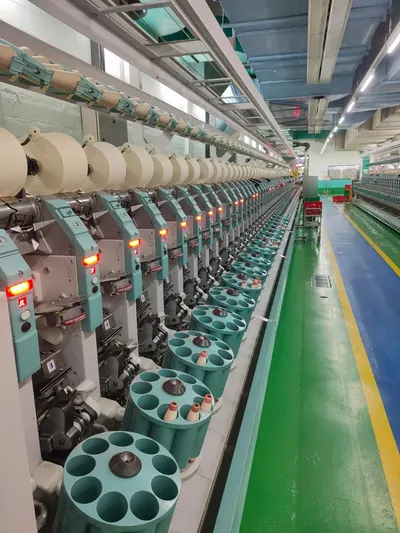

Description Overview Machine with right-hand drive: 1 Machine with left-hand drive: 1 Spindles per machine from 6 to 72, increasing of 2: 64 Take-up packages: conicity 4°20': yes Dimensions (l x nose inn. diameter x base inn. diameter): 170 x 28 x 59 mm Package end-use: weaving/knitting: yes Type of take-up drum (diameter spiral turns, pitch): 94 x 2.5 x p.v. Yarn Specifications Yarn to be processed, composition: 100% compacted cotton Max. count (ne/nm/tex): ne 80/1 Min. count (ne/nm/tex): ne 20/1 Main count range (ne/nm/tex): ne 40/1 Yarn twist direction: z Bobbin and Tube Details Bobbin tube length: 180 ÷ 280 mm: to be confirmed Tube base inner diameter: 15 ÷ 23 mm to be confirmed Tube base inner diameter: 23.1 ÷ 23 mm Bobbin magazine with 9 positions: yes Electronic and Control Features Anti-patterning device on package holder: electronic type Electronic type c.a.p: no Electronic on/off type, with pre-arrangement for caps: yes Axial displacement: no Computer aided metering (c.a.m.): no Electronic counterweight (c.a.d): no Waxing and Yarn Handling Waxing device with wax consumption checking: yes Pre-arrangement for waxing device: - Yarn suction pipe combs: yes Quick adjusting knob on preclearers: yes Protection for abrasive yarns: no Splicer and Clearer Details Air splicer type: 690 (92z2, c5, z22) Additional chamber type: - Additional chamber cover type: - Additional preparators type: - Pre-arrangement for splicer type: twinsplicer Electronic clearers type: uster quantum 3 cfr ff3+pp 1 yes + loepfe zenit b 1 Clearer's sensing head type: imh-cx5f30 yes Doffing and Conveyor Systems Second package doffing carriage (24 ÷ 64 spindles): no Full package conveyor belt to the headstock: yes Soft start package conveyor belt: yes One automatic empty cone feeding: no
