Black Clawson, Poly Re-Claim & Stock Prep System, 16ft and 21ft Hydropulpers, 600 HP

Black Clawson, Poly Re-Claim & Stock Prep System, 16ft and 21ft Hydropulpers, 600 HP Sold

Description

  1. In Plant Support Equipment

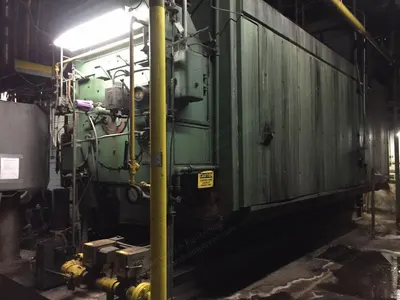

    1. Item 001: Babcock & Wilcox gas fired 60,000 btu boiler, year 1969, including all components and ancillary items.
    2. Item 002: Alfa Laval heat exchanger, year 2013, including all components and ancillary items. Not in production.
    3. Item 003: Alfa Laval CB400-86H heat exchanger, year 2013, including all components and ancillary items.
    4. Item 004: Appleton 60” x 72” core cutter, including all components and ancillary items.
    5. Item 005: Wulftec WLP-150 automatic stretch wrap machine, including 58” d table, 8’ head travel, all components and ancillary items.
    6. Item 006: Orion SW44-12 stretch wrapper, including all components and ancillary items.

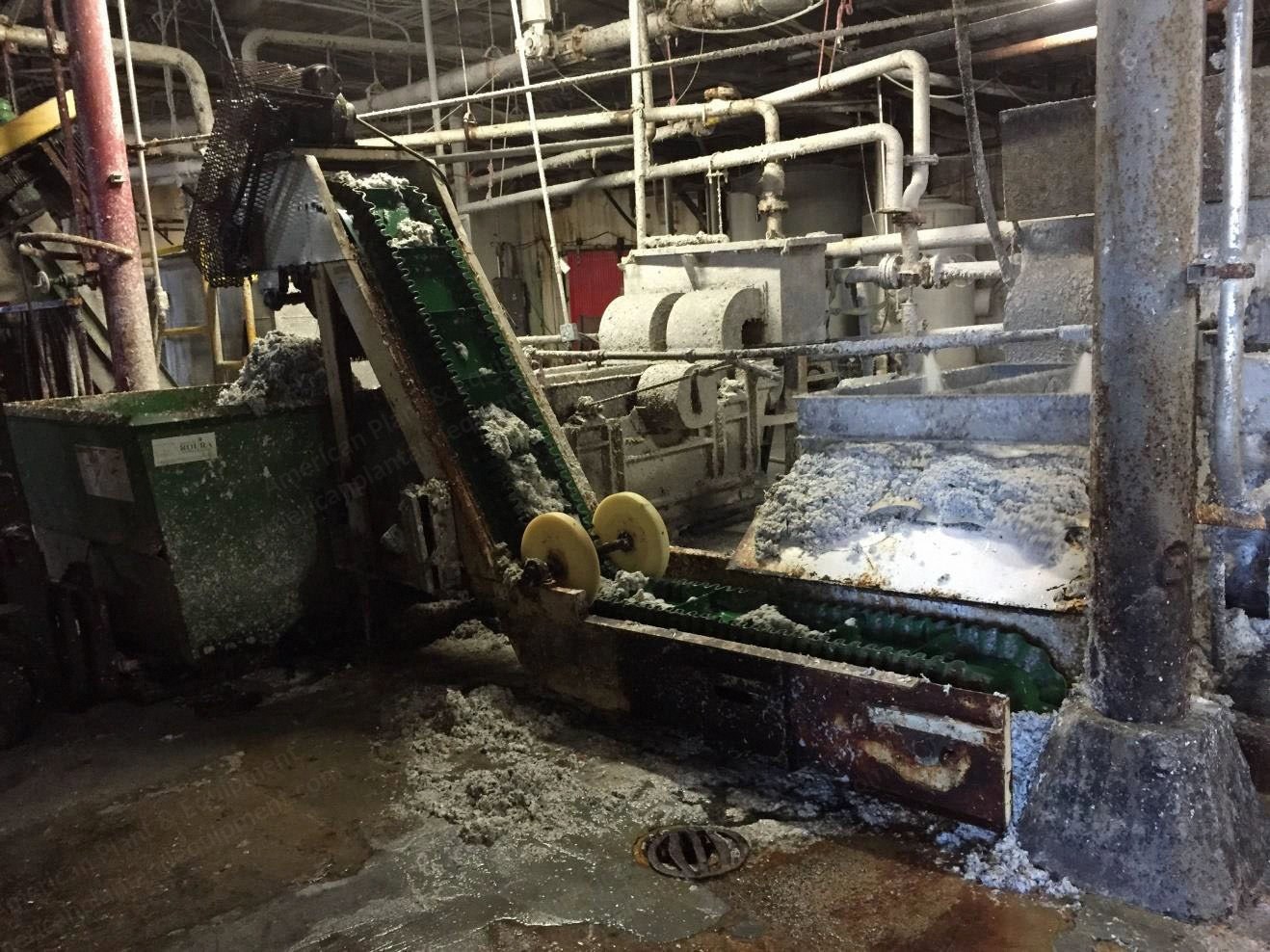

    7. Item 007: Black Clawson poly re-claim & stock prep system, including:

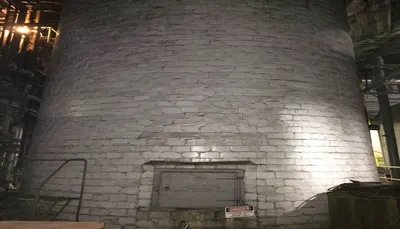

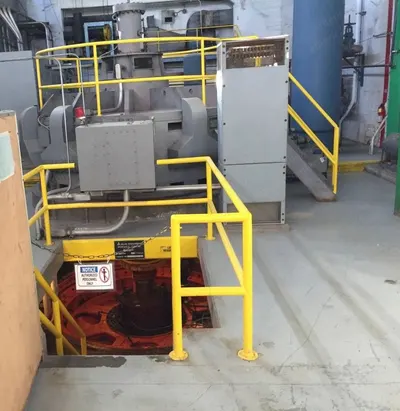

      1. (1) 16’ Black Clawson #3 hydropulper w/ #4 drive - (not in production) 600 hp drive
      2. (1) 21’ Black Clawson #2 hydropulper w/ #4 drive 600 hp drive motor
      3. (1) 21’ Black Clawson #2 hydropulper w/ #4 drive 600 hp drive motor - (dismantled stored in warehouse)
      4. 91.630” tall Midcon high consistency rotor stainless steel tub w/ steam ring
      5. 60” shark rotor w/ 36”h consistency mid feather rotor mid steel tub
      6. (1) Acommon stock pump w/ Reliance 200 hp
      7. W/ (2) pneumatic valves
      8. (2) A14” pneumatic valves
      9. (1) Asingle tank trash chest
      10. (2) Avertical gear box 50 hp agitators w/ 6” trash pump
      11. (1) 10” stock pump
      12. (1) Black Clawson model 4500 “select purge” rotary drum screen w/ stainless steel drum (1/4” holes), 25 rpm
      13. (1) Return water holding chest: rectangular type w/ wheel agitator pump w/ Barnes 45 hp return water pump (submersible)
      14. (1) Poly dewatering press
      15. W/ program control w/ motorized stock feed belt conveyor (to no. 3 pulper)
      16. Andritz sludge press
      17. W/ (2) 25 hp forward/reverse drives & 7’w x 40’ l high density neoprene belt
      18. (1) Hydraulic upender (stock conveyor) unit
      19. (1) 8’ Black Clawson #1 hydropulper -1 ton capacity w/ side wheel Reliance w/200 hp agitator & 75 hp stock pump (not in production)
      20. (1) Return water sump pump, (lot) tile stock chests
      21. (1) Black Clawson model 80 course screen w/ Siemens 60 hp drive
      22. (1) Black Clawson ultra v UV300 primary screen selectifier year: 1994 w/125 psi w/ Reliance 100 hp drive
      23. (1) Black Clawson ultra v UV100 primary screen selectifier year: 1994 w/100 hp drive
      24. (1) Black Clawson mini 50 MS50 mini pressure screen w/ 75 psi (tertiary third screen) w/ 20 hp drive
      25. (1) Ablack Clawson liquid cyclone w/ 75 psi
      26. (2) Adorr-Oliver slant 72” 120 degree DSM screens (2) Bird Johnson 24 vibrating screens
      27. (1) Secondary screen stainless steel feed tank - 8’ d x approx. 12’h w/Warren 20 hp secondary screen feed pump
      28. (1) Third screen stainless steel feed tank - approx. 6’ d x 9’ h w/ Gould 4x6 feed screen pump
      29. (1) Acelli Trommellini stainless steel driven screen year: 1996
      30. (1) Apermutit dissolved air flotation tile clarifier tank w/ skimmer paddles (1-1/2 hp drive)
      31. (2) Aclarifier water pumps
      32. (1) Cement sludge chest w/ sludge pump 7.1/2 hp
      33. (1) Custom made clarifier - 12,000 gallon capacity
      34. (1) Ahlstrom Tassiter screw press (de-watering) w/ Hawker Siddele 13 hp pump & 30 hp Reliance Buffalo blower
      35. (1) Ahydraulic 40 yard capacity compactor w/ air separator & cyclone
      36. (2) Abeloit 26” series 2000 refiners w/ 450 hp drives
      37. (1) A18’ d Krofta super cell sand float SASF -18 clarifier / filter for treating max. of 450 gpm waste water
      38. (25) Goulds water & stock pumps
      39. (7) Warren pumps
      40. (2) Anash 904 R2 vacuum pumps w/350 hp & 500 hp motor
      41. (2) Nash 904 R1 vacuum pumps w/ (2) 200 hp motors
      42. (1) Nash CL 3002 vacuum pump w1450 hp motor ABB 800XA DCS - installed 2011 3” Detroit air blower - year: 2013 all components and ancillary items.
  2. Paper Making

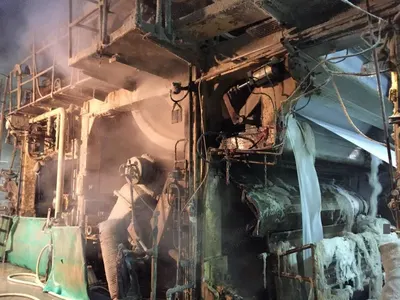

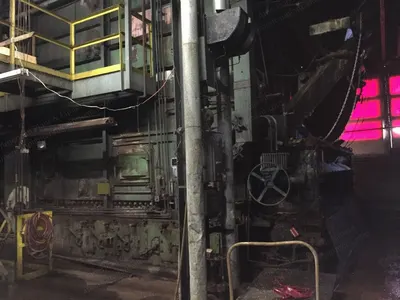

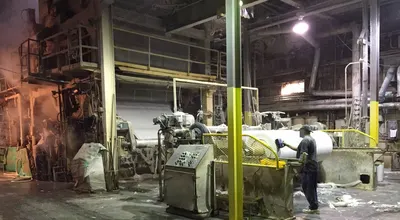

    1. Item 008: Beloit/ Proctor & Gamble 128” tissue paper- machine # 8, year 1960’s, including:

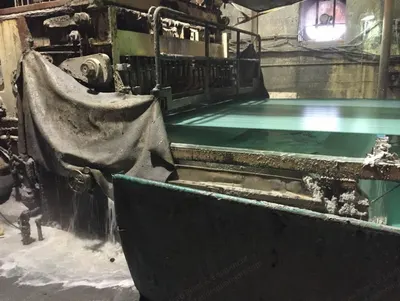

      1. 3,500 fpm fourdrinier
      2. Warren 20 hp stock pump
      3. (1) Tile machine stock chest & Allis Chalmers 20 hp chest agitator
      4. (1) Dilution chest w/ Allis Chalmers 20 hp chest agitator & 20 hp water pump
      5. (1) Magnetic particle trap
      6. (1) Consistency regulator
      7. (1) DeZURIK stock flow control valve
      8. (1) Afan pump 300 hp
      9. (2) Ablack Clawson 24P selectifier screens w/ 20 hp drives w/ vee belt drives
      10. (1) Beloit 140” pressurized headbox w/ (2) rectifier rolls & manual sluice adjustment
      11. (1) Beloit 22.1/8” d x 143.1/2” face suction breast roll
      12. (1) Forming board, (2) single foil blades, (2) suction boxes
      13. (1) 24” d x 140” face rubber covered wire turning-couch roll (#1)
      14. (1) Beloit 28” d x 150” face rubber covered suction pressure roll
      15. (1) Sulzer Escher Wyss 12” d x 145” cast iron Yankee dryer - year: 1989
      16. Premiair ultra hood (Yankee dryer hood), Premiair after dryer - year: 2006 (installed 2012)
      17. (1) Manchester machine horizontal track reel w/ 36” d x 135” face reel drum w/ high pressure water slitting system
      18. (1) Reliance solid state drive system
      19. (1) Jones 3000 450 hp refiner spare press rolls & parts
      20. GL & V clean pac 700 BP-2V cleaners - year: 2006 w/ bank of 14 primary cleaners & bank of 5 secondary cleaners ABB 800 XA drive control system - year: 2011 all components and ancillary items.
  3. Air Handling
    1. Item 010: Atlas Copco ZR-3 200 hp packaged rotary screw air compressor, year 1985, including all components and ancillary items.
    2. Item 011: Atlas Copco ZR-3 200 hp packaged rotary screw air compressor, year 1985, including all components and ancillary items. Not in production.
    3. Item 012: Zurn R110W refrigerated air dryer, year 1978, including all components and ancillary items.
    4. Item 013: Ingersoll Rand R110 Nirvana VSD 150 hp air compressor, year 2014, including all components and ancillary items.
  4. Converting Equipment

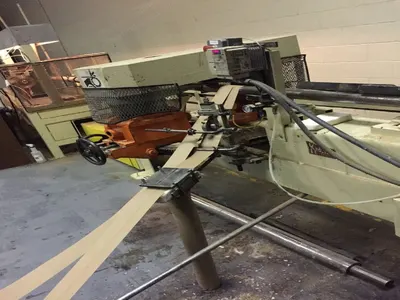

    1. Item 014: Knowlton core machine, all components and ancillary items.
    2. Item 015: Perini 200G core machine, year 1997, including model 203G back stand - glue application unit, all components and ancillary items.

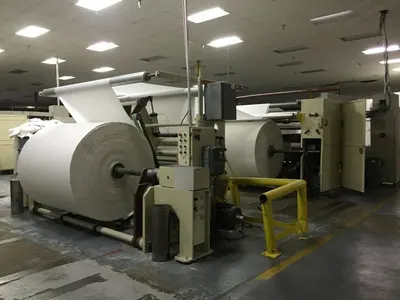

    3. Item 016: Perini 716B106” toilet roll rewinder, year 1998, including:
      1. Log diameters: 3.54” to 5.12”
      2. (2) Perini 716G unwind stands year: 1998
      3. Rubber to steel embossing rolls perforation system
      4. Two lane orbital log saw integrated w/ rewinder Panelmate controller product conveyors
      5. Valley tissue packaging roto-crimp 8450S single roll wrapper - year: 2000, Interpack carton sealer - all components and ancillary items.
    4. Item 017: Baosuo YD-PL400C-2900 112” bathroom tissue rewinder line, year 2020, including:
      1. Kone crane - 4 ton w/hoist
      2. (2) Shaftless unwind stands
      3. Steel to rubber embosser
      4. Core machine - CW100 - year: 2020
      5. Core loader
      6. Tail sealer
      7. Log accumulator -160 buckets
      8. 4 lane log saw
      9. Valley tissue 8450-X-9 single roll wrapper - year: 2000
