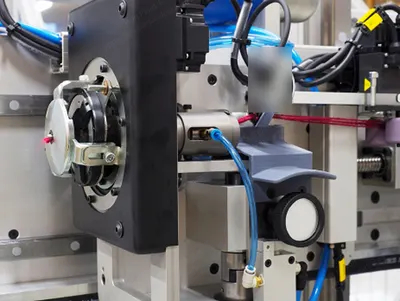

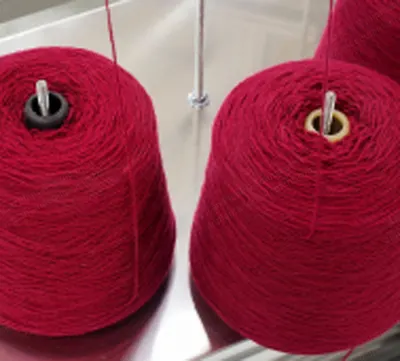

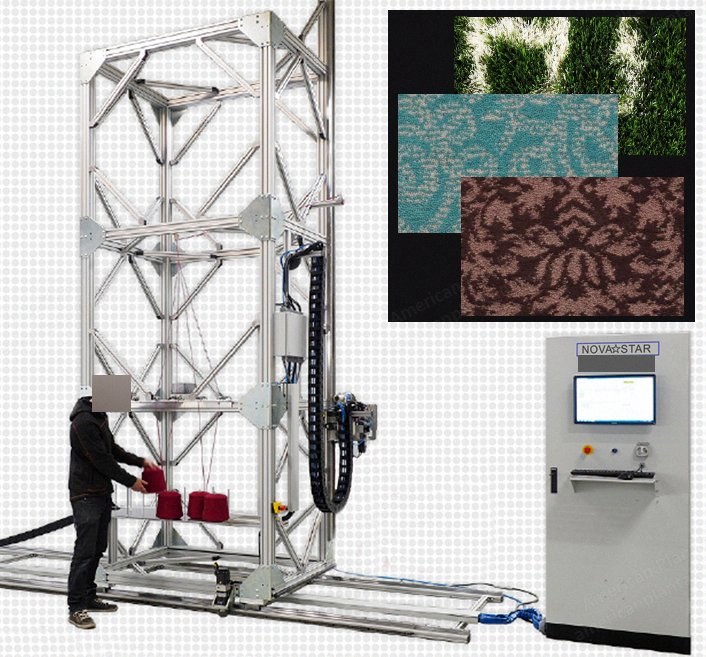

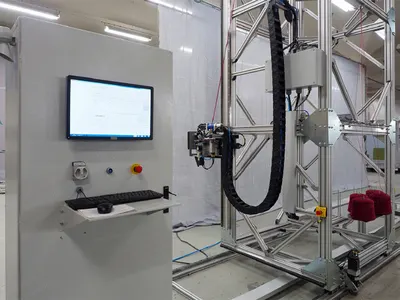

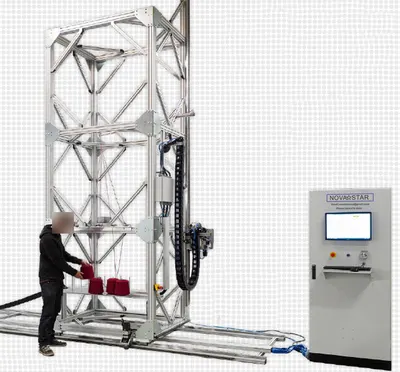

Description Machine Specification Robot available in 3 standard sizes Production area: 9000 x 4000 mm, 6000 x 4000 mm, and 4000 x 3000 mm Control: electric cabinet with PC Tufthead: Novastar Pro-Tuft Frame: 1 movable steel frame, incl. holders Creel: Novastar creel with 6 individual yarn sensors 3D: dynamic pile height device as standard Cut/loop: dynamic cut/loop function as standard (excluding the U.S.) Pile heights: cut pile 12 to 45 mm U-Tuft, 20 to 110 mm J-Tuft; loop pile 4 to 45 mm Outer Demands and Area Requirements Building requirements: robot sizes (length x width x height mm): Star6.2 - 9000 x 4000 mm = 14000 x 4500 x 5000 Star6.2 - 6000 x 4000 mm = 11000 x 4500 x 5000 Star6.2 - 4000 x 3000 mm = 9000 x 4500 x 4000 Electricity: main voltage 400 V, 50 to 60 Hz, neutral-main and earth connection; power 1 kW, max fuse 3 x 16 A Compressed air: air consumption approx. 300 L/min, minimum working pressure 8 bar; recommended basic power of compressor 600 L/min, 10 bar Required Equipment Shearing: shearing machine, vacuum system, pile preparing machine Backing: primary backing fabric; recommended usage of woven polyester 60/60 Software, Education and Training Software: Novastar operator software Novastar design software Novastar Tuft CAD Novastar data analyzer (option) Included Parts and Accessories Novastar robot handtuft TF113 Machine is complete and includes all necessary accessories 10000 x 4400 mm production area 1 PC movable frame 10850 x 5850 mm 2 pcs holders for frames 1 unit creel with 6 sensors 1 PC yarn detector for tufthead 2 set needles, 8 pcs diameter 5 mm, 8 pcs diameter 6 mm 10 pcs blade 2 pcs anvil 1 PC toolkit for tuft unit 1 tool for stretching of backing Blades, 10 pcs Anvil, 2 pcs 1 set feed wheels, 2 pcs Frame 6000 x 4000 mm (6850 x 4850), quantity: 2 Spare part kit, quantity: 1 Novastar Tuft CAD, plug in (requires a license of Corel Draw 2020)
