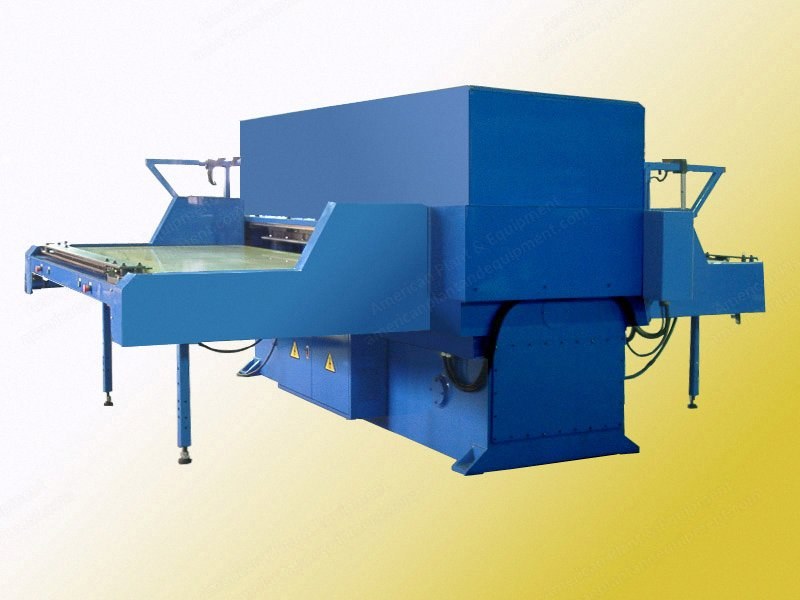

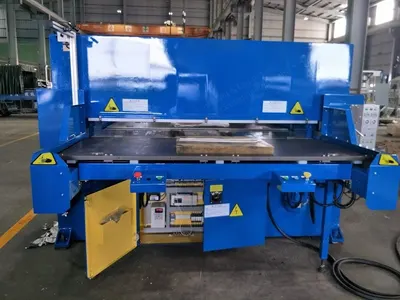

Description Overview Auto balancing hydraulic full head die cutting machine Model: DT144 Cutting force: 60 tons Cutting stroke: 110 mm Main motor: 15 hp Specifications Cutting head: 760 mm deep x 1600 mm wide Effective cutting area: 700 mm deep x 1450 mm wide Open daylight: 50 to 160 mm Two-side motorized sliding table (shuttling table) and die height setting device 2 sets of 25 mm p.p. cutting pad 2 hp frequency converter cushion system 2 sets of 300 mm long type 2 ce photocell in front of each side of the cutting head Full machine simple safety cover
